9
Connections

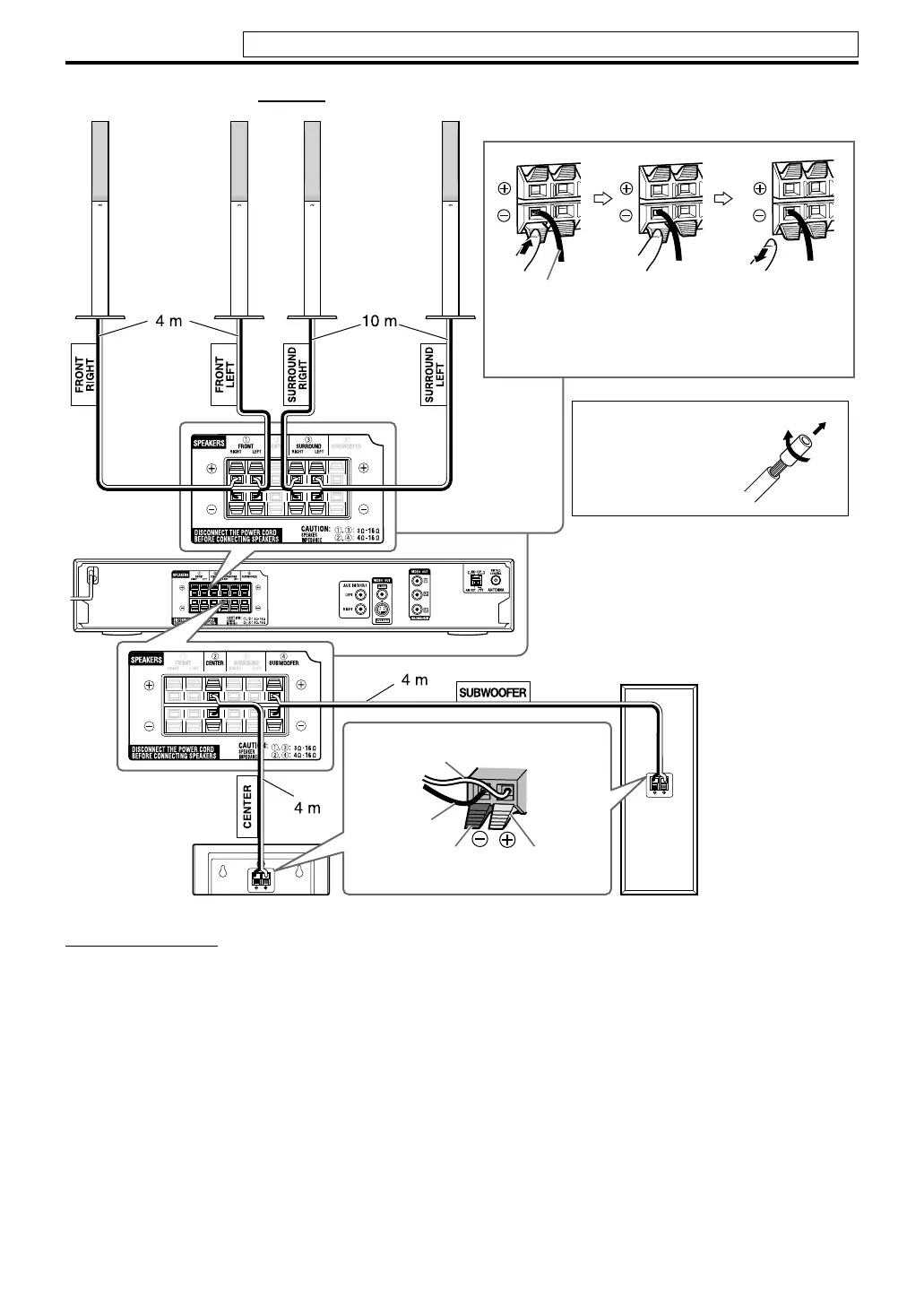

7 Connecting speakers for TH-P7
CAUTION
• If you connect speakers other than the supplied ones, use
speakers of the same speaker impedance (SPEAKER
IMPEDANCE) indicated on the rear of the center unit.
• DO NOT connect more than one speaker to one speaker
terminal.
• When installing the satellite speakers on the wall;
– Be sure to have them installed on the wall by qualified
personnel.
DO NOT install the satellite speakers on the wall by
yourself to avoid unexpected damage from falling off the
wall due to incorrect installation or weakness in wall
structure.
– Care must be taken in selecting a location for speaker
installation on a wall. Injury to personnel or damage to
equipment may result if the speakers installed interfere
with daily activities.
SP-THP7C
Center speaker
• Connect the black cords to the black (–) terminals.
• Connect the white cords to the red (+) terminals.
Speaker cord
SP-WP7
Subwoofer
SP-THP7S
Surround
speakers
Before connecting
the speaker cords;
Twist and pull the
insulation coat off
and remove.
SP-THP7F
Front speakers
White
Black
Black Red
Do not connect the power cord until all other connections have been made.
EN_THP7-P3[U]4.book Page 9 Tuesday, April 4, 2006 5:08 PM
To Next Page
