JVC TH-P3A User Manual

1-12 (No.MB512)

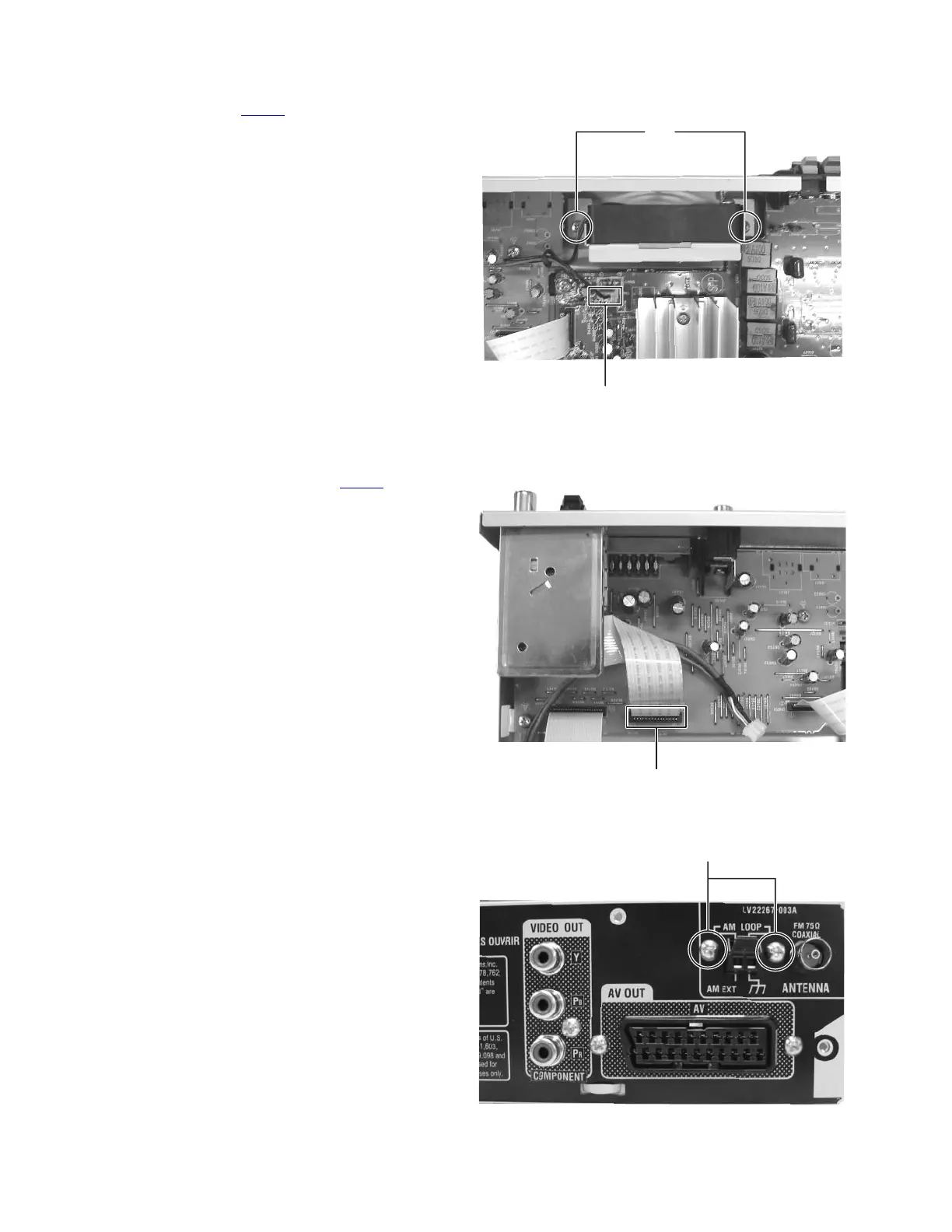

3.1.5 Removing the fan
(See Fig.9)
(1) Disconnect the connector CN416
of main board.
(2) Remove the two screws C attaching the fan to bottom cov-
er.
Fig.9
3.1.6 Removing the tuner pack
(See Fig.10 and 11)
(1) Disconnect the card wire from connector CN652
of video
board. (See Fig.10)
(2) Remove the two screws H attaching the tuner pack from
rear panel. (See Fig.11)
Fig.10
Fig.11
G
CN416
CN652
H
