3.1.7 Removing the video board

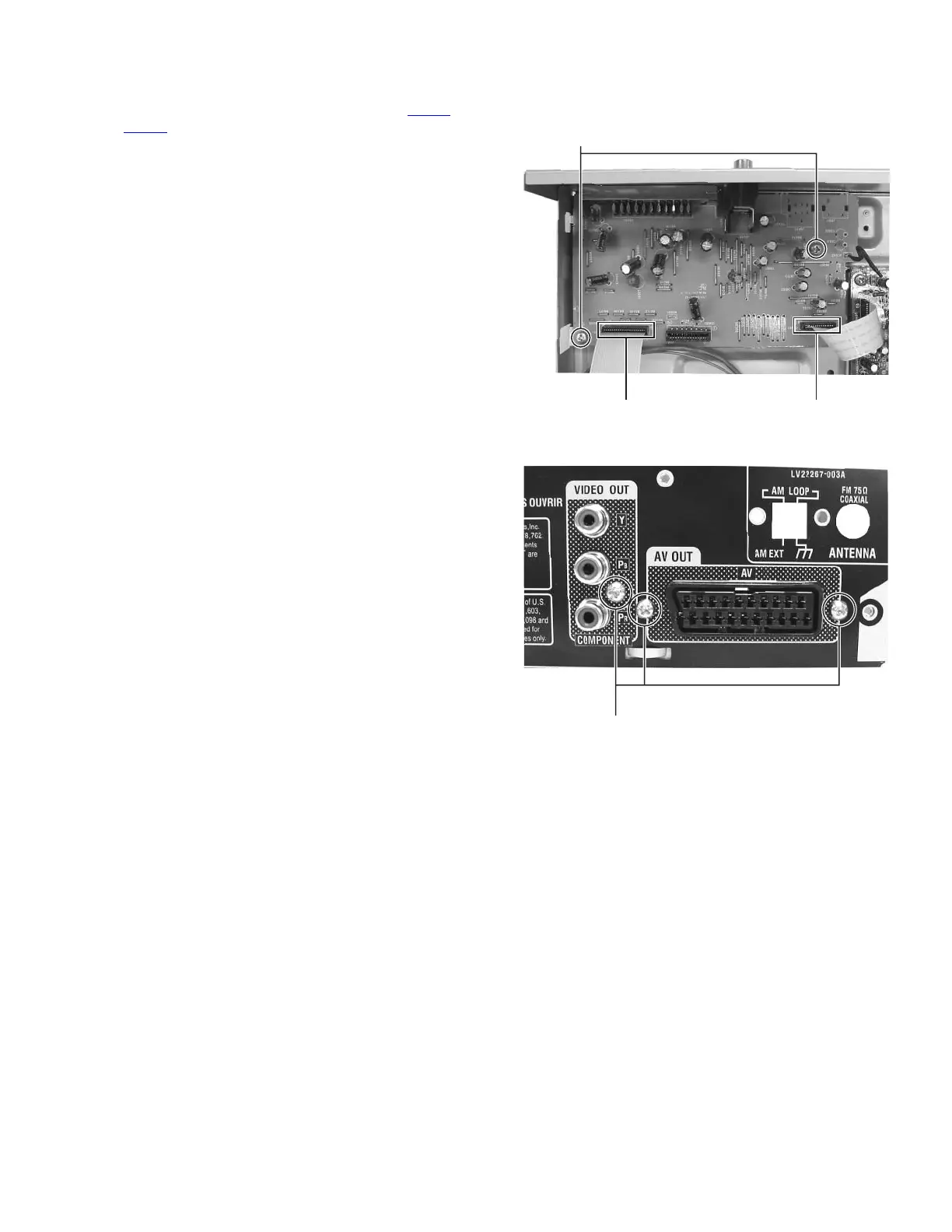

(See Fig.12 and 13)
(1) Disconnect the card wire from connector CN601
and
CN651
. (See Fig.12)
(2) Remove the two screws J attaching the video board. (See
Fig.12)
(3) Remove the three screws K attaching the video board from
rear panel. (See Fig.13)
Fig.12
Fig.13
J
CN651CN601
K
