(No.MB413)1-13

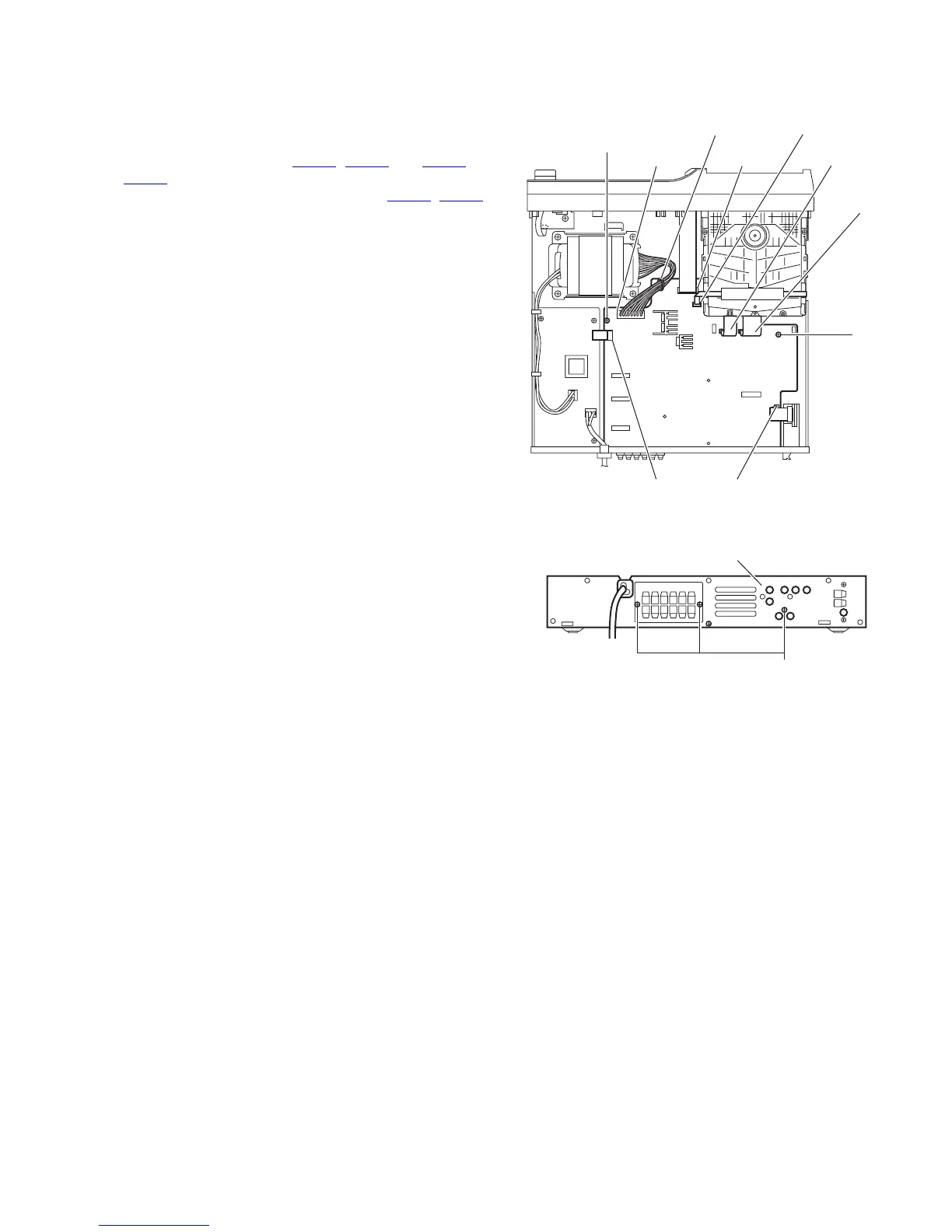

3.1.9 Removing the main board
(See Figs.14 and 15)
• Remove the metal cover, video board and heat sink with power
amp. boards.
(1) From the top side of the main body, disconnect the card
wires from the connectors CN400
, CN401 and CN403 to
CN405
, on the main board. (See Fig.14.)
(2) Disconnect the wires from the connectors CN102, CN101
on the main board. (See Fig.14.)
Reference:
After connecting the wires, fix the wires with the wire
clamp.
(3) Remove the two screws P attaching the main board to the
chassis base. (See Fig.14.)
(4) From the back side of the main body, remove the three
screws Q attaching the main board to the rear panel. (See
Fig.15.)
(5) Take out the main board from the main body.
Fig.14
Fig.15
CN110 CN401
CN102 CN400
CN405
CN403
CN404
Wire clamp
P
P
Rear panel
Q
To Next Page
