1-10 (No.MB413)
3.1.3 Removing the DVD mechanism assembly
(See Figs.5,6 and 8)
• Remove the metal cover.
(1) From the right side of the DVD mechanism assembly, push
the slide cam and pull the tray assembly out of the main
body in the direction of the arrow. (See Fig.5.)
(2) From the front side of the main body, remove the CD fitting
from the tray assembly in the direction of the arrow and
push in the tray assembly as before. (See Fig.6.)
(3) From the top side of the main body, disconnect the card
wires from the connectors CN403
to CN405 on the main
board. (See Fig.8.)
(4) Remove the three screws D attaching the DVD mechanism
assembly to the chassis base. (See Fig.8.)
3.1.4 Removing the HP terminal board
(See Fig.8)
• Remove the metal cover.
Reference:
Remove the front panel assembly as required. (See 3.1.2 "Re-
moving the front panel assembly".)
(1) From the top side of the main body, remove the screw E at-
taching the HP terminal board to the chassis base.
(2) Disconnect the card wires from the connectors CN510
on
the HP terminal board. (See Fig.8.)
(3) Take out the HP terminal board from the main body.
Reference:
When attaching the HP terminal board, align the hole on the
HP terminal board to the projection c of the chassis base be-
fore attaching the screw E.

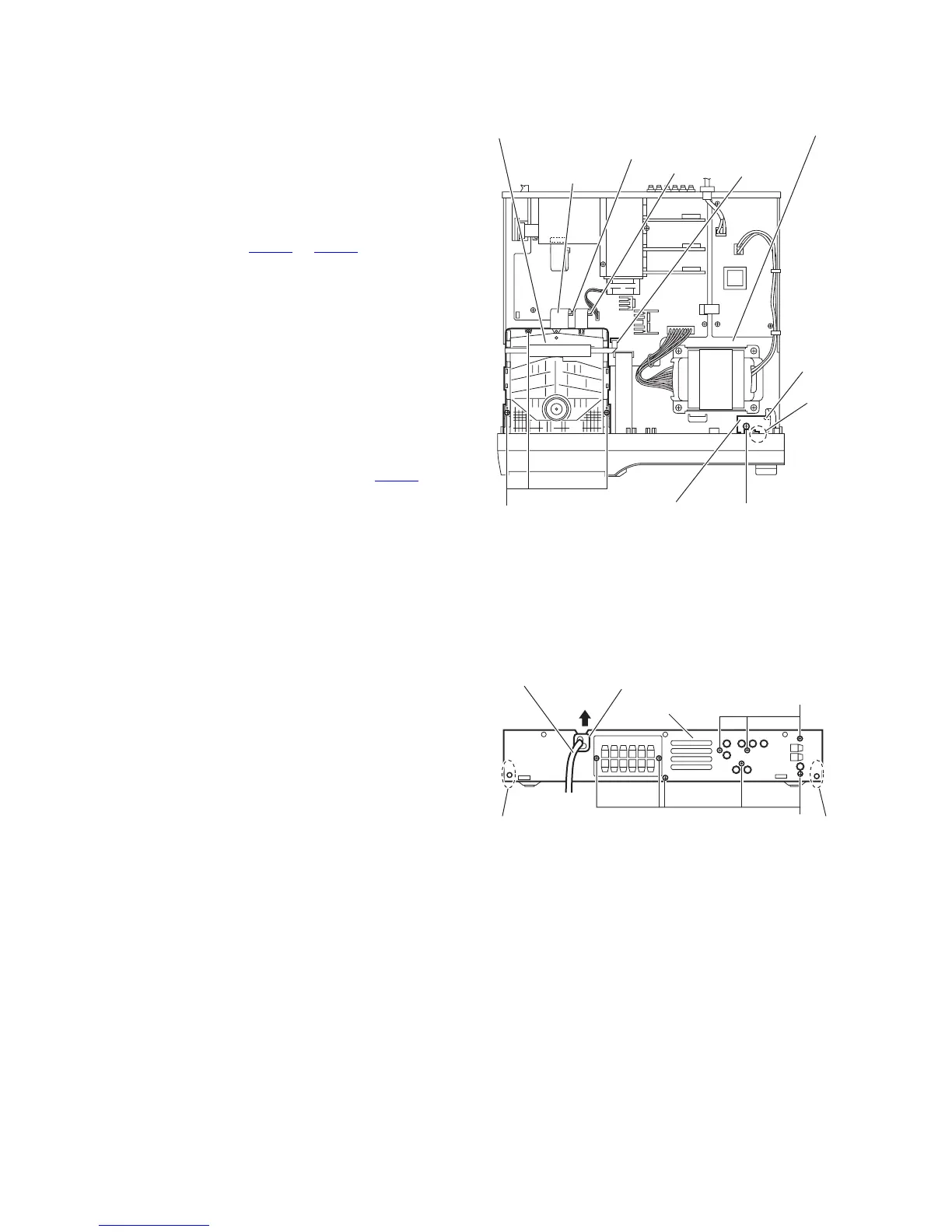

Fig.8
3.1.5 Removing the rear panel
(See Fig.9)
• Remove the metal cover.
(1) From the back side of the main body, remove the strain re-
lief attaching the power cord in the direction of the arrow.
(2) Remove the eight screws F attaching the rear panel to the
main body.
(3) Release the joints d, and remove the rear panel from the
main body.
Fig.9
HP terminal board
Chassis base
CN405
CN510
CN403
CN404
Card wires
DVD mechanism assembly
E
D
c
Rear panel
F
F
Strain relief
Power cord
d d
To Next Page
