(No.MB413)1-11
3.1.6 Removing the tuner assembly
(See Figs.10 and 11)
• Remove the metal cover.
(1) From the top side of the main body, disconnect the card
wire from the connector CN1
on the tuner assembly. (See
Fig.10.)
(2) From the back side of the main body, remove the two
screws G attaching the tuner assembly to the rear panel.
(See Fig.11.)
(3) Take out the tuner assembly from the main body.
3.1.7 Removing the video board
(See Figs.10 and 11)
• Remove the metal cover.
(1) From the top side of the main body, disconnect the card
wire from the connector CN350
on the video board. (See
Fig.10.)
(2) From the back side of the main body, remove the two
screws H attaching the video board to the rear panel. (See
Fig.11.)
(3) Take out the video board from the main body.

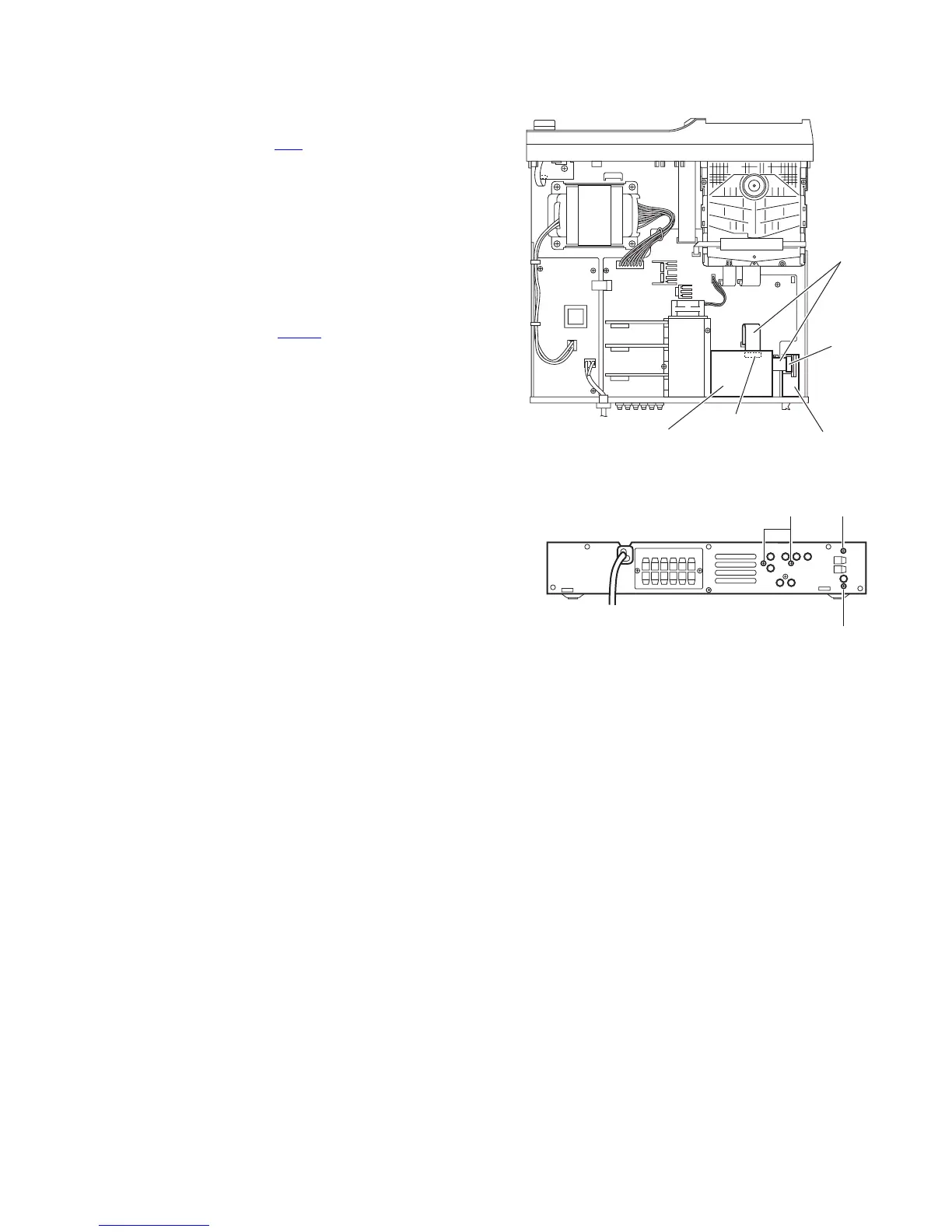

Fig.10
Fig.11
Videol board Tuner assembly
CN350
CN1
Card wires
G
H
G
To Next Page
