Connections
Method 1: Optical / Coaxial Connection
Use an optical cable (included) / coaxial cable (not included) to connect the soundbar’s
OPTICAL / COAXIAL socket to the OPTICAL OUT / COAXIAL OUT socket of the external
device. The simplest option is to connect your soundbar directly to your TV. If you connect
the soundbar to another external device (e.g. Blu-Ray player), you will hear the sound from
that device through the soundbar.
1. After connection, press button on the unit or remote control to switch the unit on.
2. Press SOURCE on the unit or DIGITAL on the remote control repeatedly to select
OPTICAL or COAXIAL to play audio from your input device.
This section involves various methods of connecting the product to other external components. Ensure
all audio connections of the unit are connected before connecting to the mains power socket.
The unit may not be able to decode all digital audio formats from the input source. In this case, the unit
will mute. This is NOT a defect. Ensure that the audio setting of the input source (e.g. TV, game console,
DVD player, etc.) is set to PCM or Dolby AC-3 (Refer to the user manual of the input source device for its
audio setting details) with optical / coaxial input.
COAXIAL OPTICAL AUX 2 AUX 1R L
HDMI1 HDMI2 HDMI OUT
(ARC)
24V 2.7A
TV

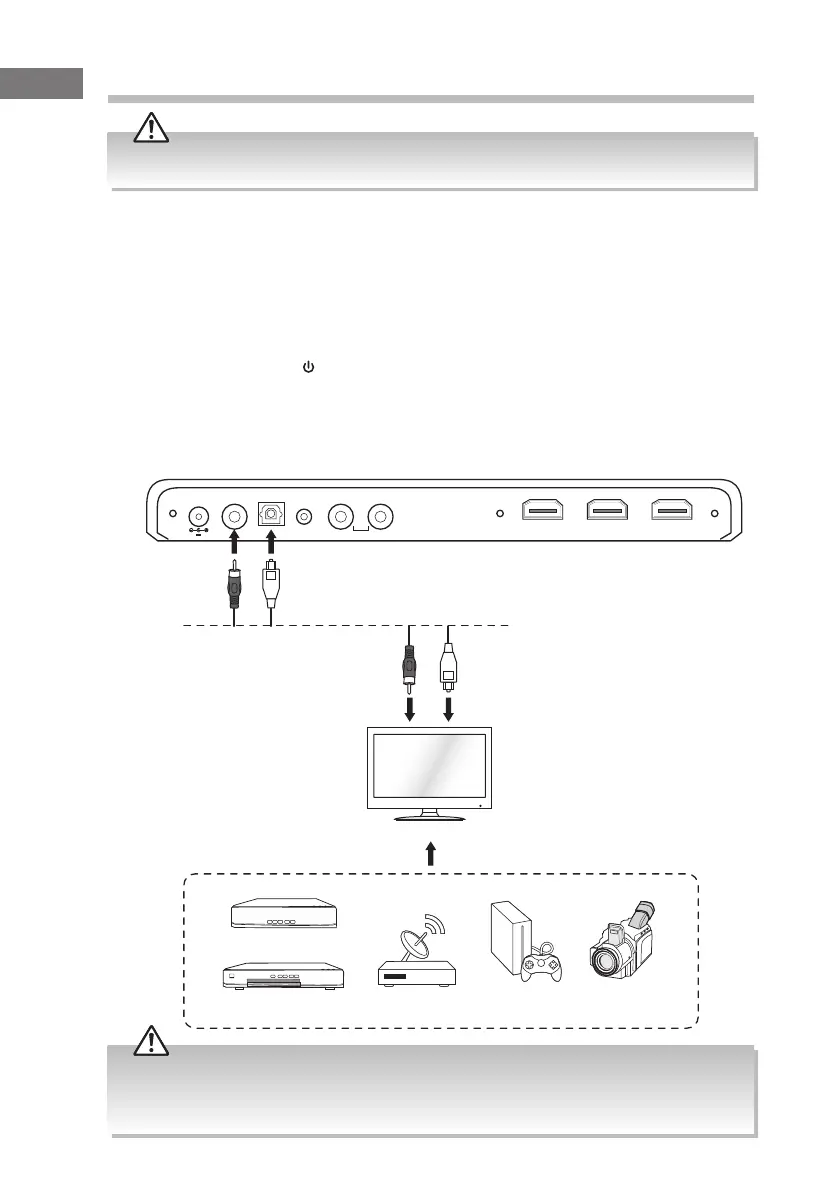

Rear View of the Soundbar
Blu-ray Player / DVD Player
/ Recorder
Set-top Box
Satellite
Receiver
Game
Console
Video
Camera
Optical cable (included) or
Coaxial cable (not included)
