14

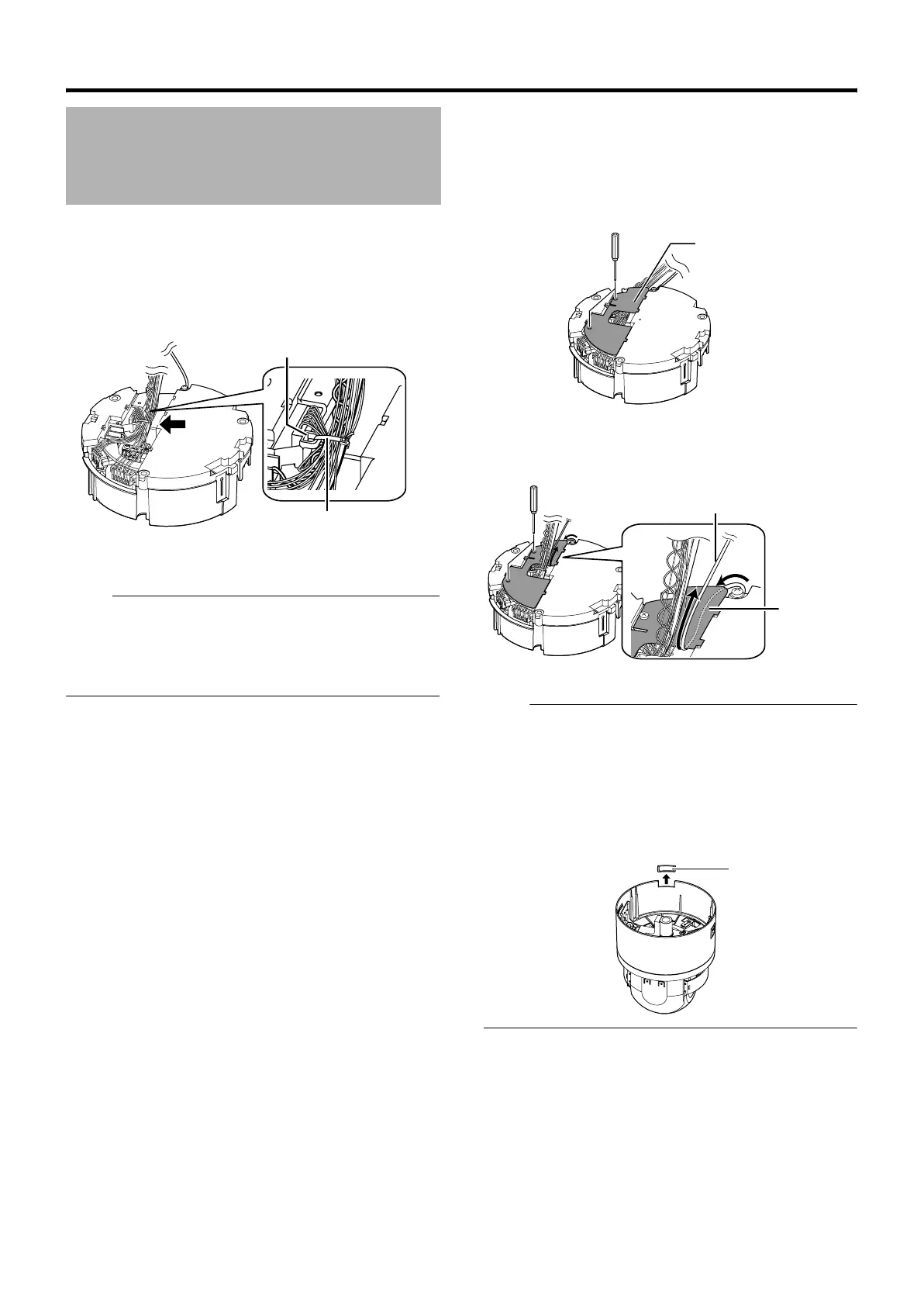

Connection/Installation
7 Handling cables
Thread the provided wire clamp through the wire clamp fixing
hole of the ceiling clamping bracket to tie all the wires.
Note
To prevent the cables from tangling and coming off, be
sure to thread a wire clamp through the wire clamp fixing
hole to tie the cables.
Tie the provided alarm cable with the wire clamp as
shown in the diagram.
8 Mount the terminal cover
Return the terminal cover that was removed in step 3 to its
original position. The direction to pull out the cables changes
according to the mounting method of the camera.
Note
Be sure to mount the terminal cover to prevent foreign
objects or dust from entering.
When pulling out the cables from the top, make the fall
prevention wire go under the terminal cover and pull it out
together with the other cables.
When pulling out the cables from the side, remove the
cable cover of the camera.
Mounting the Camera
(continued)
Tie here
Wire clamp fixing hole
Wire clamp
Terminal cover
Pulling out the cables from the side
Pulling out the cables from the top
Terminal
cover
Safety wire
(To go under the terminal cover)
Cable cover
