JVC TK-C686E Installation Guide

38
Changing camera settings from remote control
(● indicates the default value)
AUTO PAN/PATROL/TRACE
screen (continued)
Item Setting value Functions and settings
AUTO PAN/TRACE
VIDEO
This item sets the images during Auto Pan and Auto Trace.
IRIS MODE MANUAL
● AUTO
AUTO+
AUTO-
This item sets the adjustment method for lens iris.
MANUAL :Select this to adjust the iris manually.
AUTO :Automatically adjusts the iris to normal state.
AUTO+ :Automatically adjusts the iris to be brighter than the normal state.
AUTO- :Automatically adjusts the iris to be darker than the normal state.
ExDR MODE ● OFF
ON
The ExDR function allows an object with illuminance difference to be shot by
combining images shot with a shutter speed of 1/100 seconds and images shot
with a high speed shutter.
OFF : ExDR is disabled.
ON : ExDR is enabled.
Memo ：
● When the [SHUTTER] item is set to A1/250B and above, A- - -B will be
displayed and ExDR is disabled.
ExDR LEVEL –5 to NORMAL to 5
(● NORMAL)
This item sets which brightness area of the object is to be more visible during
ExDR mode.
A larger number will enable areas of low illumination in the object to be more
visible.
A smaller number will enable areas of high illumination in the object to be more
visible.
Memo ：
● When the illuminance difference in the object is large, there may not be any
changes in the images even if the ExDR level is changed. This is a feature of
the camera and is not a malfunction.
● When the [SHUTTER] item is set to A1/250B and above, A- - -B will be
displayed and settings for [ExDR LEVEL] item cannot be changed.
● When the [ExDR MODE] item is set to AOFFB, settings for [ExDR LEVEL]
item cannot be changed.
BLC MODE ● OFF
AREA1
AREA2
AREA3
AREA4
Sets the backlight compensation function. Set this item when there is a bright
light source in the background of the object and the object becomes dark in the
automatic iris function. Set such that unnecessary light source is outside the
photometry area.
OFF : No backlight compensation.
AREA1 to AREA4 : Refer to the diagram below to set the item.
Memo ：
● When [ExDR MODE] item is set to AONB, A- - -B will be displayed and [BLC
MODE] item is disabled.

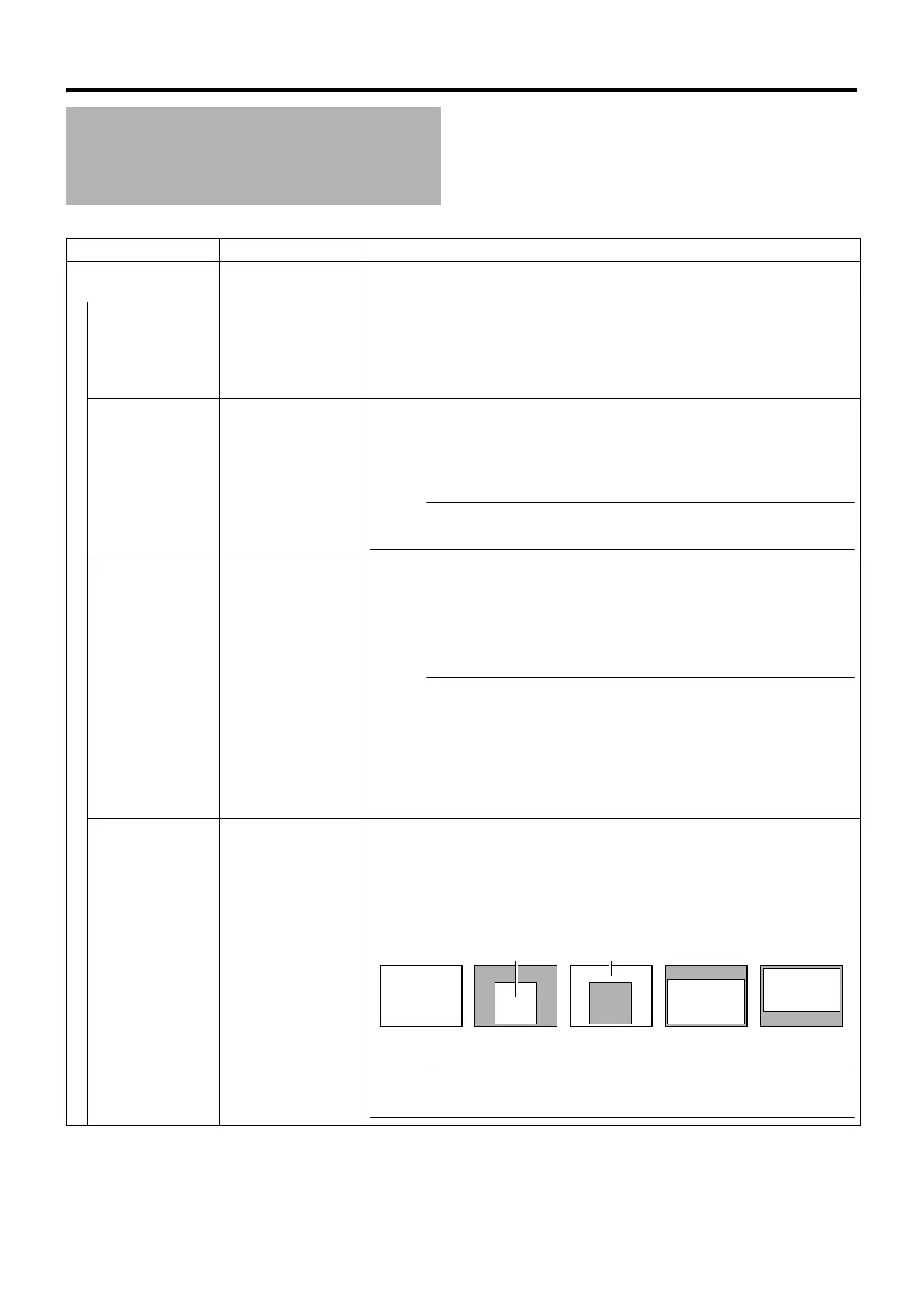

OFF AREA1 AREA2 AREA3 AREA4
Photometry
area
Photometry
area
Photometry
area
Photometry
area
Photometry
area
TK-C686E_EN.book Page 38 Tuesday, December 4, 2007 4:45 PM
