JVC TM-A101G

EXIT
CHROMA MENU
PHASE BRIGHT
CONTRAST VOLUME/SELECT
< MENU >
‰ SHARPNESS : +03
COLOR SYSTEM :
AUTO
ASPECT RATIO : 4–3
Menu items Purpose Setting range
SHARPNESS Picture sharpness
COLOR
Color system
SYSTEM
ASPECT RATIO Aspect ratio
Front panel Function
Contents
button displayed
+ Increase (to max. value)
4 Forward the setting value
– Decrease (to min. value)
1 Reverse the setting value
VOLUME/
SELECT (–)
VOLUME/
SELECT (+)
Front panel Function
Contents
button displayed
CHROMA/
 Forward selection mark ( 4 )
PHASE
CONTRAST/
 Reverse selection mark ( 4 )
BRIGHT
Front panel Function
Contents
button displayed
MENU EXIT
Quit (or Release) the <MENU>
screen
1
2
3
4

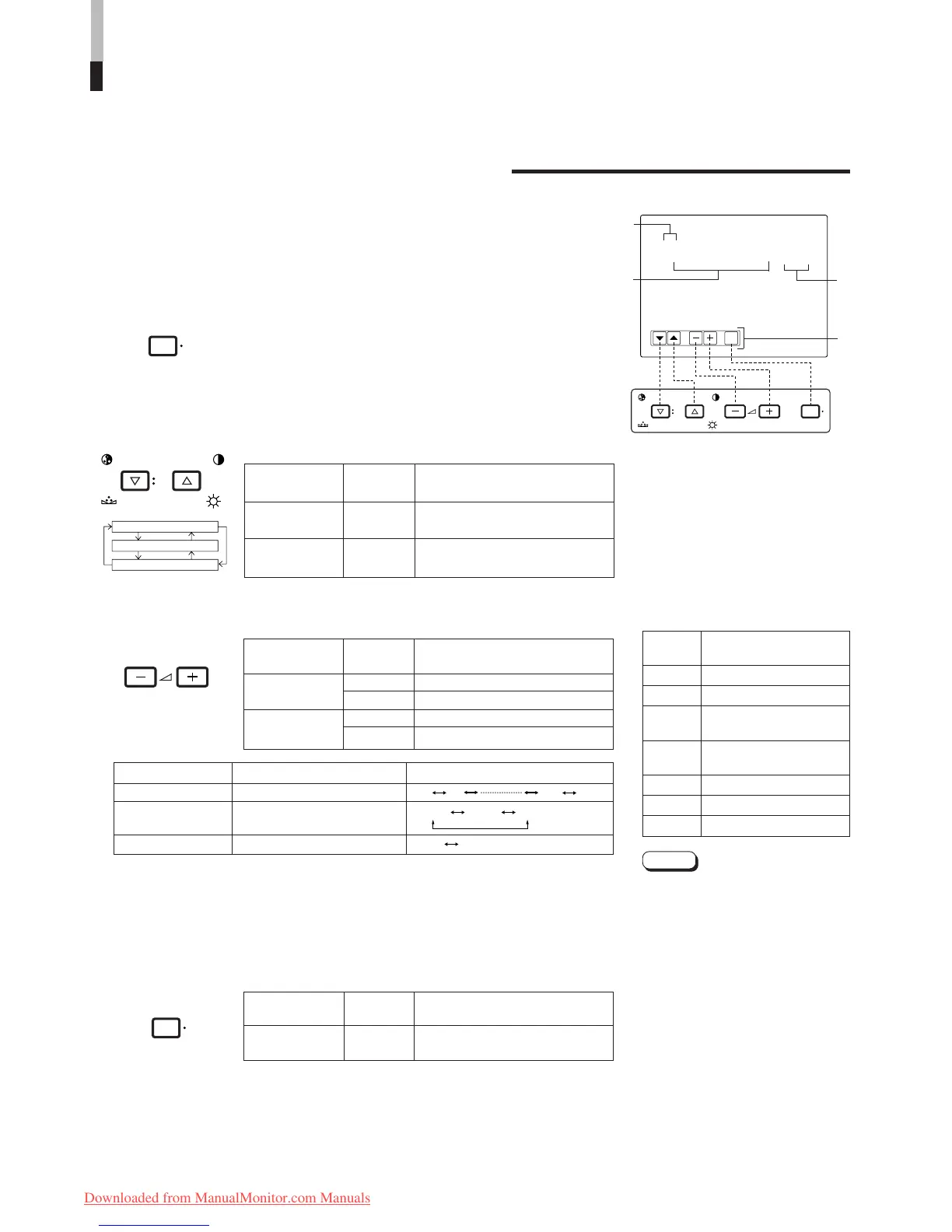

HOW TO USE THE MENU FUNCTIONS
• SHARPNESS • ASPECT RATIO
• COLOR SYSTEM
You can set the following menu items.
Set them depending on your needs.
1. Press the MENU button.
The <MENU> screen is displayed.
* The screen automatically disappears when no operation is
performed after about 5 minutes.
2. Press the CHROMA/PHASE or CONTRAST/BRIGHT
button to select MENU items.
A selection mark ( 4 ) is put next to the selected item.
SHARPNESS
COLOR SYSTEM
ASPECT RATIO
3. Press the VOLUME/SELECT buttons to set.
4. If you want to set the other menu items, repeat
procedures 2 and 3.
5. Press the MENU button to quit.
1 Selection mark ( 4 ): Indicates the
menu item you select.
2 Menu item: Menu items you can
select.
3 Setting display: Indicates the current
settings (value).
4 Function display: The functions of
the front panel buttons (5 buttons on
the left) correspond to the function
displayed.
Notes:
● When the screen aspect ratio is set to
16 - 9 (16:9) in ASPECT RATIO, the
picture will be vertically reduced.
● When ASPECT REMOTE is set to
ON in the <SET-UP MENU> screen,
REMOTE is displayed in ASPECT
RATIO. ASPECT RATIO cannot be
set in the MENU when ASPECT
REMOTE is ON.
<MENU> screen
<Front panel buttons>
Function
Contents
displayed
 Forward the menu item.
 Reverse the menu item.
– Lower the adjustment
value. (to the minimum)
+ Raise the adjustment
value. (to the maximum)
4 Forward the setting value.
1 Reverse the setting value.
EXIT Exits the <MENU> screen.
DISPLAY AND SELECTION IN THE <MENU>
SCREEN MODE (SETTING)
00 +1 +04 +05
AUTO NTSC PAL
4 – 3 16 – 9
8
MENU
CHROMA
PHASE BRIGHT
CONTRAST
VOLUME/SELECT
MENU
