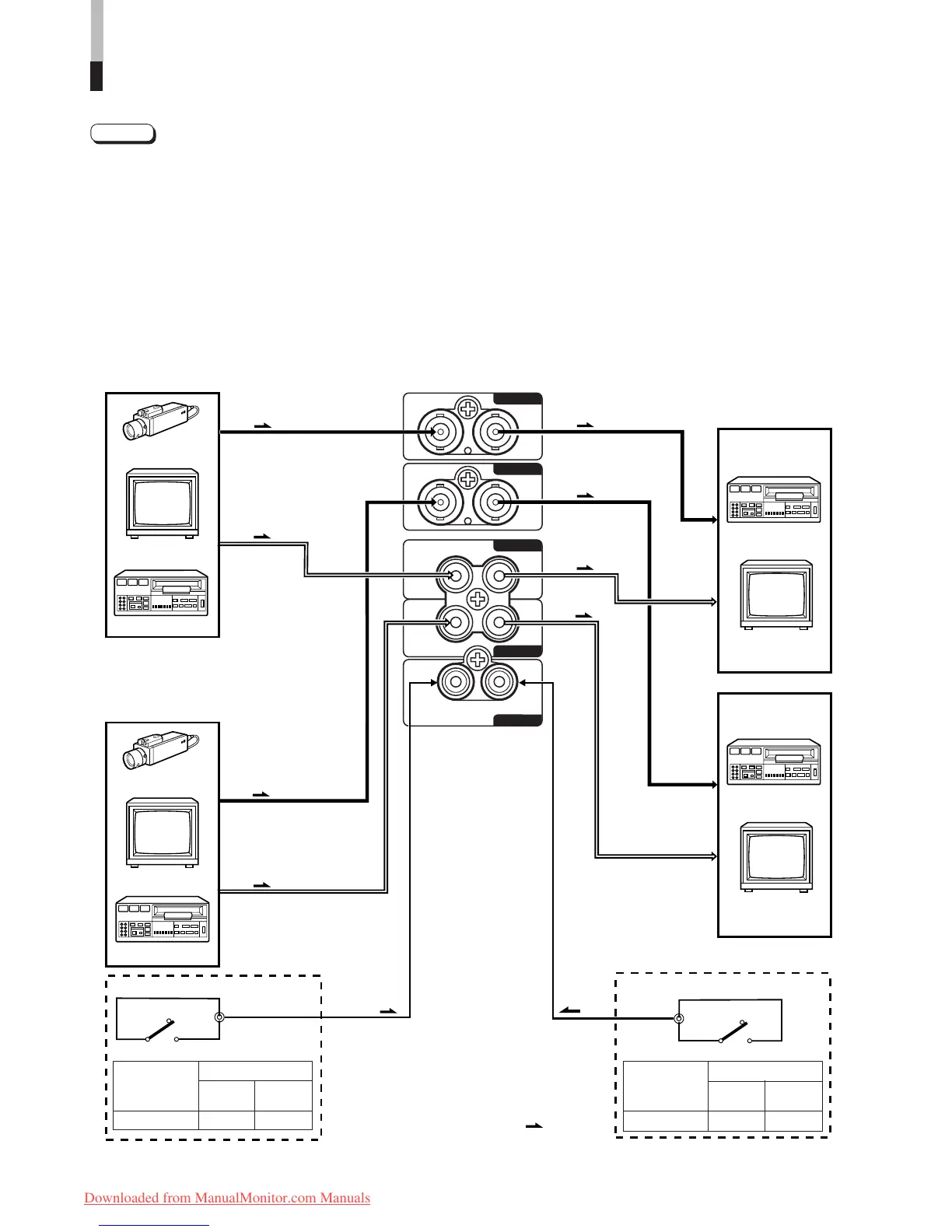

BASIC CONNECTION EXAMPLE
External control switch
Open circuit Closed circuit
(open) (short)
INPUT
INPUT A INPUT B
Notes:
Before connecting your system, make sure that all units are turned off.
The illustration below shows some examples of different connections. Terminal connections may differ depending on the component connected.
Be sure to refer to the instructions provided with the unit(s) you are connecting.
Each pair of input (IN) and output (OUT) terminals are bridge-connected.
If you’re not connecting any equipment to a bridged output (OUT) terminal, be sure not to connect any other cables to the bridged output (OUT)
terminal as this will cause the terminating resistance switch to open (auto terminate function).
When making a bridge connection, connect the input (IN) and output (OUT) terminals on the monitor to separate video components.
(For example, if both terminals are connected to the same VCR, resonance may occur except during playback. This is caused by the same video
signal “looping” between the VCRs, and is not a malfunction.)
Select the video input (INPUT A (VIDEO) or INPUT B (VIDEO)) with the INPUT SELECT buttons on the front panel.
The ASPECT RATIO or INPUT A/B settings can be controlled via the REMOTE terminal by setting ASPECT REMOTE or INPUT REMOTE in the
<SET-UP MENU> screen to valid. (Refer to pages 9 and 10.)
VIDEO A Connection Example (Select Input A (VIDEO))
External control
functions
External control switch
closed circuit (short)
open circuit (open)
RCA pin
External control switch
Open circuit Closed circuit
(open) (short)
ASPECT RATIO 4–3 (4:3) 16–9 (16:9)
External control
functions
External control switch
closed circuit (short)
open circuit (open)
RCA pin
VIDEO B (VIDEO) Connection
Example (Select Input B (VIDEO))
Video Camera
Video Monitor
VCR
Video Camera
Video Monitor
VCR
Video
(Video signal cable)
Audio
(Audio signal cable)
Video
(Video signal cable)
Audio
(Audio signal cable)
Audio
(Audio signal cable)
Audio
(Audio signal
cable)
Video
(Video signal cable)
Video
(Video signal cable)
REMOTE
(Remote cable)
REMOTE
(Remote cable)
Video Monitor
VCR
Video Monitor
VCR
12
: Signal Flow
