1-6 (No.MB066)
SECTION 3
DISASSEMBLY
3.1 Main body

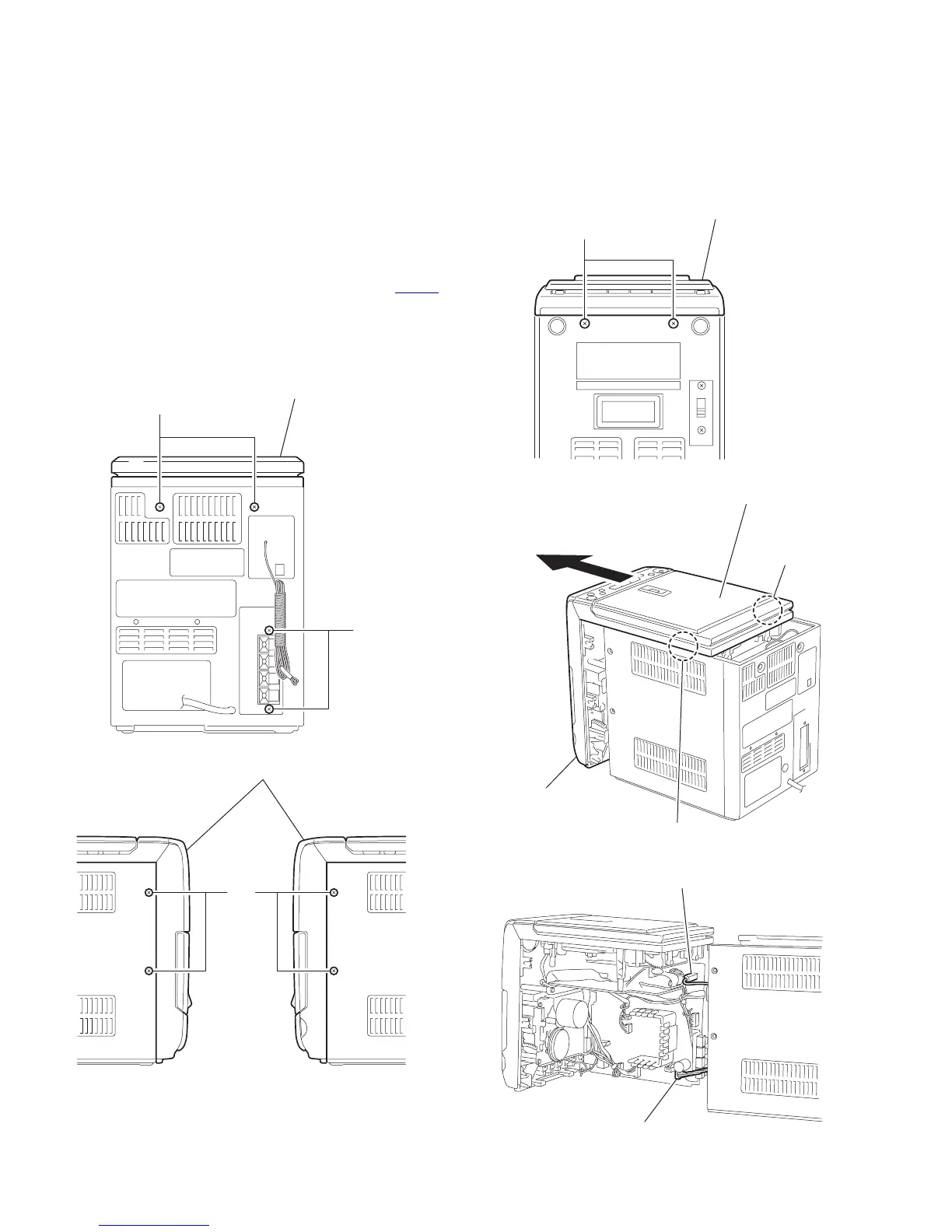

3.1.1 Removing the Front panel assembly
(See Fig.1 ~ 5)
(1) Remove the two screws A and the two screws B on the
back of the body.
(2) Remove the four screws C on each side of the body.
(3) Remove the two screws D on the bottom of the body.
(4) Move the front panel assembly in the direction of the arrow
and detach. Disconnect the wire from connector CN860
and FM-ANT.
Caution:
When reassembling, set the tab “a” on the right and left side to
the groove, and move.
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
A
B
CD mechanism assembly
C
Front panel assembly
D
Front panel assembly
Joint a
Joint a
Front panel
assembly
CD mechanism assembly
FM-ANT
CN860
To Next Page
