JVC UX-H10 Service Manual

(No.MB066)1-7
3.1.2 Removing the Main board

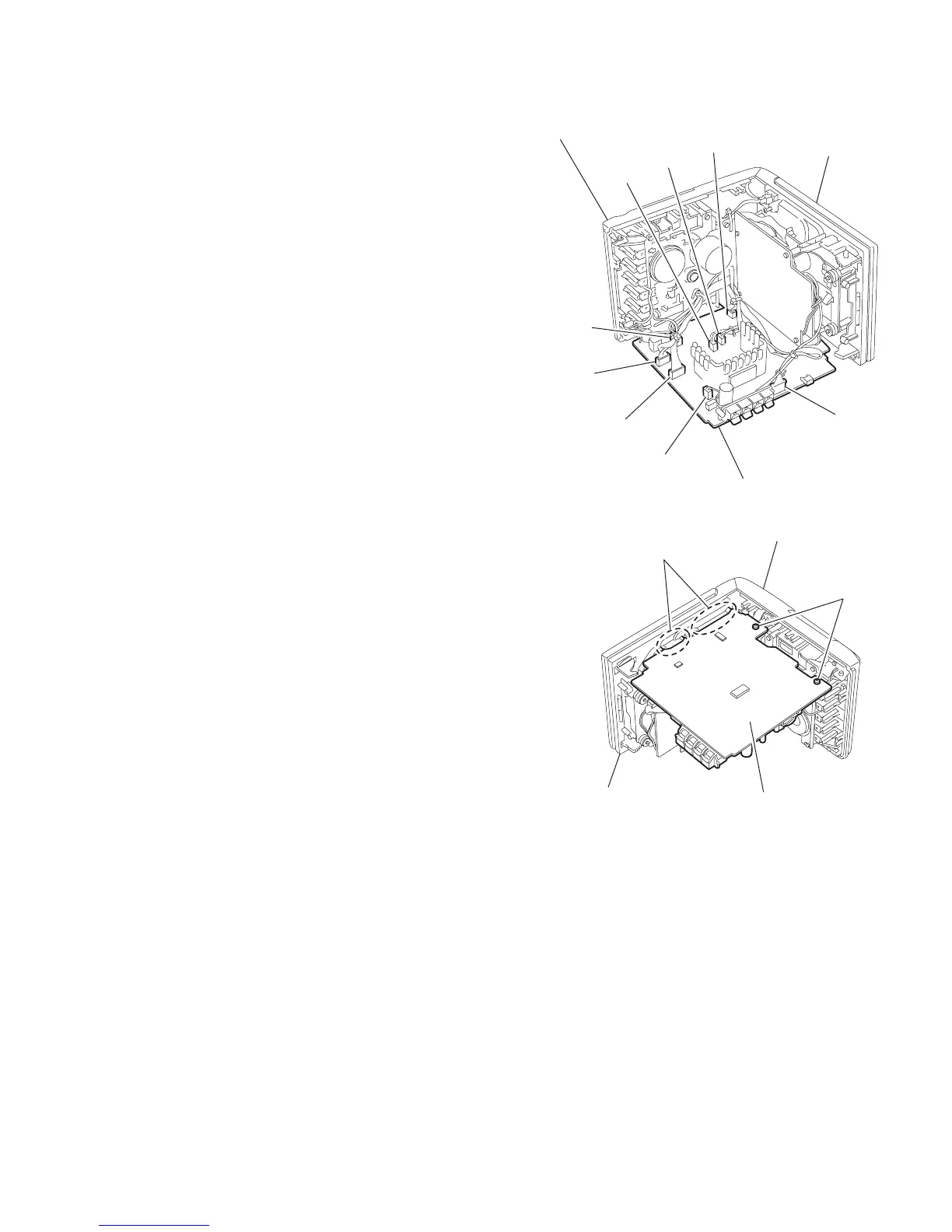

(See Fig.6 , 7)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Disconnect the wire from all connectors on the main board.
(2) Remove the two screws E and release the joint b.
Fig.6
Fig.7
CN801
CN851
CN850
CN370
CN301
CN601
CN602
CN260
Main board
CD mechanism
assembly
Front panel
assembly
E
Main board
CD mechanism
assembly
Front panel assembly
Joint b
