JVC XL-R5000BK Service Manual

1-7
XL-R5000BK

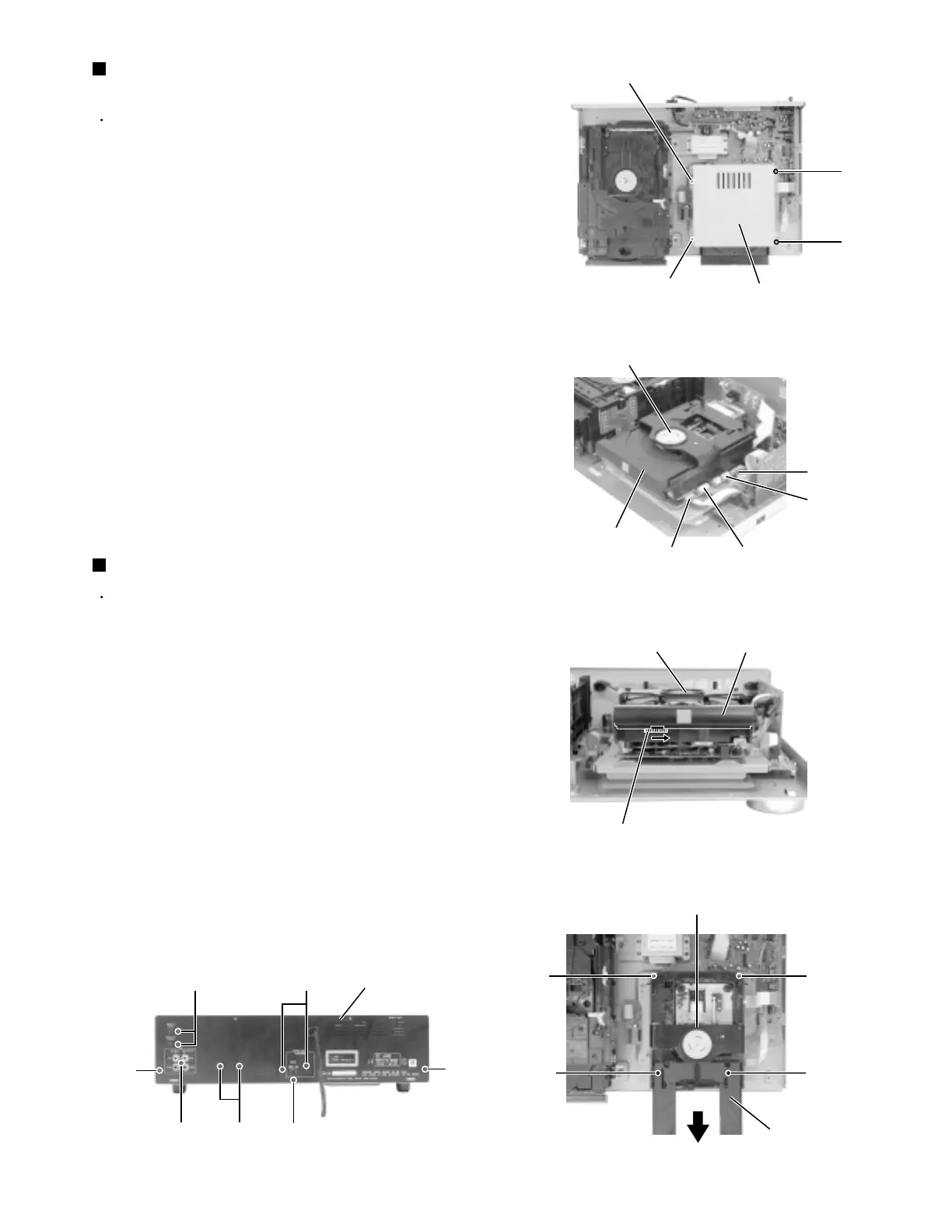

Prior to performing the following procedure, remove
the top cover and the front panel assembly.
Remove the four screws F attaching the CD-R
mechanism cover.
Disconnect the card wires from connector CN501
and CN601, and the harnesses from CN502 and
CN701 of the servo board on the left side of the CD
mechanism assembly.
Spin the dial on the front of the CD-R mechanism
assembly as shown in the figure and draw the tray
assembly toward the front.
Move the tray assembly until it stops.
Remove the two screws G and the two screws H
attaching the CD-R mechanism assembly.
1.
2.
3.
4.
5.
Removing the CD mechanism assembly
(See Fig.10 to 13)
Prior to performing the following procedure, remove
the top panel.
Remove the seven screws I and the three screws J
on the back of the body.
1.
Removing the rear panel (See Fig.14)
Fig.10
Fig.11
Fig.12
Fig.13Fig.14
CD-R mechanism cover
F
F
F
F
Tray assembly
CN501
CN502
CN701
CN601
CD-R mechanism assembly
CD-R mechanism assembly
CD-R mechanism assembly
Tray assembly
Tray assembly
Dial
G
H
H
G
I
J
JII
I
J
Rear panel
