JVC XL-R5000BK Service Manual

1-8
XL-R5000BK
Prior to performing the following procedure, remove
the top panel.
Unsolder the terminal CN1 and CN2 on the power
transformer board. Cut off the tie band and
disconnect the power cord.
Disconnect the harness from connector CN901 and
CN902 on the main board.
Remove the four screws K attaching the power
transformer.
1.
2.
3.
Removing the power transformer
(See Fig.15)
Prior to performing the following procedure, remove
the top panel and the rear panel.
Disconnect the card wire from connector CN506 and
the harness from CN802 on the external control
board.
Disconnect connector CN351 and CN361 on the
external control board from the main board.
1.
2.
Removing the external control board
(See Fig.16)
Prior to performing the following procedure, remove
the top panel, the front panel, the CD-R mechanism
assembly and the rear panel.
Remove the four screws L attaching the CD-R
mechanism base.
Disconnect the card wire from connector CN811 and
the harnesses from CN901 and CN902 on the main
board.
Remove the four screws M attaching the main
board. If necessary, remove the external control
board.
1.
2.
3.
Removing the main board
(See Fig.17 and 18)

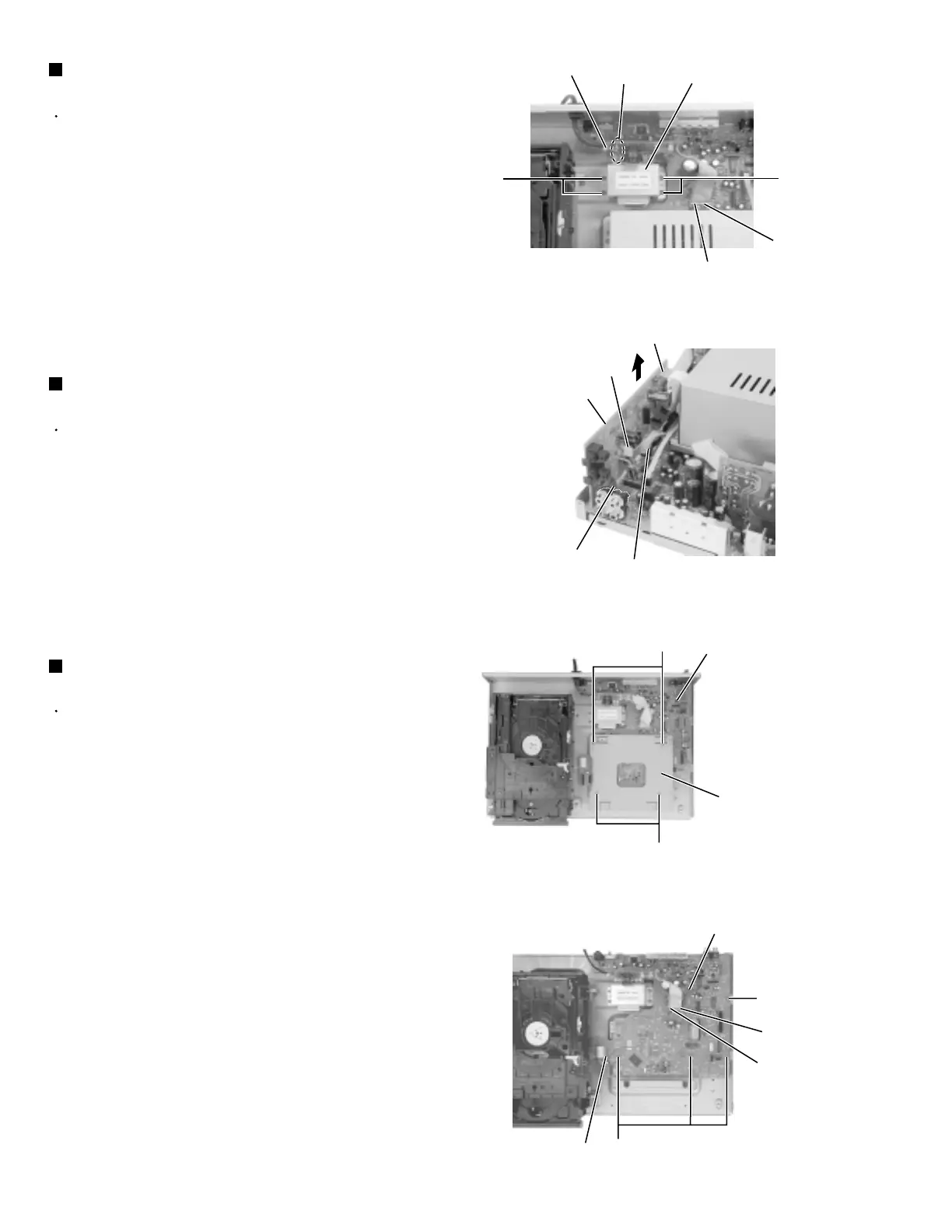

Fig.15
Fig.16
Fig.17
Fig.18
Tie band
CN1,CN2
Power transformer
L
L
CN902
Main board CN901
K
K
CN506
CN802
External control board
CN361
Main board
CD-R mechanism
base
CN351
Main board
CN902
CN901
CN811
L
M
