JVC XV-S332SL Service Manual

XV-S300BK/XV-S332SL/XV-S402SL/XV-S403SG
11

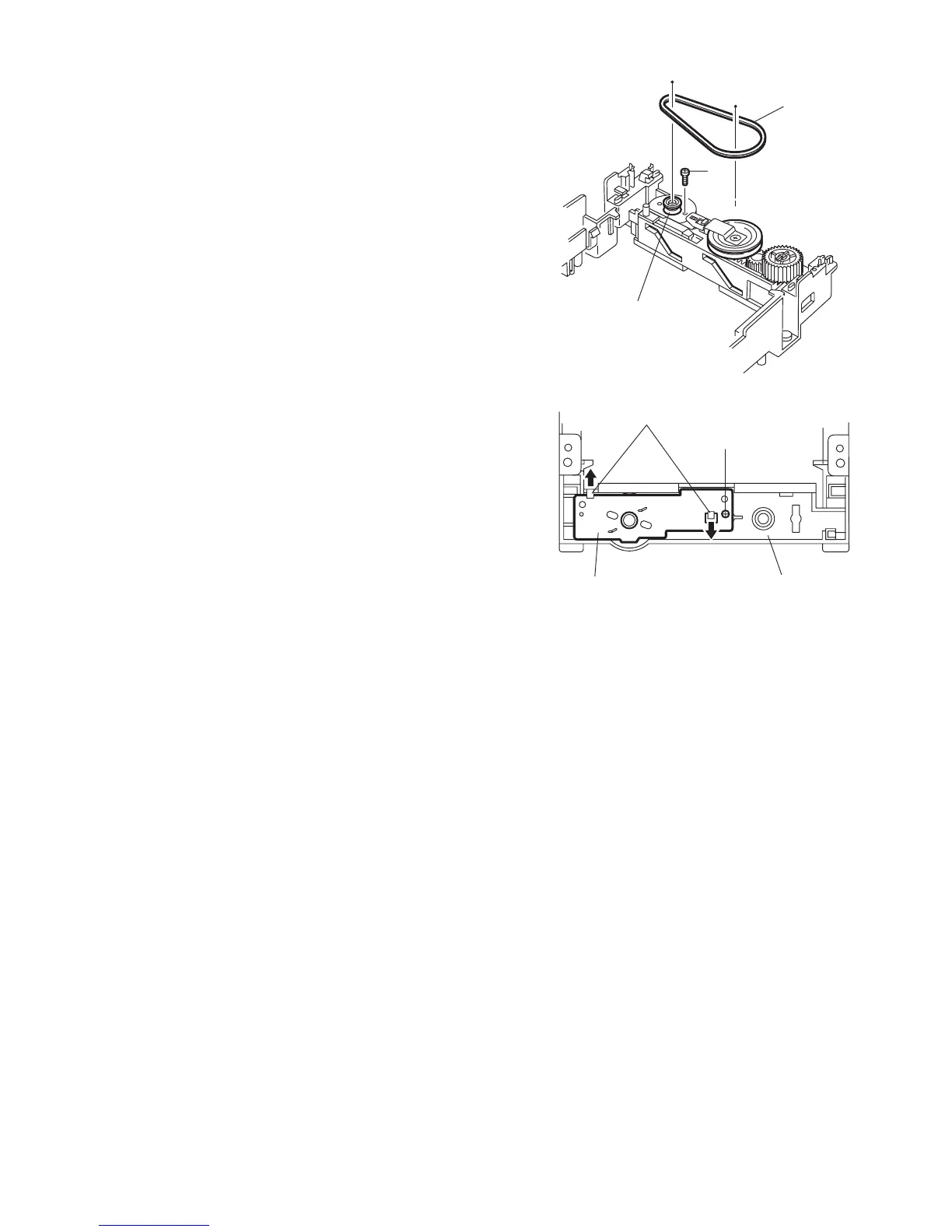

2.2.5 Removing the motor assembly (See Fig.2-15 and 2-16)
• Prior to performing the following procedure, remove the
clamper assembly, the tray, the traverse mechanism assem-
bly and the elevator.
(1) Remove the belt from the pulley.
(2) Remove the screw C attaching the motor assembly.
(3) Turn over the body and remove the screw D
attaching the motor assembly.
(4) Release the two tabs g retaining the motor board.
Fig.2-15
Fig.2-16
C
Motor assembly
Belt
Loading base
Motor assembly
D
Tabs g
