JVC XV-SA600BK Service Manual
5
of 1
of 1 rating
84 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

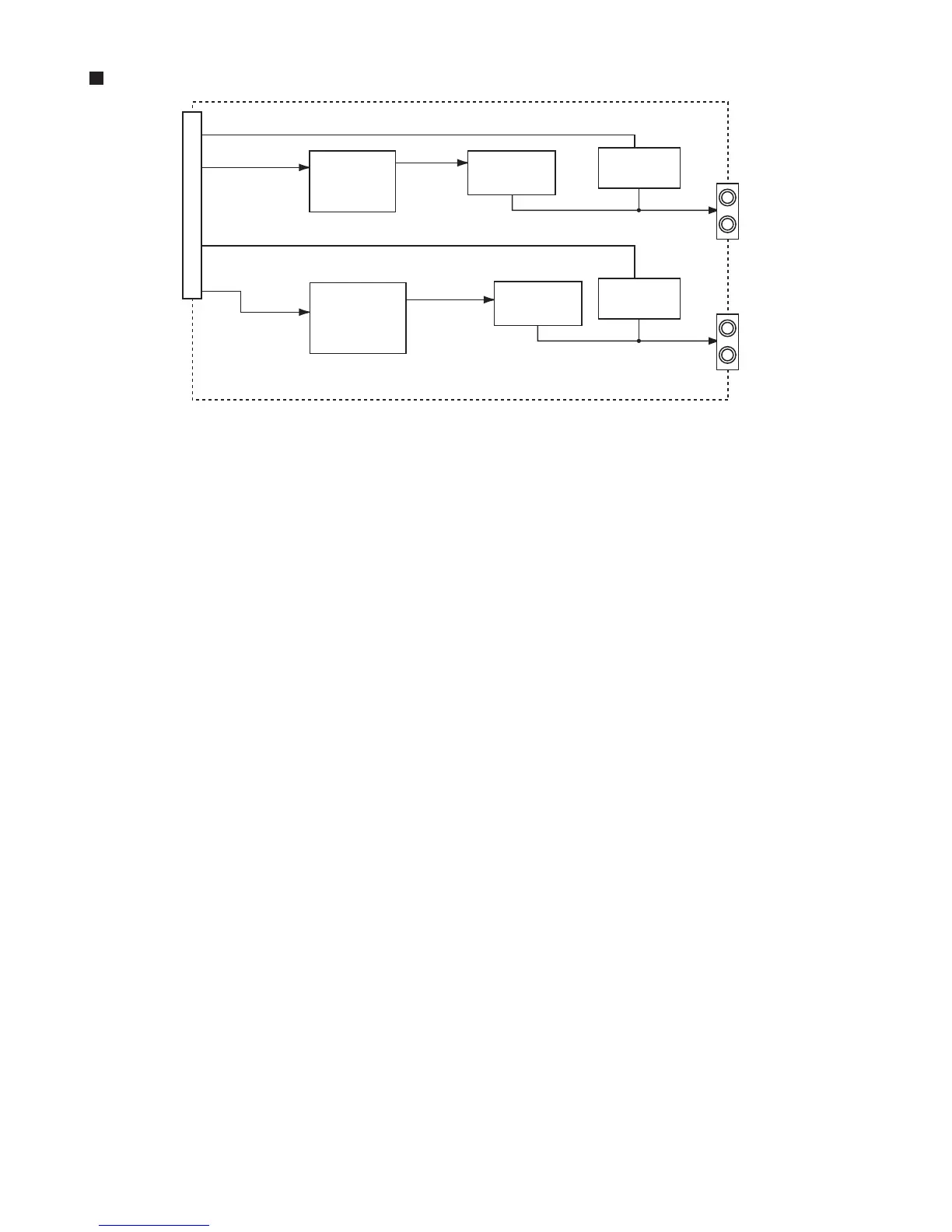

XV
-SA600BK/XV
-SA602SL
2-5
REAR
A
UDIO D
A
C
IC813
LPF
IC812,IC811
MUTE
Q811,Q812
Surround audio signal output section (SHEET 7)
CENTER/
SUB WOOFER
A
UDIO D
A
C
IC823
LPF
IC821,IC822
MUTE
Q821,Q822
D
A_D
A
T
A2
D
ABCK
D
ALRCK
D
D
ATA
D
A_D
A
T
A3
D
ABCK
D
ALRCK
D
D
ATA
OUT1C
OUT1D
OUT2C
OUT2D
OUT1C
OUT1D
OUT2C
OUT2D
MUTE2
MUTE2
REAR
ANALOG
A
UDIO OUT
CENTER
SUB WOOFER
ANALOG
A
UDIO OUT
J811
J821
CN711
T
O CN701
SHEET 2
54
56
Table of Contents
Table of Contents
2
1 Important Safety Precautions
3
Safety Precautions
3
Warning
3
Caution
3
Critical Parts for Safety
3
Preventing Static Electricity
4
Handling the Traverse Unit (Optical Pickup)
4
Importance Admistering Point on the Safety
5
Precautions for Service
6
2 Disassembly Method
7
Main Body
7
Loading Assembly Section
9
Traverse Mechanism Assembly Section
13
3 Adjustment Method
16
Test Mode Setting Method
16
Initialization Method
16
Method of Displaying Version of Microcomputer
16
Display of Current Value of Laser
17
Display of Jitter Value
17
Upgrading of Firmware
18
Display of Region Code
18
Flap Adjustment of the Pick-Up Guide Shaft
19
Attention When Pick-Up Is Exchanged
20
Confirm Method of Operation
21
Troubleshooting
22
Check Points for each Error
23
4 Description of Major Ics
26
74Lcx373Mtc-X(Ic512,Ic513)
26
BA5983FM-X (IC201) : 4CH Driver
27
AN8703FH-V (IC101) : Frontend Processor
28
BA6664FM-X (IC251) : 3Phase Motor Driver
29
K4S643232E-Tc60(Ic505):Dram
31
MM1568AJ-X (IC801) : Video Driver
32
MN101C35DLD (IC701) : System Controller
33
MM1565AF-X (IC951) : 500Ma Regulator
34
MN102L62GLH (IC401) : Unit CPU
35
MN103S26EGA (IC301) : Super Optical Disc Controller
36
Mn35505-X (Ic703) : Dac
40
NDV8601VWA-BB(IC501):AV Decoder
41
S-93C66Afj-X (Ic451,Ic510) : Eeprom
45
Sst39Vf160-7Cek (Ic509) : 16M Eeprom
46
STR-G6651-F8 (IC901) : Switch Regulator
47
TC74HC08AF-X(IC704) : 2-Input and Gate
47
5 Glossary of Term and Abbreviations(for AV Decoder Section)
48
Block Diagrams
52
Parts List [XV-Sa600Bk / XV-Sa602Sl]
67
Parts List
67
Exploded View of General Assembly and Parts List
68
DVD Traverse Mechanism Assembly and Parts List
71
DVD Loading Mechanism Assembly and Parts List
73
Electrical Parts List
75
Packing Materials and Accessories Parts List
84
