JVC XV-SA600BK - Loading Assembly Section

XV-SA600BK/XV-SA602SL
9
2.2 Loading assembly section

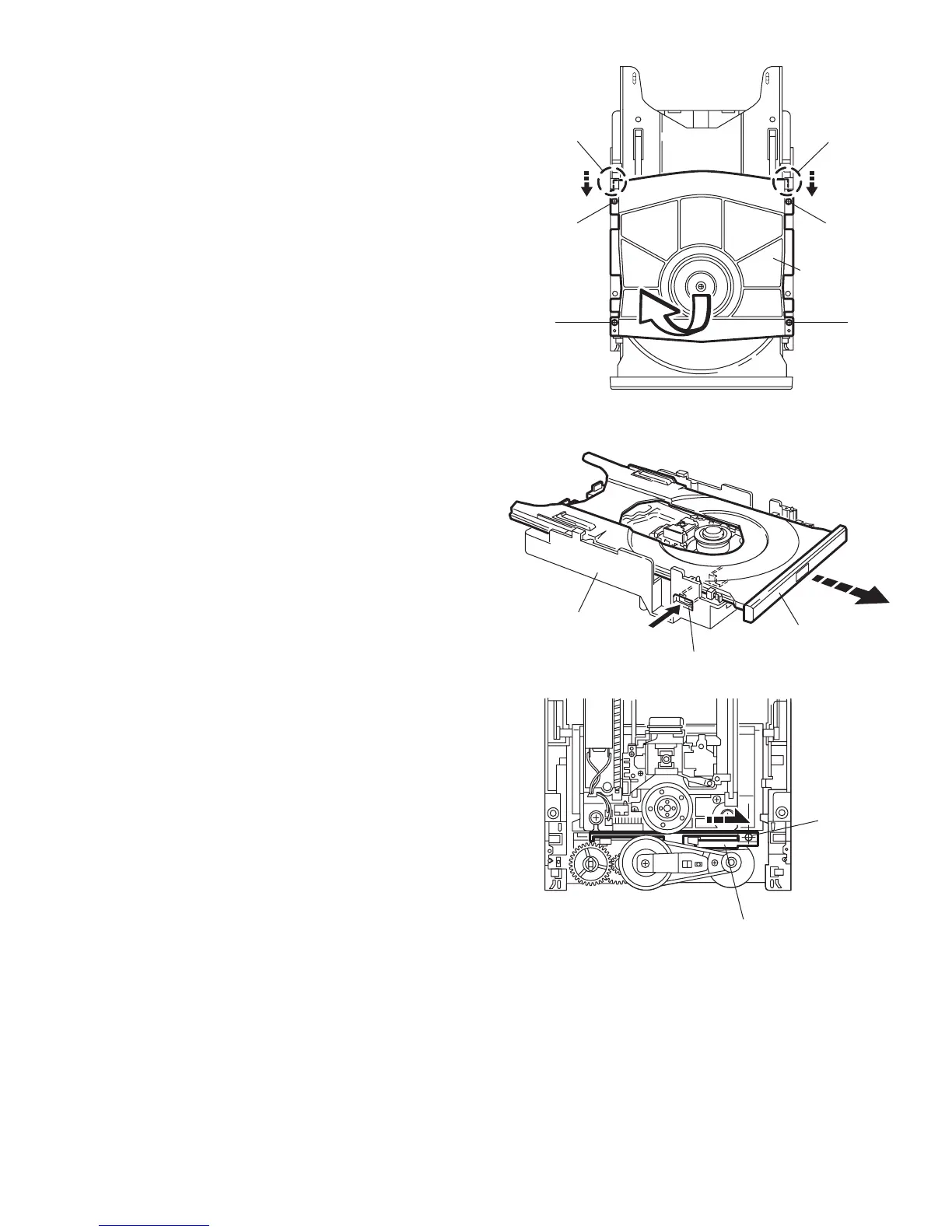

2.2.1 Removing the clamper assembly (See Fig.2-8)
(1) Remove the four screws A attaching the clamper assembly.
(2) Move the clamper in the direction of the arrow to release
the two joints a on both sides.
ATTENTION:
When reattaching, fit the clamper to the two joints a.
Fig.2-8
2.2.2 Removing the tray (See Fig2-9. and 2-10)
• Prior to performing the following procedure, remove
the clamper assembly.
(1) Push b of the slide cam into the slot on the left side
of the loading base until it stops.
(2) Draw out the tray toward the front.
ATTENTION:
Before reattaching the tray, slide the
part c of the slide cam to the right as
shown in Fig.2-10.
Fig.2-9
Fig.2-10
Joint a
Joint a
AA
A A
Clamper
assembly
Push
Tray
Loading base
b
Part
c
Slide cam
