K-Rain KRX6 - Power Supply

Power Supply
® This unit can run off a 50Hz
external transformer with
an output of 24VAC 50Hz
L Input: 24V AC 50Hz
Output: Max 1 amp
L To stations:
24V AC 50/60Hz.
0.5 amp max
L To master/pump:
24V AC 0.25, amp max
L Overload protection:
Standard 20mm
1 amp fuse
® Transformer and
fuse capacity must
be compatible with
output requirements
® Output circuits should
be installed and
protected in accordance
with wiring rules

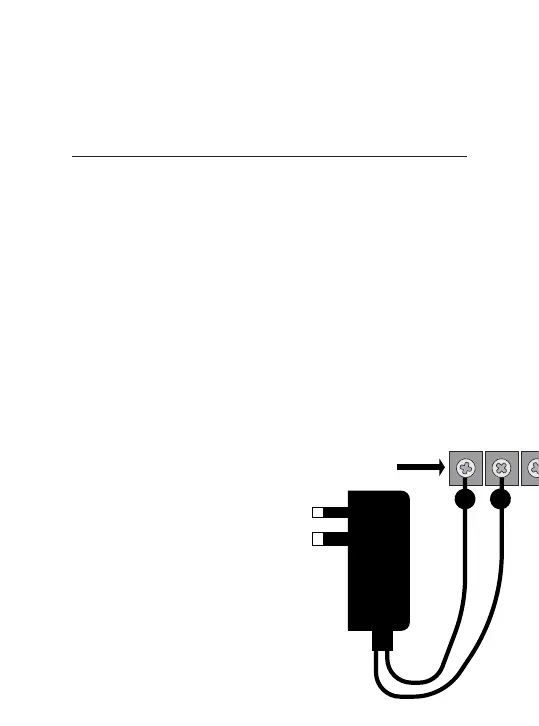

® Connect each wire from
the power pack to the AC
slots as shown below
® Note there is no polarity
to the wires; it does
not matter which wire
connects to which AC slot
Installation
AC
AC
24V AC
POWER
PACK
TERMINAL BLOCK
