Kaadas K13-3D - Explosive view

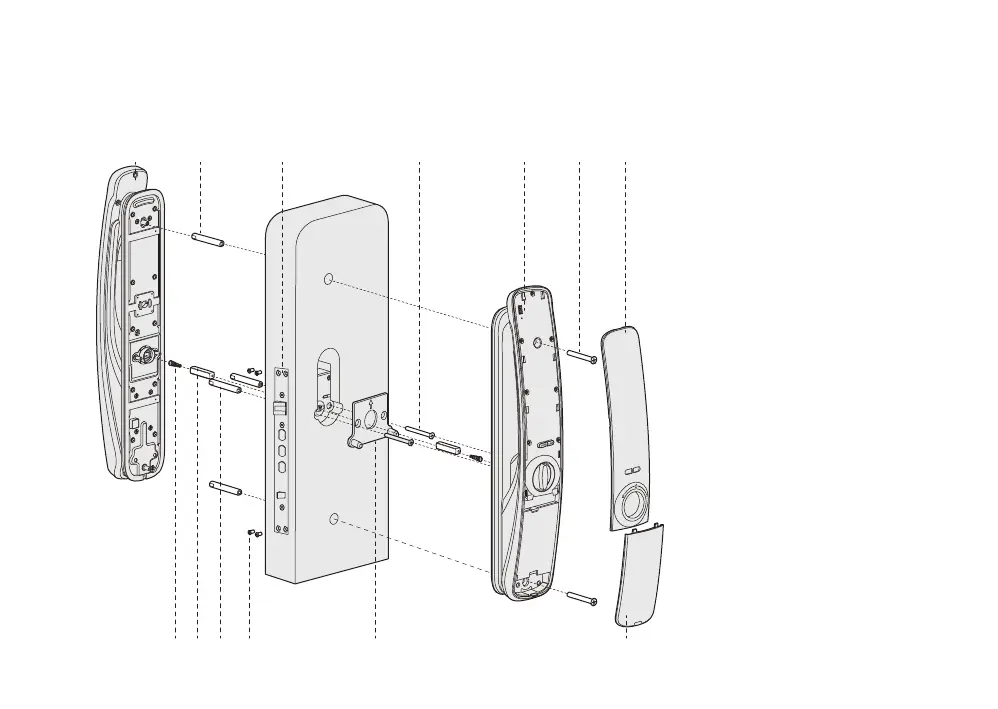

Explosive view
Understanding the installation of a three-dimensional assembly drawing is beneficial to understand lock
structure.
1.Front panel
2.M6 Connecting screw bolt
3. Mortise
4.M5 screws (2)
5.Back panel
6.M6 Screws (2)
7.Back cover
8.Springs (2)
9. Square shaft (2)
10. M5 connecting screw bolt (2)
11. Screws for mounting mortise (4)
12.Mounting Plate
13. Battery cover
RES
1
13
2 3 4 5 6 7
8 9 10 11 12
