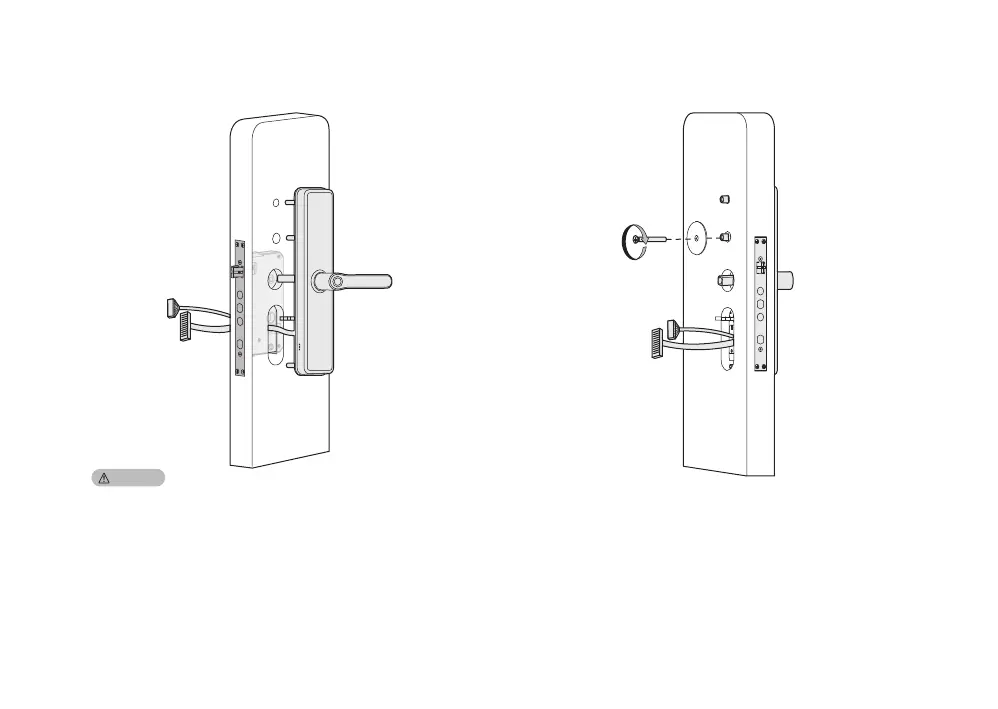

3. Pass the connection cable through the top bore.
Then align and insert square shaft into mortise hole
to make the front escutcheon against the door closely.
4. Install the mounting plate with fixing screws
tightly against the door.
Mounting screw
Mortise cable
Connecting cable
Mortise cable
Connecting cable
According to door thickness, cut the mechanical
key pick into proper length. The proper length of key pick
is required to be more than half door thickness but not
pass through the door.
Caution:
To Next Page
