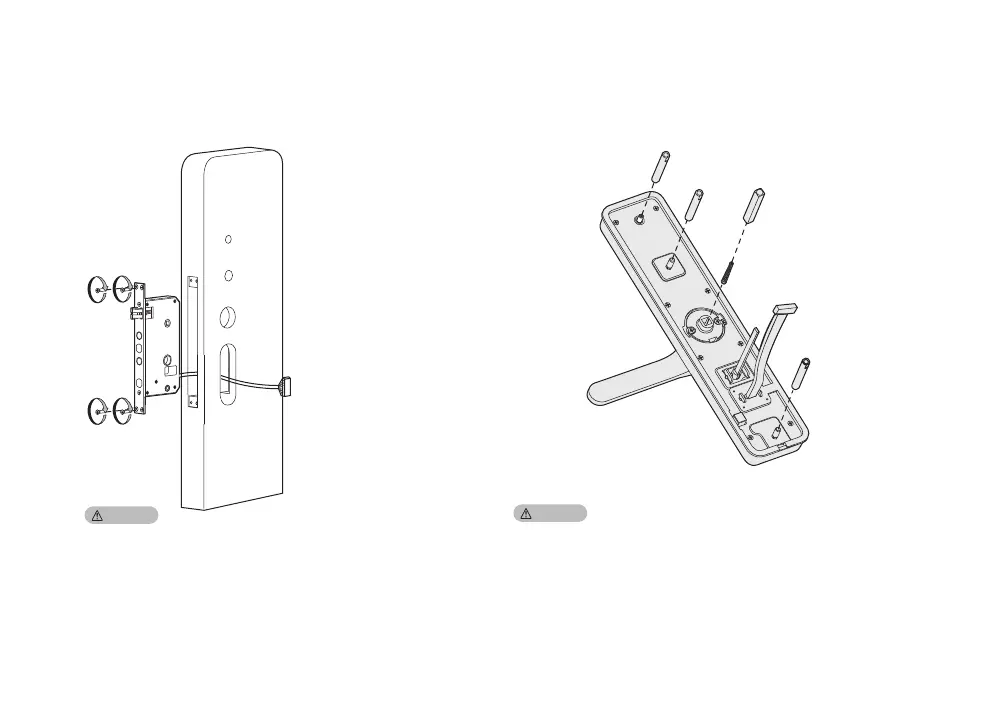

Installation Steps
1. Drill holes according to the installation
template, and put the mortise lock inside
the door. Fix mortise screws.
Cable
screw bolt
screw bolt
screw bolt
square shaft
Pressure spring
(The big end is downward)
2. Fix the connecting screw bolts on the outside
escutcheon, place the square shaft and pressure
spring into the bore.
Connecting cable
Caution:
Make sure the mortise cable through the hole as the
picture shows.
Choose the square shaft and screw bolt in correct
length according to your door thickness.
Caution:
To Next Page
