A. COMBINATION LOCK ASSEMBLY

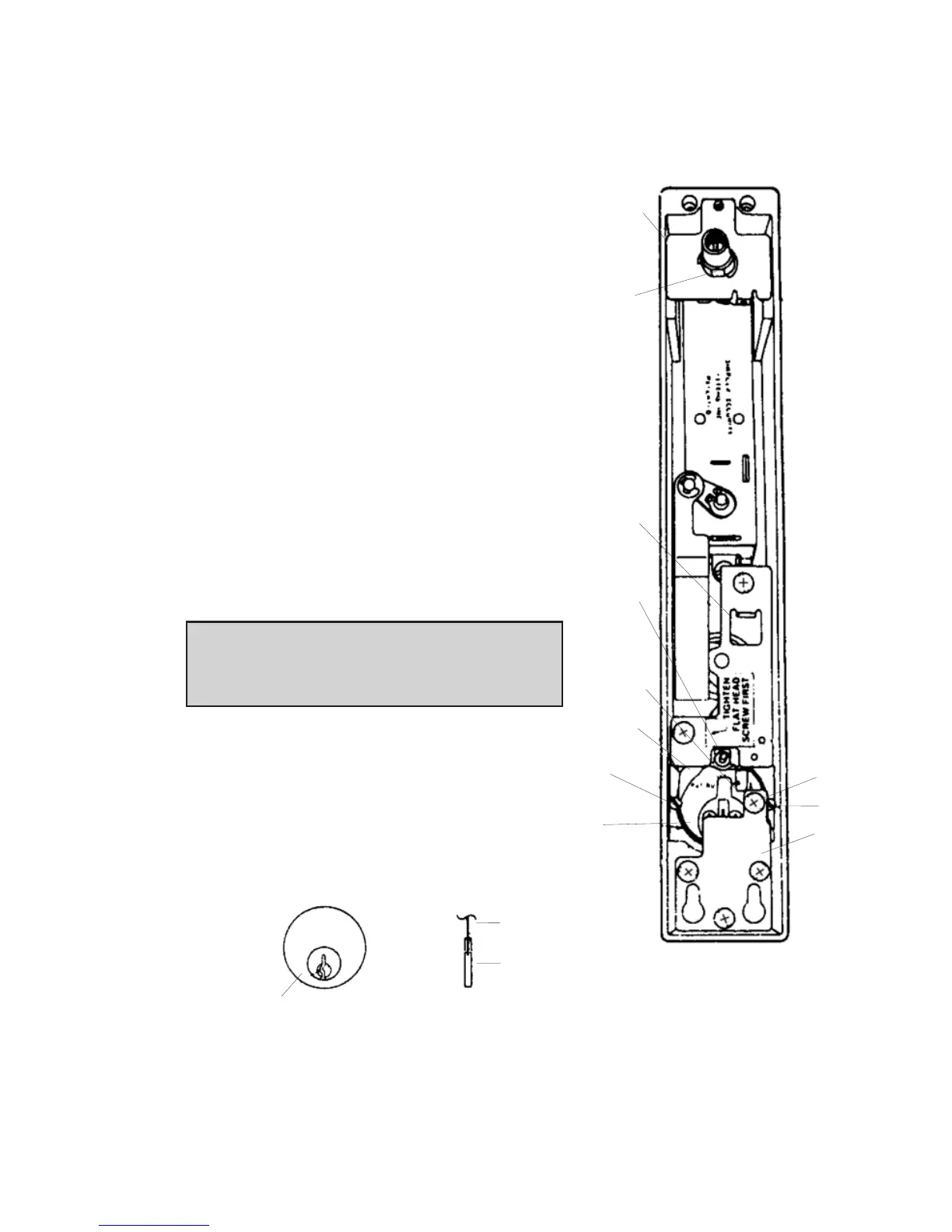

A-1 Cylinder Installation: Remove interposer
assembly (A) by removing one round head
screw and one flat head screw (See Figure 1-1).
A-2 Install Mortise cylinder by turning
cylinder until cylinder cam (E)
contacts lock-in plate (B) (See
Figure 1-1). Turn cylinder to the
left (counterclockwise) less than
one turn until the key is positioned
in pull position (See Figure 1-2), also aligning
to cylinder set screw grooves (See Figure 1-1).
A-3 Assemble two cylinder positioning screws (C).
Make sure the heads of these screws are below
the underside of the cylinder cam (See Figure
1-1).
A-4 Reassemble the interposer assembly (A).
Interposer arm should be positioned central to
the cylinder cam (See Figure 1-3).
A-5 Assemble cam stop screw (D).
Note: Interposer stud to be centered before
mounting combination lock assembly
(See Figure 1-1).
A
Detent Position
of Interposer
Mortise
Cylinder
Code Plate and
Stud Assembly
Combination
Change Sleeve
Interposer
Stud
E
Cylinder in
“Pull” Position
Figure 1-3
Figure 1-2
Figure 1-1
Interposer
Arm
Cylinder
Cam
C
D
B
Partial Rear View
of Narrow Stile Lock
Assembly
Side View
C
