Kaba Simplex 506 Series User Manual

16

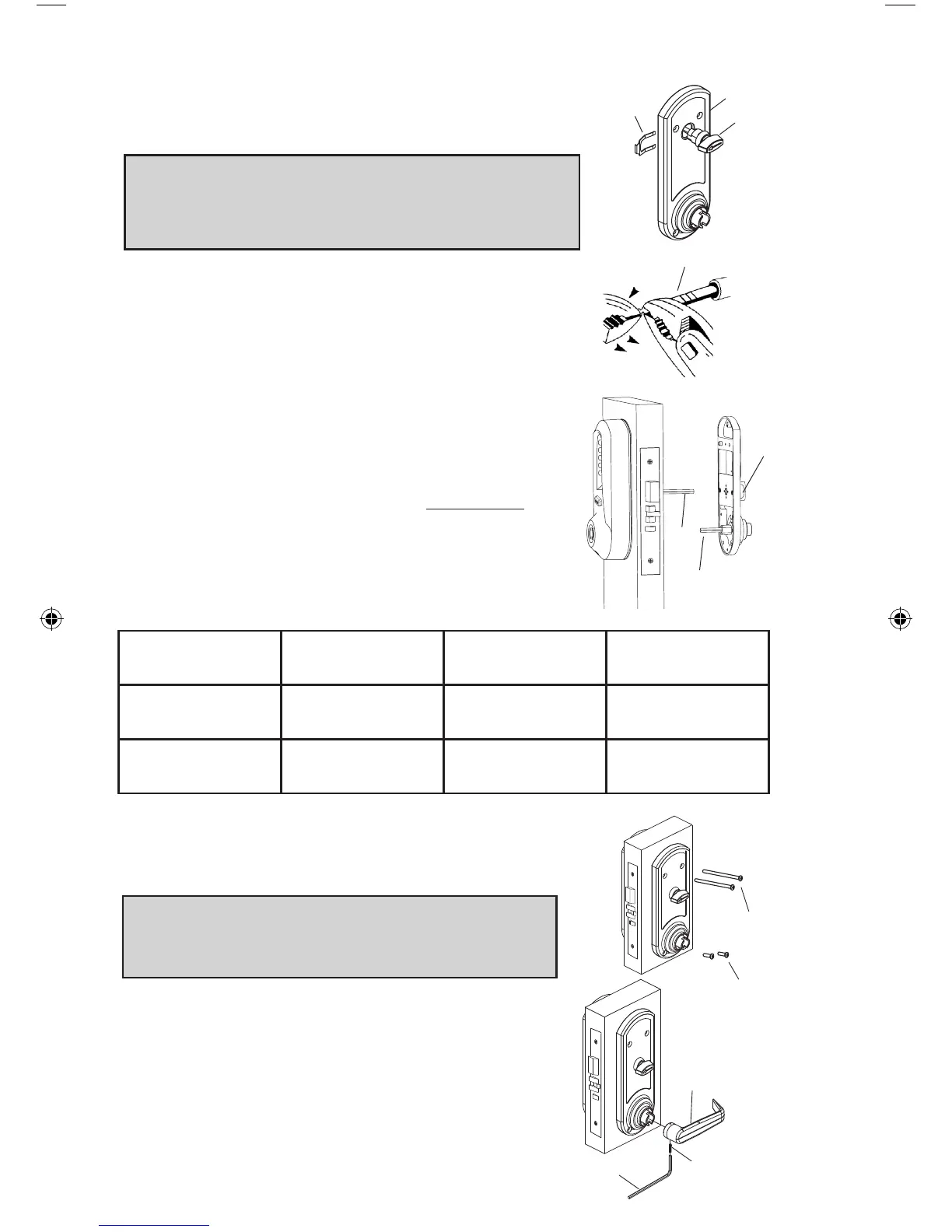

E-2 If the lock comes with a thumbturn for
passage (B), insert the thumbturn through the
inside housing (C) and secure using the spring clip (D).
Note: The tailpiece of the passage actuator (A) is
scored on several places to allow you to easily break
off the section that extends beyond the required
length to engage the passage set cam.
E-3 Hold the tailpiece (A) firmly with a pair of pliers,
adjacenttothedesiredbreakline.Withasecond
pair of pliers, grip the tailpiece on the other side
of the scored line and bend up and down until it
breaks.
E-4 For door thickness of 1
3
⁄4“ – 2”, insert the short
square spindle (G) into the inside housing hub.
Door thickness of 2
1
⁄8“ – 2
1
⁄4“, insert the long
square spindle into the inside unit hub.
E-5 Put the deadbolt thumbturn (T), if applicable
in a vertical position and place the inside trim
assembly on the door so that the upper spindle
(F) engages the thumbturn and mortise hubs,
respectively. Carefully push the inside housing
flush against the door.
Door
Thickness
Inside Mounting
Plate Screws
Top Mounting
Screw
Bottom
Mounting Screws
1
3
⁄
4
” to 2”
(44 mm to 51 mm)
1
7
⁄
8
”
(48 mm)
2
7
⁄
8
”
(73 mm)
5
⁄
8
”
(16 mm)
2
1
⁄
8
” to 2
1
⁄
4
”
(54 mm to 57 mm)
2
3
⁄
8
”
(59 mm)
3
1
⁄
4
”
(83 mm)
5
⁄
8
”
(16 mm)
E-6 Insert and tighten the top and bottom mounting screws.
(Refer to the chart above for correct screw lengths.)
Warning: If using a power drill, please be careful
not to over-tighten as this could cause damage to
the mounting screws and threads.
F. INSTALLING THE INSIDE LEVER
Insert the inside lever (A) onto the inside unit
assembly. Secure the inside lever with the hex
screw (B) (supplied) using the allen wrench (C)
(supplied).
F
G
T
A
C
B
C
B
A
D
Top Mounting
Screws
Bottom
Mounting
Screws
LIT1051_Simplex_506x _Mortise_1012.indd 16 1/7/13 3:13 PM
