18

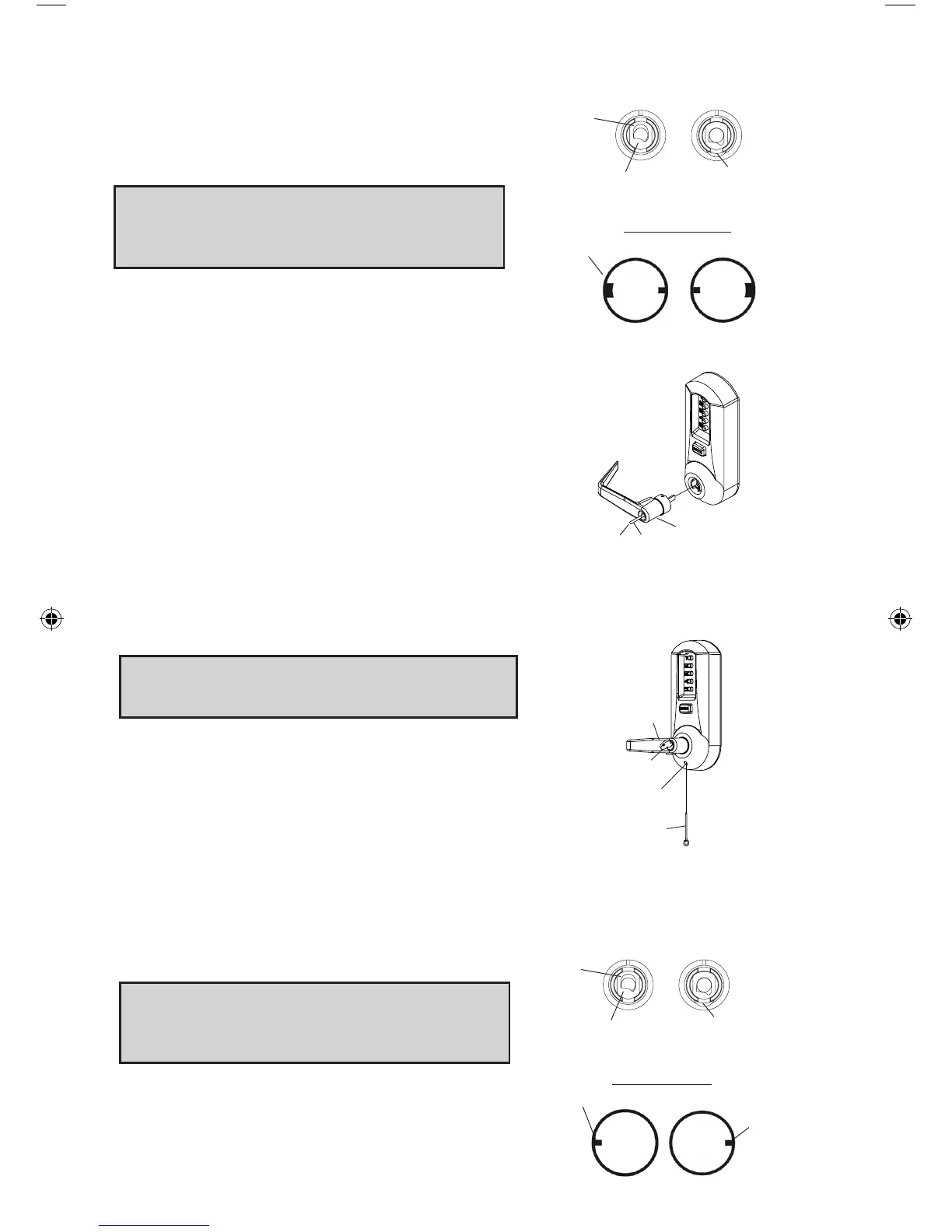

H. INSTALLING / REMOVING
OUTSIDE LEVER
(Key-In-Lever models only)(For interchangeable
and removable cores proceed to section I)
Note: Installing levers to the unit assemblies
before mounting the unit assemblies may
ease initial installation.
H-1 Make certain the lever catch is up as shown (c).
Position the lever sleeve (f) tab correctly with the
respective notch on the lever. The lock comes
shipped with the lever sleeve already installed in
the lock housing. When installing lever, ensure
it is oriented to engage the lever sleeve to
accommodate desired lock handing as shown.
H-2 Insert one of the (supplied) keys (a) into the
outside lever (b) and rotate key counterclockwise
45 degrees. If needed, wiggle the lever up and
down while turning the key to lock onto the lever
H-3 Insert the outside lever (b) until it is flush to the
outside unit assembly. Secure the outside lever
by rotating the key clockwise 45 degrees to
horizontal position. Remove key.
Note: To remove the outside lever from the
outside unit assembly, follow the steps below.
H-4 Insert one of the (supplied) keys (a) into the
outside lever (b) and rotate it counterclockwise
45 degrees. Insert release tool (d) into the small
hole (e) under lever as shown. Gently push lever
catch up until it clicks. Remove tool, then remove
outside lever (b).
I. INSTALLING / REMOVING OUTSIDE LEVER
(Interchangeable / Removable Core Models)
Note: Installing lever to the unit assemblies
before mounting the unit assemblies may
ease initial installation.
I-1 Make certain the lever catch is up as shown (c).
Position the lever sleeve (f) tab correctly with the
respective notch on the lever. The lock comes
LH
KIL Lever Sleeve
RH
f
c
Correct
Position
Incorrect
Position
b
a
45º
a
b
d
e
c
Correct
Position
Incorrect
Position
RH
LH
IC Lever Sleeve
f
f
LIT1051_Simplex_506x _Mortise_1012.indd 18 1/7/13 3:13 PM
