17
G. CHANGING KEY-IN-LEVER (KIL) CYLINDER
The Simplex 5000 outside lever comes preassembled
with Kaba’s key-in-lever cylinder (Kaba 1599).
To use a different key-in-lever cylinder
follow remaining steps in this section.

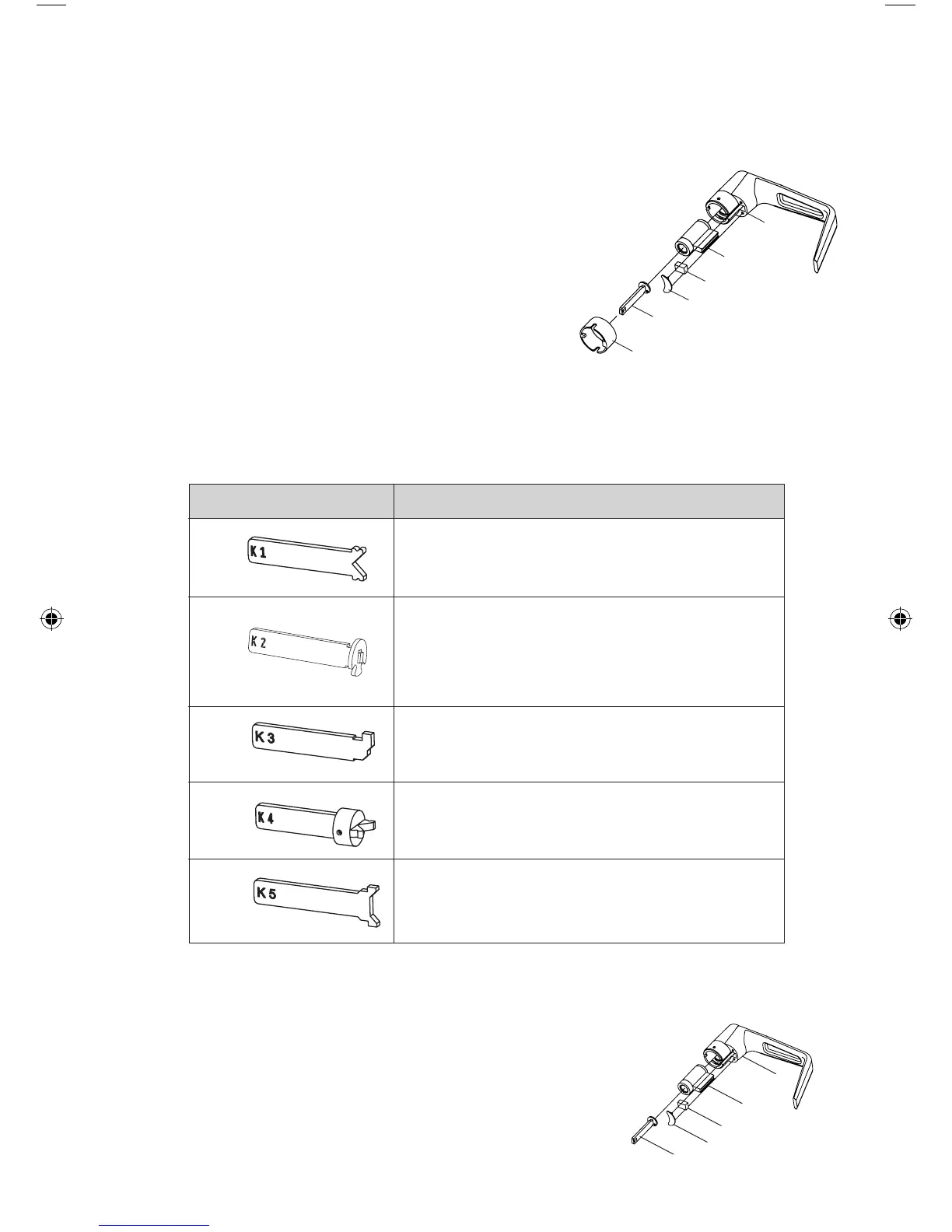

G-1 Remove KIL cylinder (a) from the outside
lever (b) by removing the lever insert (e)
and the cylinder retainer (c) using a
small flat blade screw driver or small
needle nose pliers. Remove the cylinder,
then the tailpiece.
G-2
Determine the proper tailpiece (d) from the
chart below for your KIL cylinder.
You must use a Kaba tailpiece.
The K 2 tailpiece is preassembled with the Kaba 1599.
G-3 Assemble the required tailpiece (d) (supplied with your KIL cylinder).
All tailpieces must be installed vertically for proper
installation, as shown.
G-4 Insert the KIL cylinder into the outside lever
(b) and secure it with the cylinder retainer (c)
and cylinder insert (e) until the KIL cylinder is
snug and unable to move freely.
a
b
c
e
d
f
Assa 65611, Australian: Kaba experT 107K5 &
Boyd KC286, Corbin Russwin 2000-03, Kaba
1599, Schlage 23-001, Schlage Primu 20-760,
Kaba Peaks 1099
Medeco 20W200H1
Arrow C100, Sargent 10 LINE
Marks
Abloy 5277, Abloy 5477, Assa 65691,
Kaba 1539, Kaba Gemini 4730
KIL CYLINDERTAILPIECE
K1
K2
K3
K4
K5
b
a
c
e
d
LIT1051_Simplex_506x _Mortise_1012.indd 17 1/7/13 3:13 PM
