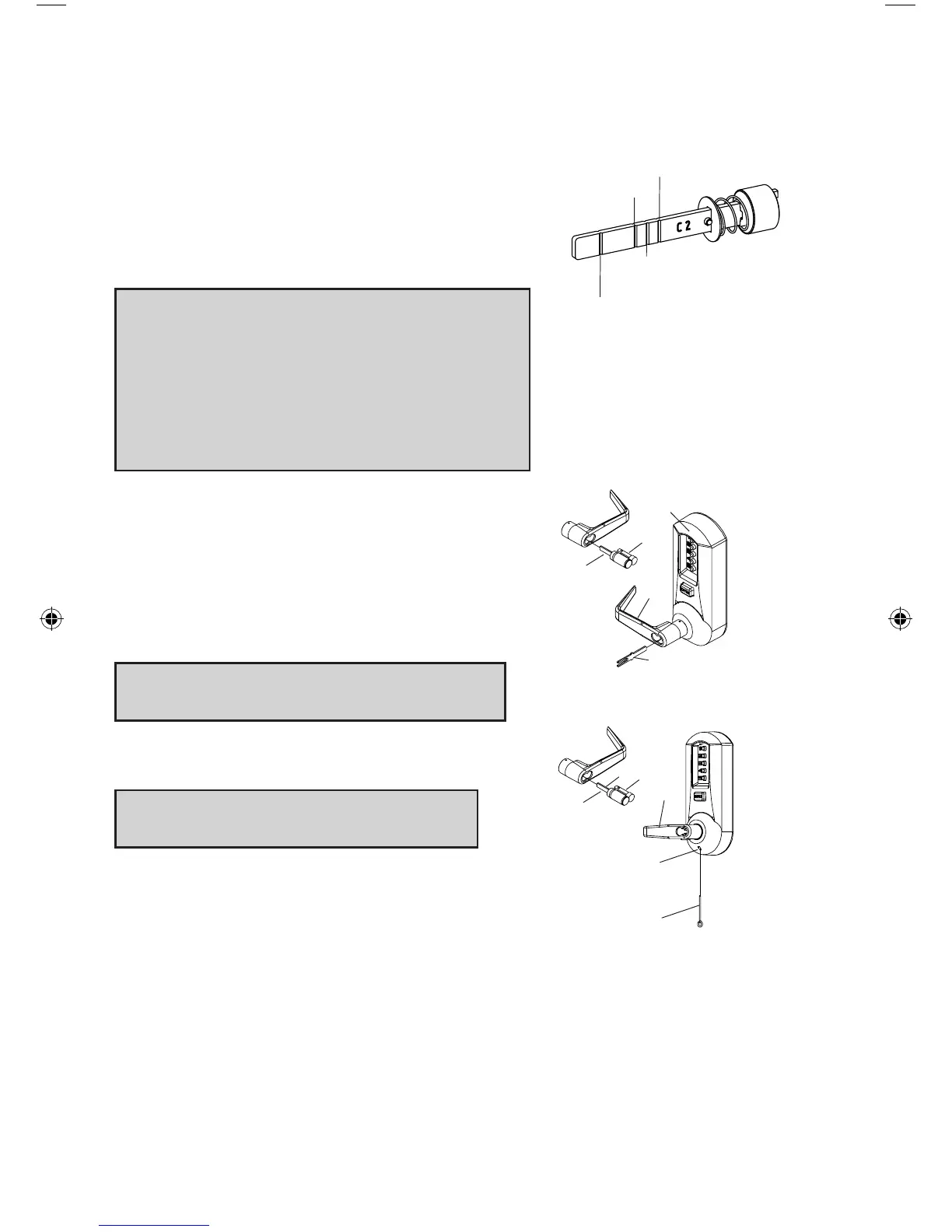

I-5 For ASSA/Medeco/Yale interchangeable/removable cores, the tailpiece

must be prepped for the desired length before installation.

I-6 Notice the score marks on the flat portion

of the ASSA/Medeco/Yale tailpiece. Using

the diagram to the right, locate the score

mark on your tailpiece that matches your

core prep for the intended application,

and break the tailpiece off accordingly.

Note: Using two pairs of pliers, break the tailpiece

to the desired length of the intended application by

holding one pair of pliers on the good side of the

score mark and a second pair on the other side

of the score mark. Slowly move the 2nd pair of

pliers up and down until the unneeded portion of

the tailpiece breaks free.

I-7 Insert the ASSA/Medeco/Yale tailpiece

(e) vertically into the outside lever as

shown. Make certain that you rotate the

tailpiece slightly so that it will align with the

interchangeable/removable core. Insert the

interchangeable/removable core into the

outside lever.

Note: To remove the outside lever from the

outside unit assembly, follow steps below.

I-8 Remove the interchangeable/removable core.

Then remove the tailpiece (e).

Note: You may want to use needle nose

pliers for some tailpieces.

I-9 Insert the lever release tool (d) into the small hole

(f) under lever as shown. Gently push lever catch

up until it clicks. Remove tool, then remove outside

lever (b).

YALE 6 & 7 PIN,

CYLINDRICAL – THIN DOOR

⁄8” (35 mm) to 1

⁄2” (38 mm))

(DO NOT SHORTEN TAILPIECE -

For 1

⁄8” (41 mm) to 2

⁄4” (57 mm))

ASSA/MEDECO 5, 6 & 7 PIN,

CYLINDRICAL – DO NOT

SHORTEN TAILPIECE

ASSA & MEDECO 6 PIN,

EXIT & MORTISE

MEDECO 5 PIN,

EXIT & MORTISE

YALE 6 & 7 PIN,

EXIT & MORTISE

vertical

LIT1051_Simplex_506x _Mortise_1012.indd 20 1/7/13 3:13 PM
