Position Name Function
6 «Right» Jumps to the right.
Moves the cursor position to the next right field.
7 «Left» Jumps to the left.
Moves the cursor position to the next left field.
8 «Up» Scrolls up the menu options.
Increases a parameter value.
9 «Events and information» Operating mode:
Displays the event memory.
10 «Acknowledgement» Acknowledges alarms and warning messages.
If permissible: Resets the fault counter (RESET).
11 «LOAD/IDLE» Toggles between the LOAD and IDLE operating modes.
12 «Remote control» Switches the remote control on and off.
13 «Timer control» Switches clock control (timer) on and off.
Tab. 23 Keys
Indicators

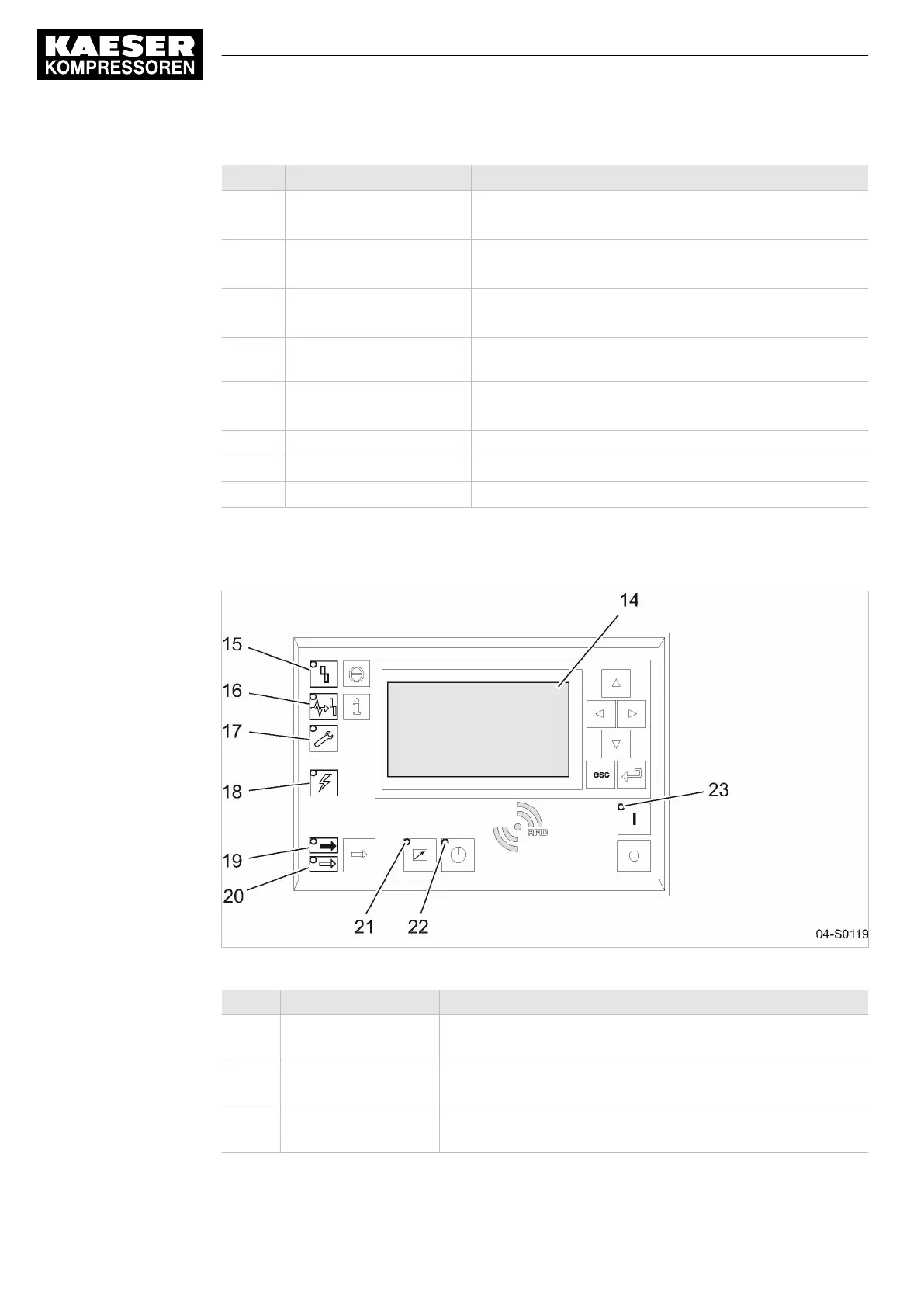

Fig. 8 Indicators – overview
Position Name Function
14 Indicator field or dis‐
play
Graphic display with 8 lines, 30 characters each.
15 Fault Flashes red when an alarm occurs.
Lights continuously when acknowledged.
16 Communications Continuous red illumination if a communication connection
(Ethernet, USS, COM modules) has a fault.
4 Design and Function
4.5 Operating panel SIGMA CONTROL 2
28
Operator Manual Screw Compressor
SM Tri-Voltage, SIGMA CONTROL 2 9_5875 33 USE
