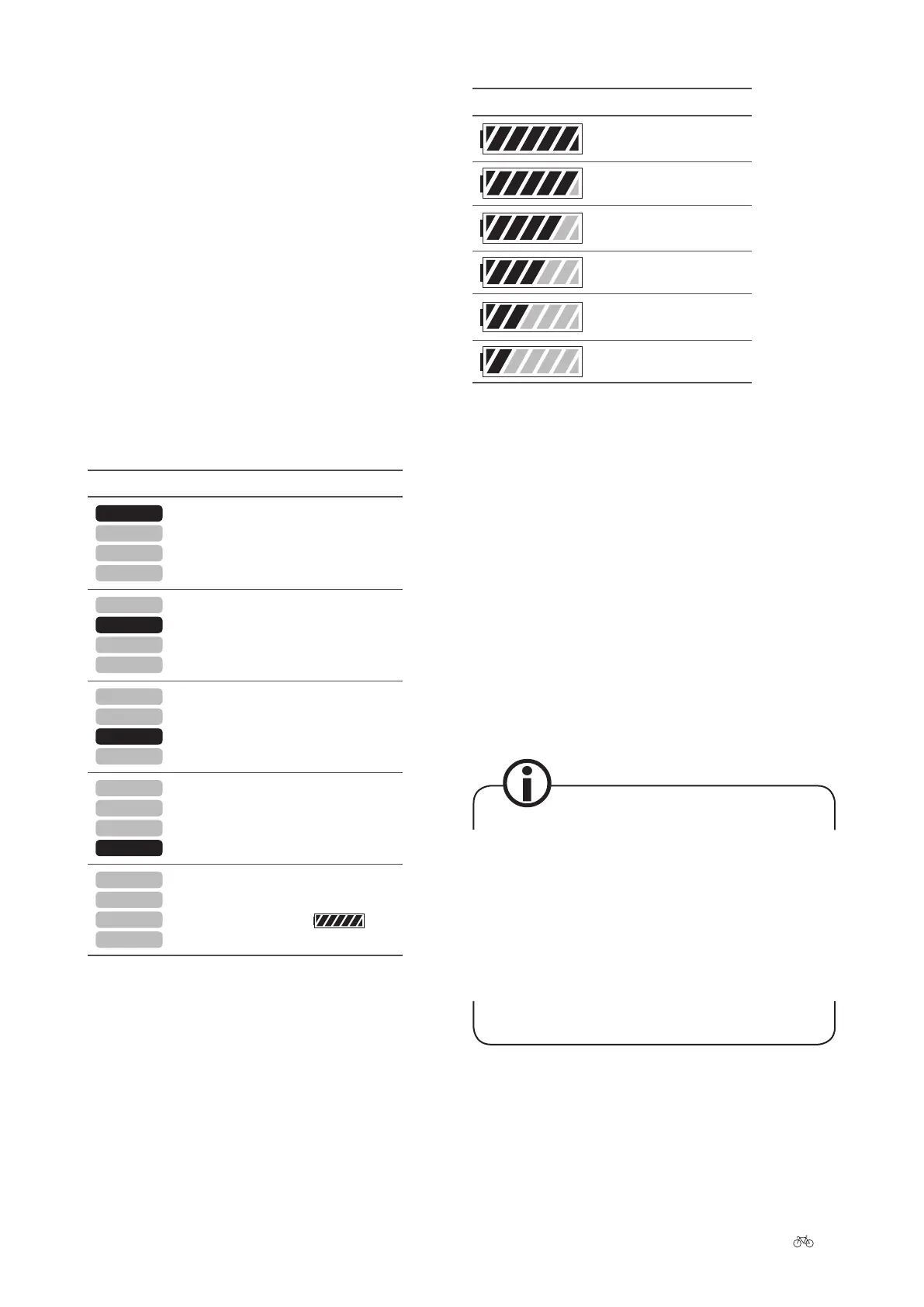

VI User Manual | Impulse Ergo Pedelec 19
5.1.3 Buttons for power-assist level
You can speci the power-assist level using the
arrow buttons.
Each time you press an arrow button, the power
assist changes by one level.
If you press the upper arrow button, the level of
assistance increases by one level each time you
press it.
If you press the lower arrow button, the assistance
becomes weaker each time you press it.
5.1.4 Display of the power-assist mode
The display shows you how much assistance the motor is
currently providing:
5.1.5 Battery charge state indicator
The battery charge state indicator is located at the top on
the right of the display. Using a stylised battery divided
into segments, it shows the charge remaining in the bat-
tery. The lower the charge state of the battery is, the fewer
segments are displayed:
Power-assist mode
DISPLAY ASSIST LEVEL
ERGO
POWER
SPORT
ECO
ERGO: The level of
assistance depends on your
heart rate.
ERGO
POWER
SPORT
ECO
POWER: This means the
assistance is working hard.
ERGO
POWER
SPORT
ECO
SPORT: This means the
assistance is working with
a medium level of eort.
ERGO
POWER
SPORT
ECO
ECO: This means the assis-
tance is only working with a
low level of eort.
ERGO
POWER
SPORT
ECO
STANDBY: Battery indicator
still lights up (
)
If the battery charge state falls below a minimum level,
the assistance switches o via the motor.
If you do not move your Pedelec for 10 minutes, the sys-
tem switches o automatically. If you subsequently want
to ride using the assistance, you will have to switch it
back on using the power button.
5.1.6 Remaining range indicator
Below and to the right of the battery charge state indica-
tor, the distance in km over which you can still travel with
power assist is displayed. This is the remaining range
indicator.
This “remaining distance” is calculated using two
measurements taken during the current journey. One
short and one long measurement give a representa-
tive average value. If the conditions of the journey
change, for example, by riding up an incline aer a
long, at stretch, the value displayed can also change
at short notice. Please consider this factor when plan-
ning your trips. You are probably familiar with this
eect om the remaining range indicator of your car.
DISPLAY BATTERY CHARGE STATE
-.%
.-.%
.-.%
.-.%
.-.%
.-.%
Charge state indicator
