Original User Manual | Xion Pedelec 17

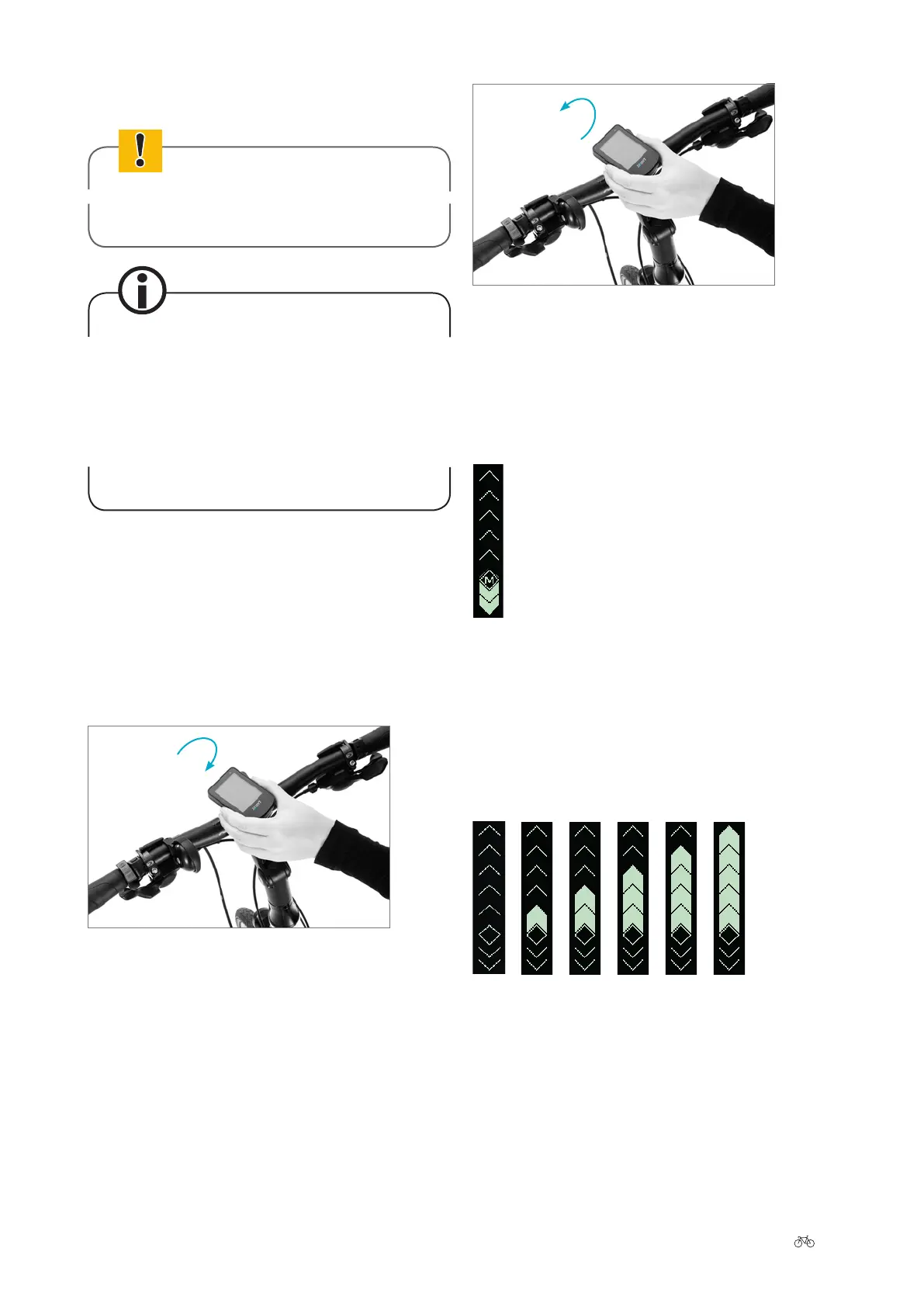

7.2.1 Mounting and removal of the display
Please always turn the Pedelec o rst before you
remove the display ➠
Chapter 7.1.1 “Switching on/o”.
› In order to protect your Pedelec om undesir-
able use by third parties or the, the display
should always be removed om the handlebar
when the Pedelec is not in use.
› You can protect the display om the by means
of a self-tapping countersunk screw for plastic.
Contact your specialist cycle shop about this.
Mounting:
Place the display on the display holder at an angle of
approx. 30 degrees.
Using light pressure, turn the display through 30 degrees
in a clockwise direction so that both components are
aligned with one another. In the process, you can clearly
feel the display lock into place. At the same time, ensure
that the display is correctly aligned.
Removal:
Turn the display approx. 30 degrees anticlockwise on the
display holder. In doing so, the electrical connections are
undone and the display can be removed.
Mounting the display
7.2.2 Menu availability
When the “M” is visible on the display, you can carry out
settings in the menu. The “M” is not displayed while you
are riding the Pedelec or while the Pedelec is rolling.
Menu availability
You can also nd information on the assist modes in
➠ Chapter 7.4.2 “Assist mode”.
The selected assist level is displayed graphically on the
far le of the display. Above the diamond you will see the
assist levels 1 to 5. The higher the selected assist level,
the more assistance the motor provides with constant
pedal force.
Removing the display
Assist levels
