Kamstrup 382 User Manual

3
The phase indications L1, L2 and L3 have more than one function, they indicate one of
three situations described below:
Segments L1- L3 Indicate
On Both voltage and load above minimum limit.
Active phases indicate consumption.
Off The voltage is below minimum limit.
Blinking Segments L1 – L3 function as load indicators. Voltage is above and
load is below minimum limit.
The load indicator is active 4 hours after meter reset.
If the load exceeds the minimum limit and the meter is configured with this reading,
consumption will be indicated via the quadrant reading.
The meter’s LED can be used provided that the quadrant indicator is not selected.
The measured unit is displayed in the right side of the display.
Tariff indicating active tariff.
Terminals
Size: 1,5 – 25 mm
2
1,5 – 35 mm
2
Screw: Pz 2
Torch: 2,5 – 3 Nm

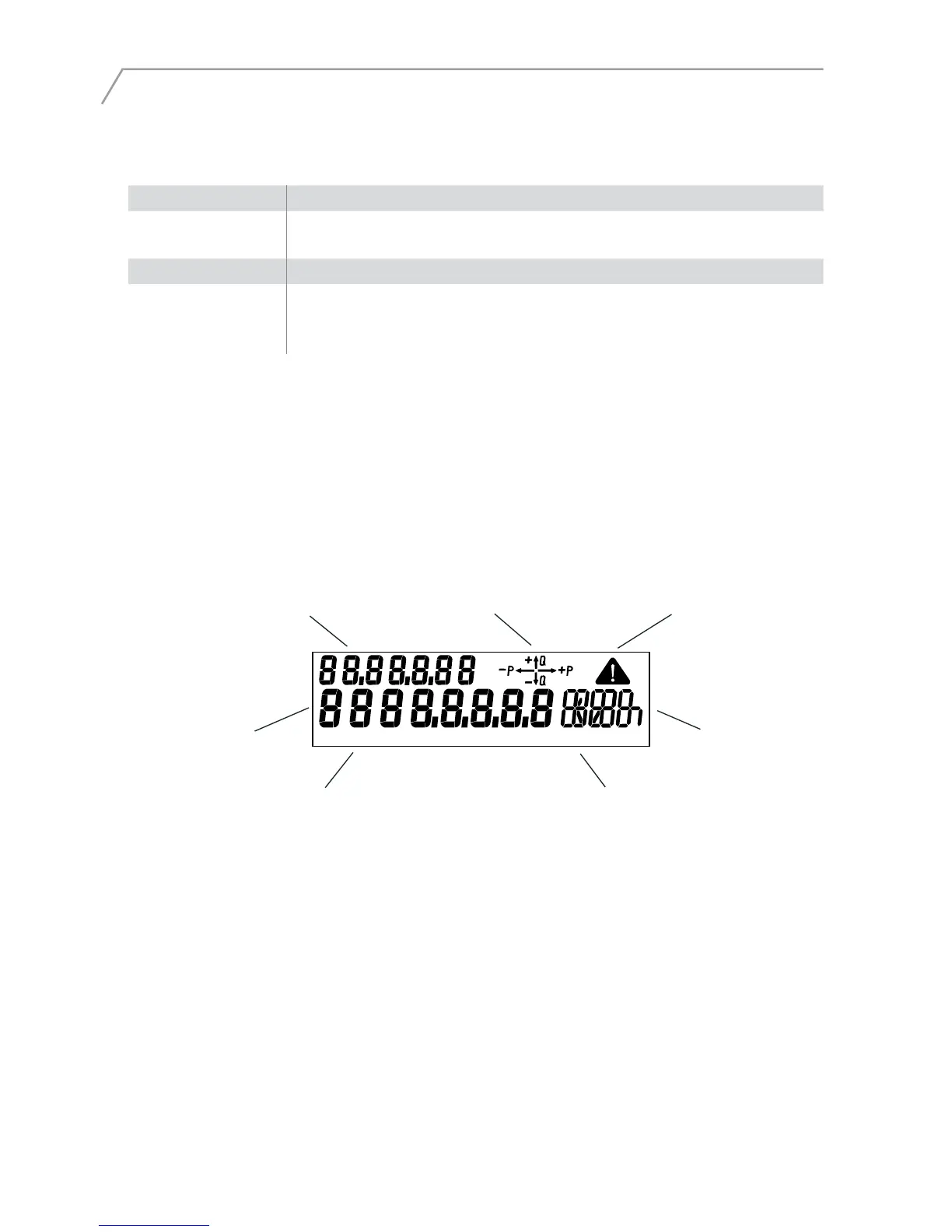

LCD display
L1 L2 L3
T1 T2 T3 T4
7-digit identification field
Quadrant reading Status reading
Unit field
Tariff reading
Phase indication
Value field
