Kamstrup 382 - Installation Dimensions and Diagrams; Physical Dimensions; Connection Schematics

4

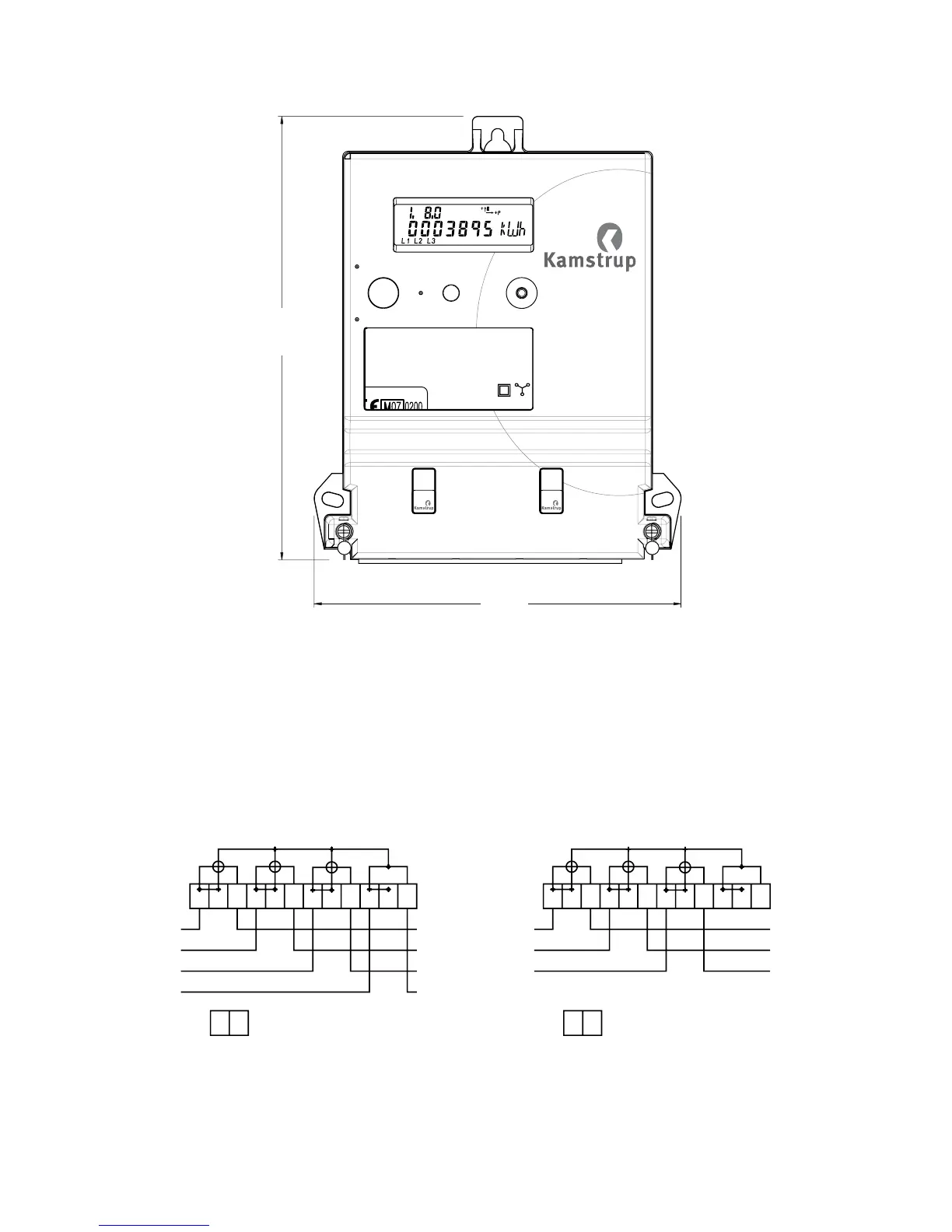

Installation dimensions
Connection diagrams
The valid connection diagram appears from the type label.
3-phase, 4-wire 3-phase, 3-wire (Aron)
201,6
166,9
684-38A-C4-00-010
Sn:
1
3 x230/400V
50 Hz
LED/S0:1000 imp/kWh
0,5-5(85)A
Kl. A (3) EN 62053-23
EN 50470 1/3
2007W13
40 +70C
T10063
-
- -
201,5
166,9
1 2 3 4 5 6 7 8 9 101112
L1
L2
L3
N
P+
S0
+
20
-
21
1 2 3 4 5 6 7 8 9 101112
L1
L2
L3
P+
S0
+
20
-
21
5512-474 GB/04.2007/Rev. A1
