HDBaseT 2.0 KVM Extender Set
4
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment and should have optimal
temperature and humidity.
2) All the power switches, plugs, sockets and power cords should be insulated for
reliable transmission and safety.
3) All devices should be connected before powering on.

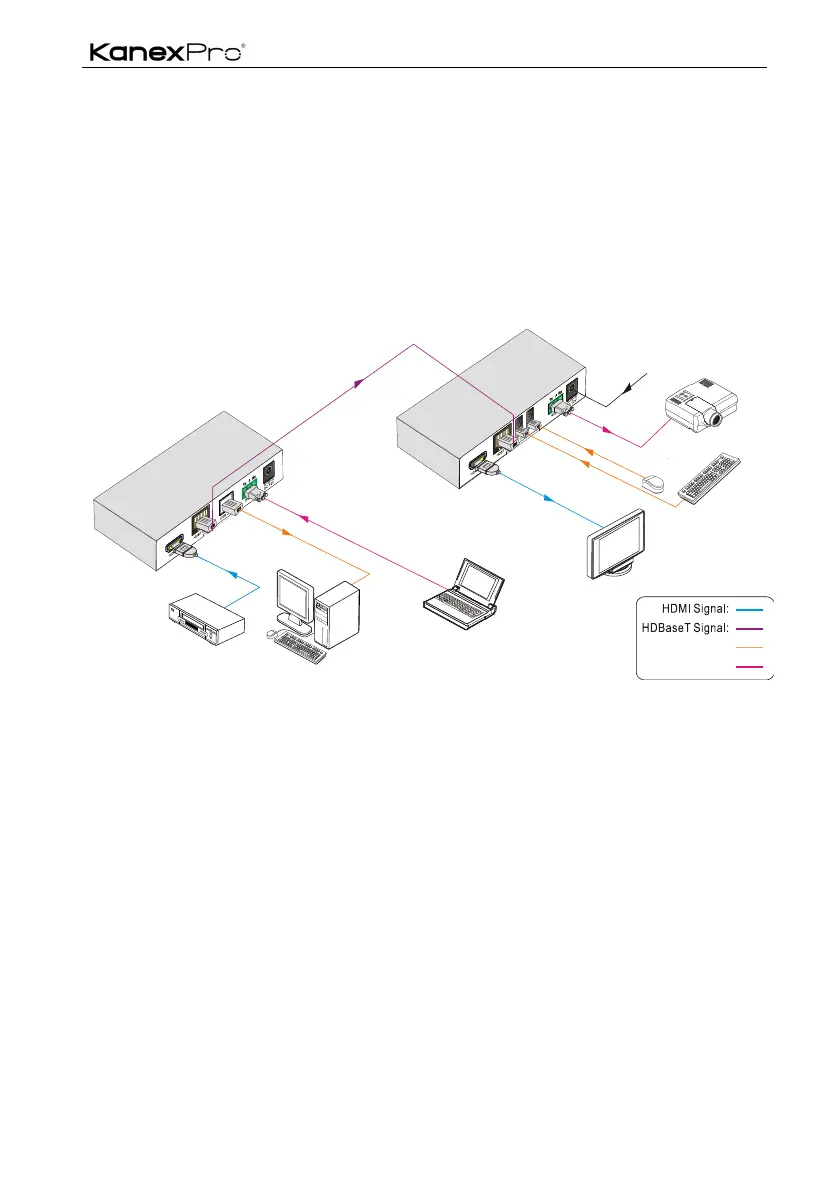

3.2 System Diagram
3.3 Connection Procedure
Step1. Connect HDMI source (such as Blu-ray or PC) to HDMI IN port of the transmitter
with an HDMI cable.
Step2. Connect HDBT OUT port of the transmitter to HDBT IN port of the receiver
through a straight-thru CAT5e/CAT6 cable.
Step3. Connect a HDMI display (such as HDTV) to HDMI OUT port of the receiver with
HDMI cable;
Step4. When using the USB control, do the following:
a) Connect PC to the USB OUT port of transmitter.
b) Connect Mouse/ Keyboard to the USB IN port(s) port of receiver.
Step5. When using the bi-directional RS232 control, do the following:
c) Connect PC to the RS232 port at either the transmitter or the receiver.
d) Connect a third-party device (such as projector) need to be controlled to the
RS232 port at the other end.
