KPC-9612 Version 5.2 July 19, 1994
5
About your KPC-9612

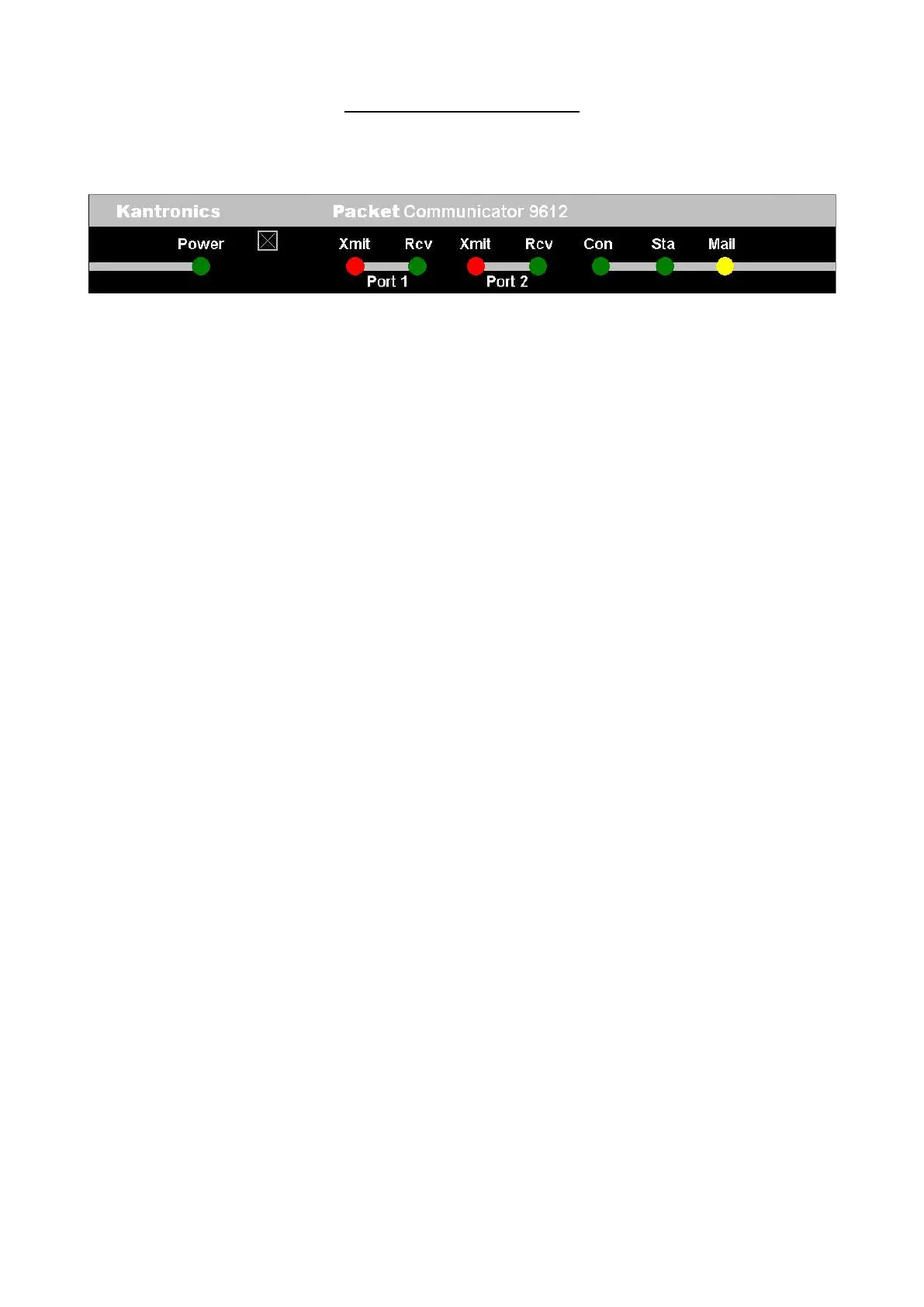

Front Panel
The front panel of the KPC-9612 has one switch and 8 LEDs. Seven of the LEDs are used to indi-
cate status and one is used as a power indicator. The status indicators are divided into three
groups. The left most LED is the power on indicator. Next to this is the power on switch. Following
the power switch is a group of two LEDs for Port 1 (1200 baud), a group of two LEDs for Port 2
(9600 baud) and finally a group of three LEDs for status. All LEDS may be turned off with the
LEDS command.
Controls/Indicators
Power This green LED lights to indicate that the KPC-9612 is turned on.
ON/OFF switch This push/push switch applies power to the KPC-9612. When depressed, the
KPC-9612 is turned on.
Port 1
Xmit This red LED lights when the KPC-9612 is transmitting on radio port 1 (1200 baud,
DB-9 connector).
Rcv This green LED lights when a signal is detected by the 1200 baud modem.
Port 2
Xmit This red LED lights when the KPC-9612 is transmitting on radio port 2 (9600 baud,
DB-15 connector).
Rcv This green LED lights when a signal is detected by the 9600 baud modem.
Status
Con This green LED lights to indicate that a connection exists on the currently selected
I/O stream.
Sta This green LED lights when your station has unacknowledged packets on the cur-
rent I/O stream.
Mail This yellow LED is lit when someone is connected to your PBBS (mailbox) and will
flash any time there is unread mail for your in the PBBS.
