Kapture KPT-522 - Rear Camera Wiring Diagram

16

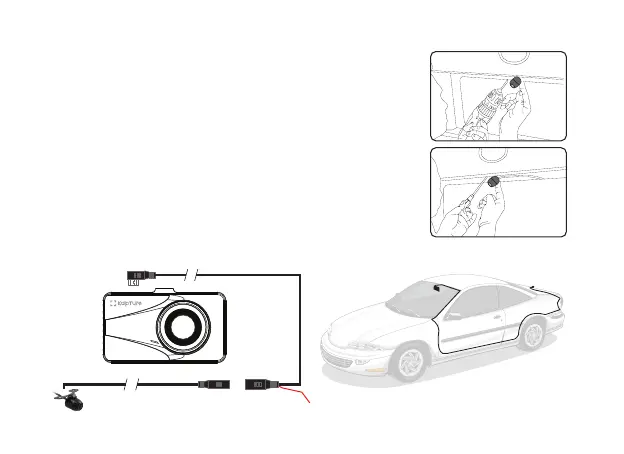

5. Mark the position suitable for the second screw
and drill a small hole for it.
6. Fix the second screw and securely tighten both
screws.
4.5.2 REAR CAMERA WIRING DIAGRAM
Rear Camera Reversing Light Wire6M Rear Camera Cable
