62 Deutsch 5.962-786.0 Rev. 05 (06/13)

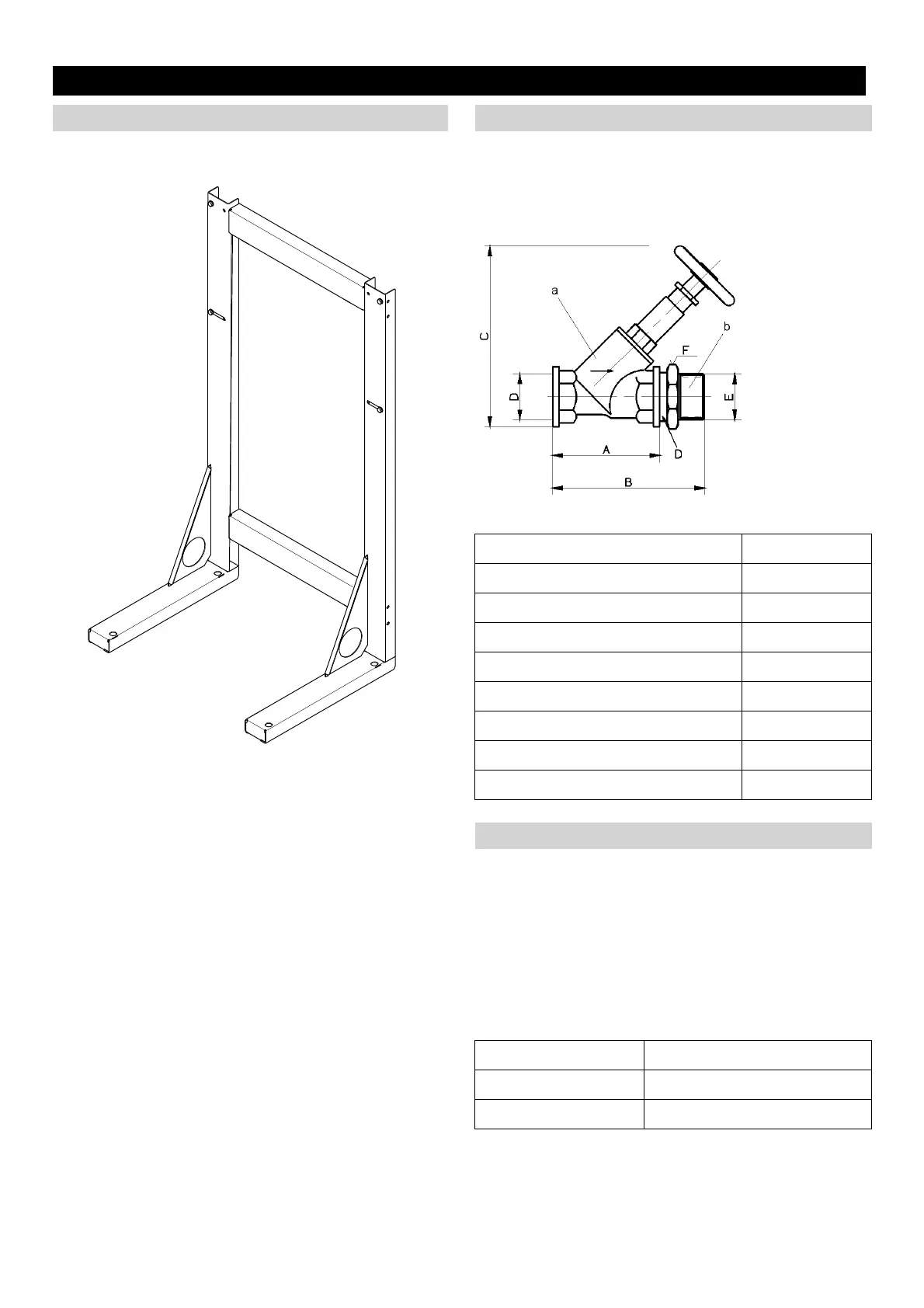

Floor structure for HDC Classic
Order no. 2.641-736.0
Note:
By default, the HDC Classic is designed for wall in-
stallation.
If the wall does not have the required stability, the
floor rack can be ordered optionally.
HDC Classic
Free flow valve max. 2,000 l/h (a), socket design
brass, screw connection part (b) brass, connecting
piece suitable for the water hose.
.
Free flow valve max. 2,000l.
Design 1
Casing made of galvanised steel
Connecting stub, handle, ball and switch shaft
made of stainless steel 1.4571
Stop disc and fastening parts made of stainless
steel 1.4301
Ball seal rings made of PEEK
O ring Viton
Design 2
Casing, connecting stub, handle, ball and switch
shaft made of stainless steel 1.4404
Seals made of PTFE
7 Accessories
7.1 Installation of system 7.2 Installation of water connection
Water inlet max. [l/h] 2000
A [mm] 75
B [mm] 98
C [mm] approx. 100
D R 3/4“
E R 1“
Wrench width F (mm) 34
Order no. free flow valve (a) 6.412-021.0
Order no. screwed part (b) 6.368-010.0
7.3 HP outlet
Nominal pressure PN 315 (80/160 bar)
Nominal width DN 13 (100)
Order no. 6.412-066.0
