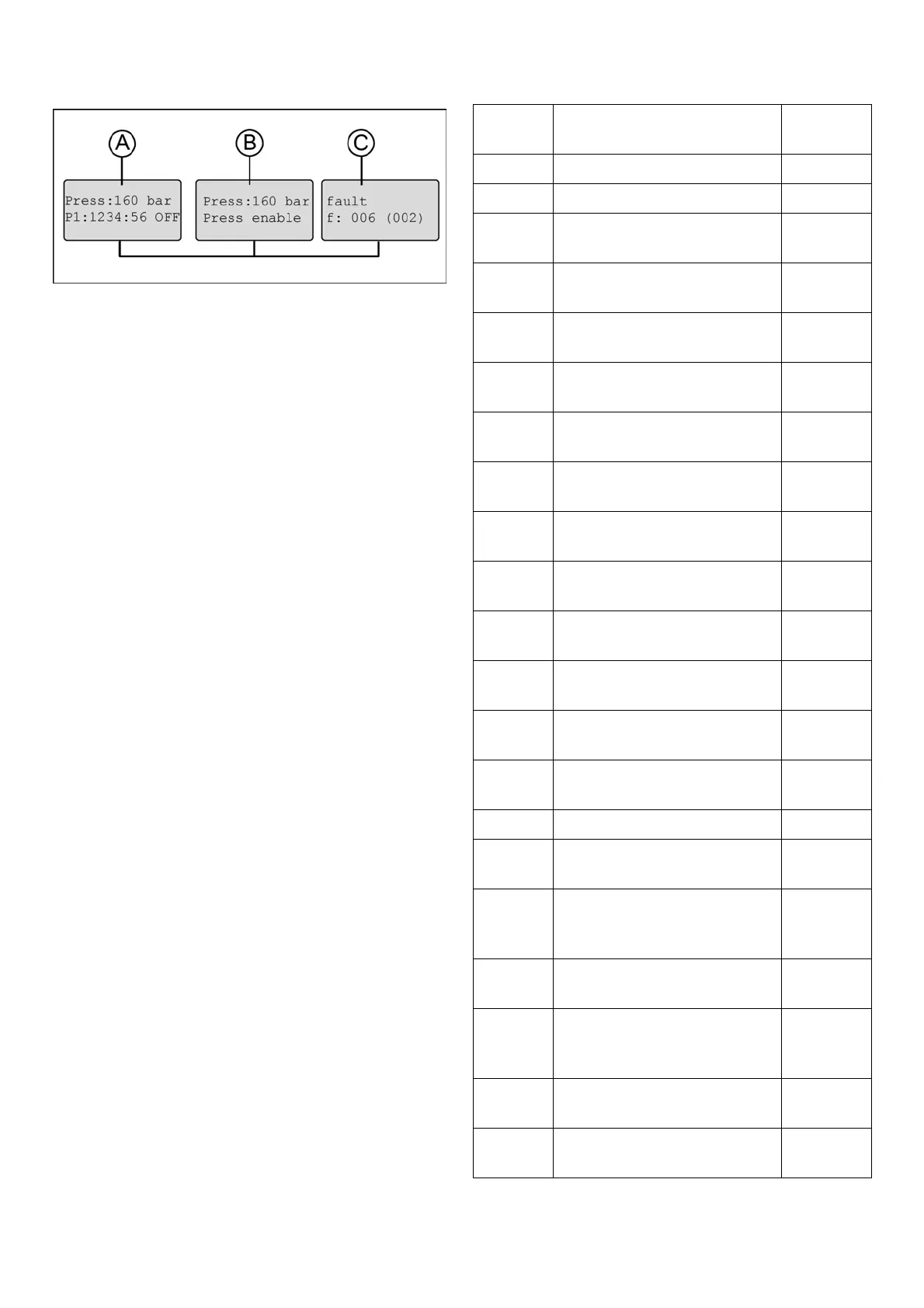

A Device ready
Display of the current system pressure and alter-
nating operating time and the operating status of
the high pressure pumps.
B Device in standby mode
Display of the current system pressure and mes-
sage to activate the device.
C Device has detected faults
Display of the currently present fault codes (alter-
nating if there is more than one fault) and the num-
ber of the currently present faults.
4.6.16 Basic display
4.6.17 Fault codes
Error
number
Error description Error
type
01 Control voltage is missing 2
02 Display, no communication 2
10 Motor protection switch high
pressure pump 1
1
11 Motor protection switch high
pressure pump 2
1
12 Motor protection switch high
pressure pump 3
1
13 Motor protection switch high
pressure pump 4
1
18 Winding protection contact
high pressure pump 1
1
19 Winding protection contact
high pressure pump 2
1
20 Winding protection contact
high pressure pump 3
1
21 Winding protection contact
high pressure pump 4
1
26 Motor protection switch ad-
vance pressure pump
2
30 Switch "On" constantly occu-
pied (control input)
2
31 Switch "On" constantly occu-
pied (display)
2
32 Switch "Off" constantly occu-
pied (control input)
2
40 Water shortage 2
41 Water temperature is too
high
2
42 Leakage switch-off 1 (30
minutes of continuous oper-
ation).
2
43 Leakage switch-off 2 (minor
leakage)
2
50 Pressure sensor for high
pressure does not transmit
signal
2
51 Flow monitor does not trans-
mit signal
2
52 Temperature sensor does
not transmit signal
2
