64 Deutsch 5.962-786.0 Rev. 05 (06/13)
The high-pressure ball valve with short plug key,
socket design, is always required.

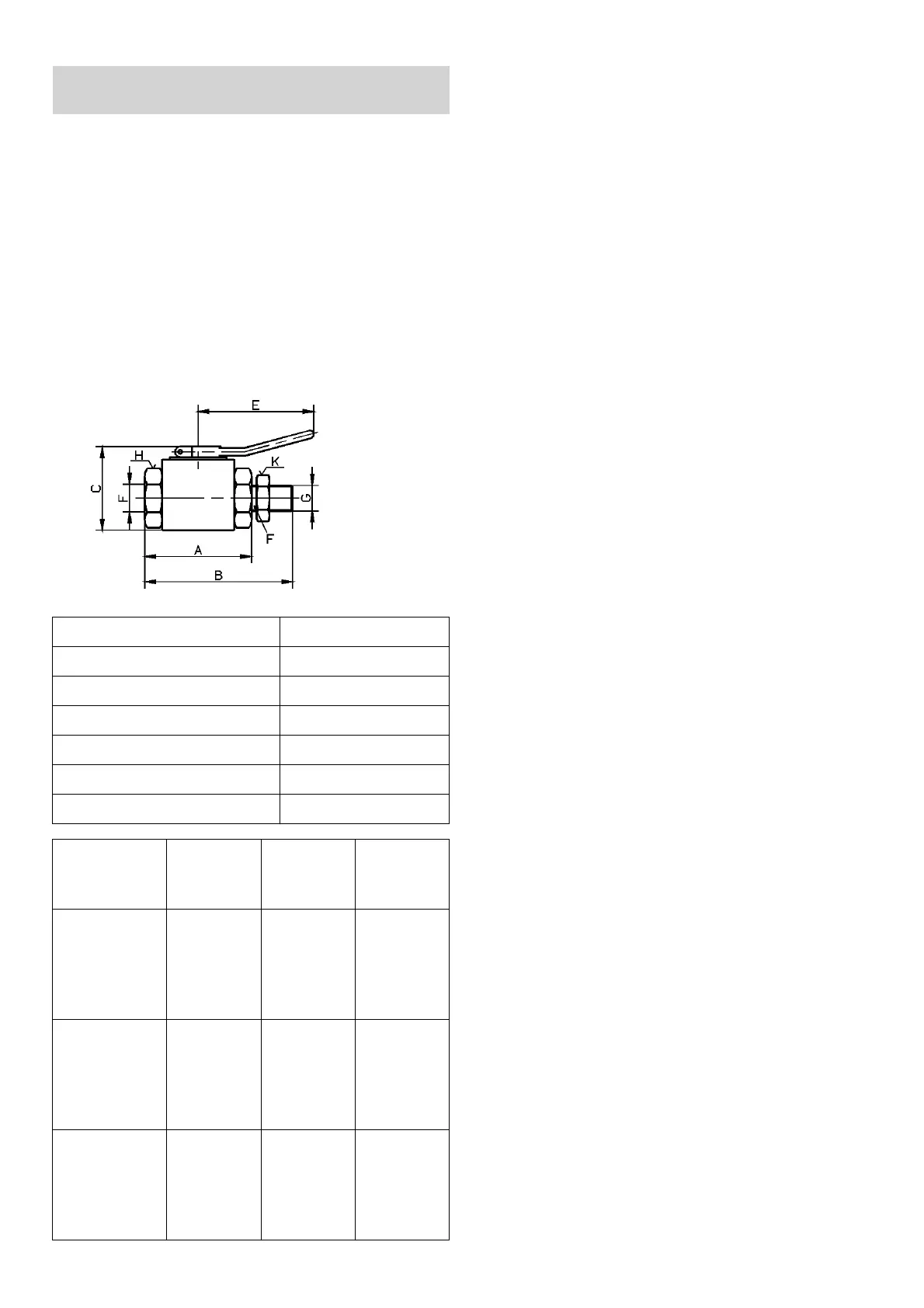

High pressure ball valve
7.4 Installation of high pressure connec-
tion
A [mm] 83
B [mm] 115
C [mm] 62
E [mm] 90
F [mm] R 1/2“
Wrench width H [mm] 32
Wrench width K [mm] 24
Flow rate
max. [l/h]
4000 6000 8000 /
9000 /
12000
Order no.
HD ball valve
nickel-plated
6.412-
067.0
DN 20, 3/
4“
PN 315
6.412-
068.0
DN 25, 1“
PN 315
6.413-
505.0
DN 32,
1 1/4“
PN 4 00
Order no.
HD ball valve
stainless
steel
6.413-
503.0
DN 20, 3/
4“
PN 350
6.413-
502.0
DN 25, 1“
PN 350
6.413-
501.0
DN 32, 1
1/4“
PN 400
Order no.
HD ball valve
stainless
steel
6.412-
492.0
DN 20, 3/
4“
PN 140
6.412-
193.0
DN 25, 1“
PN 140
