Deutsch 5.962-786.0 Rev. 05 (06/13) 69
– Input: M 22 x 1.5 mm eyelet with screw connection
– Outlet M 22 x 1.5 mm external thread with eyelet

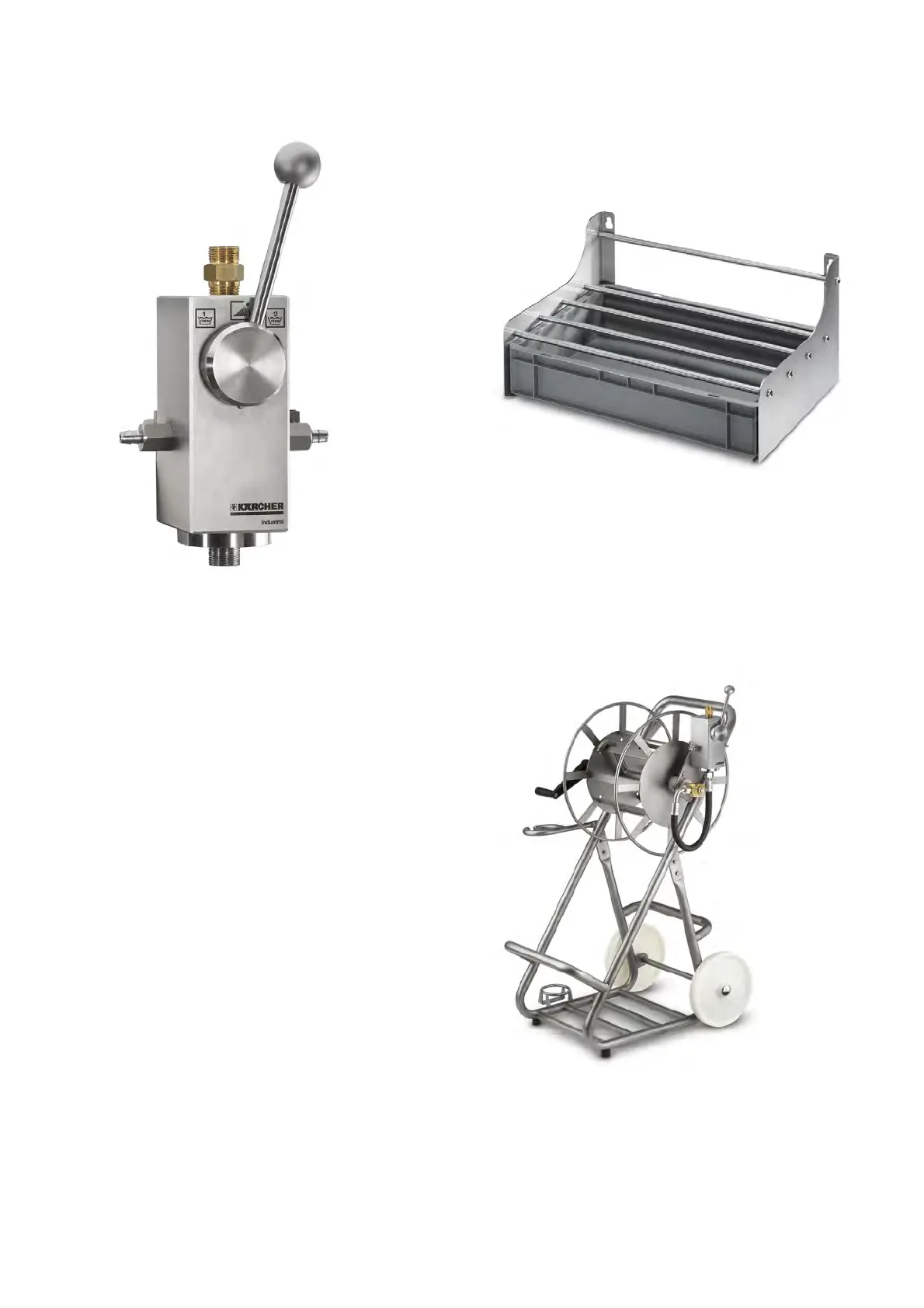

Features:
– One lever operation
– suitable for two detergents
– Stainless steel casing
– Stainless steel nozzle elements
– Adjustable via the dosing valve
– Suction lines with filter
 Use, see installation examples 7 and 8
(annex)
Wall console for detergent
Order no. 2.641-703.0
Dimensions (L/W/H) 490x410x425 mm
For the accommodation of two detergent cans 10-20 l
Mobile detergent unit
Order no. 2.641-704.0
Dimensions (L/W/H) 770x760x1300 mm
Weight approx. 48 kg
Dosing unit double, for two detergent tanks 20 l each,
HD connection hose DN8 1.5 m, admissible max.
35 m HD hose
 Use, see installation examples 9 and 10
(annex)
7.6.5 Decentralised detergent supply
