Kärcher HDC Series User Manual

22 Deutsch 5.962-786.0 Rev. 05 (06/13)
A Water inlet G 3/4"
B High pressure output M 22x1.5
C Overflow / water tank
1 Hose line, DN 20, G 3/4", L=1500 mm, operating
pressure 10 bar, max. temp. 100°C, smallest
bending radius 130 mm
Order no. 6.391-825.0*
2 Sealing ring 17x24x2
Order no. 6.362-146.0
3 Sealing ring 17x24x2
Order no. 6.362-146.0*
4 Double nipple/screw-in part, G3/4", brass
Order no. 6.387-239.0
5 Free flow valve, DN 20, G 3/4", internal thread
Order no. 6.412-021.0
6 Reducing nipple/screw-in part, DN 20, G 3/4" to
G1", brass
Order no. 6.386-010.0
7 Socket galvanised, DN 25, G 1"
Order no. 7.387-151.0
8 Fixed pipe, G 1" (alternative)
9 Fixed pipe, G 1/4"
10 HD hose, DN 12, operating pressure 160 bar,
L=1,500 mm, max. temperature 125, smallest
bending radius 175 mm, M 22x1.5
Order no. 6.389-126.0*
11 Reducing nipple, M 22x1.5 to G 1/2"
Order no. 5.402-001.0
12 HD ball valve, DN 15, G1/2" (internal thread),
stainless steel, PN 140
Order no. 6.412-491.0
HD ball valve, DN 13, G1/2" (internal thread),
stainless steel, PN 400
Order no. 6.413-500.0
HD ball valve, DN 13, G1/2" (internal thread), nick-
el coated, PN 315
Order no. 6.412-066.0
13 Hose clamp A16-27x9-WH
Order no. 7.373-023.0*
14 PVC hose, DN 20
Order no. 6.389-696.0*
*) included in the standard scope of delivery (SL)

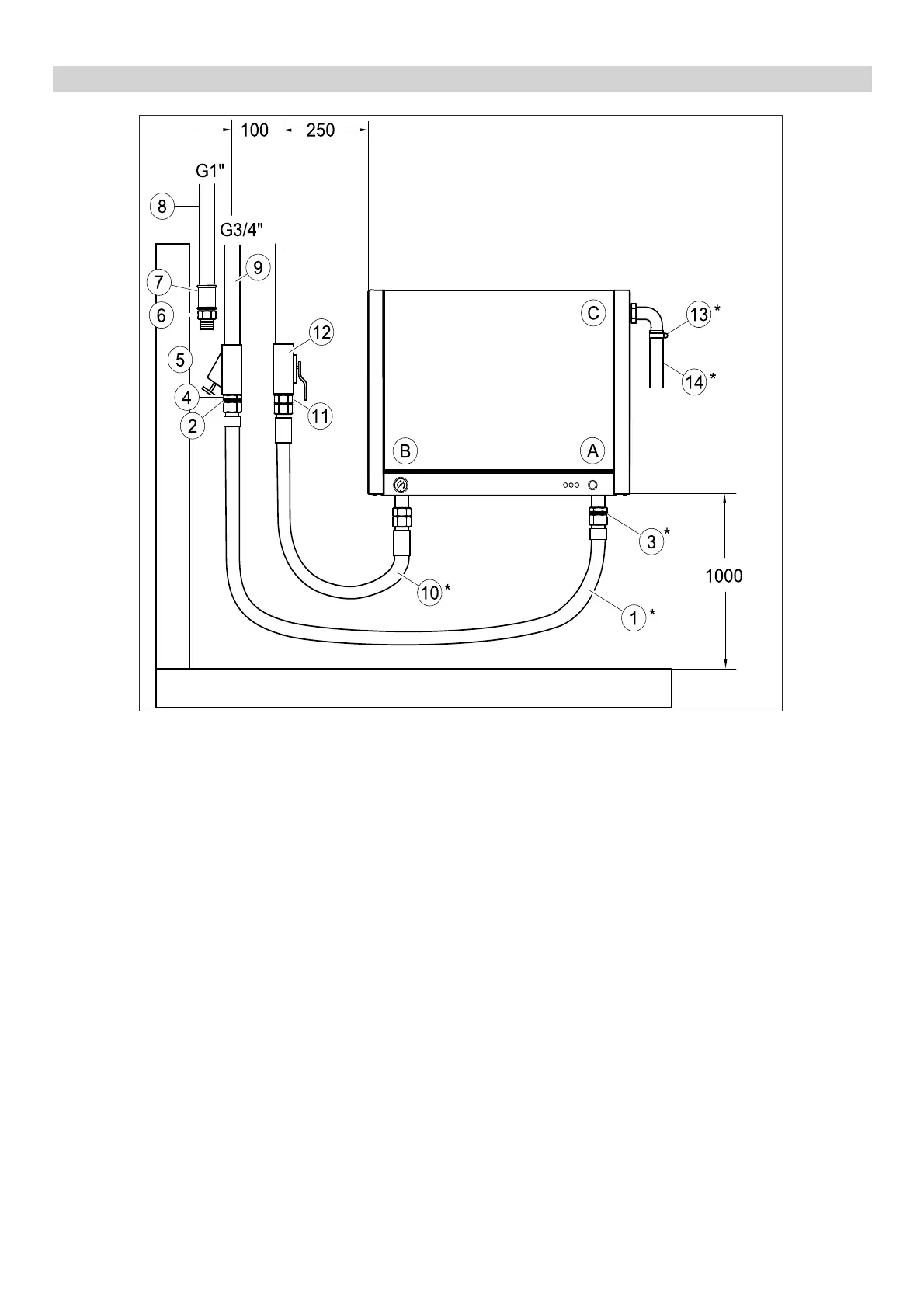

3.5 Sample installation HDC Classic
