Deutsch 5.962-786.0 Rev. 05 (06/13) 71
Order no. 2.637-750.0

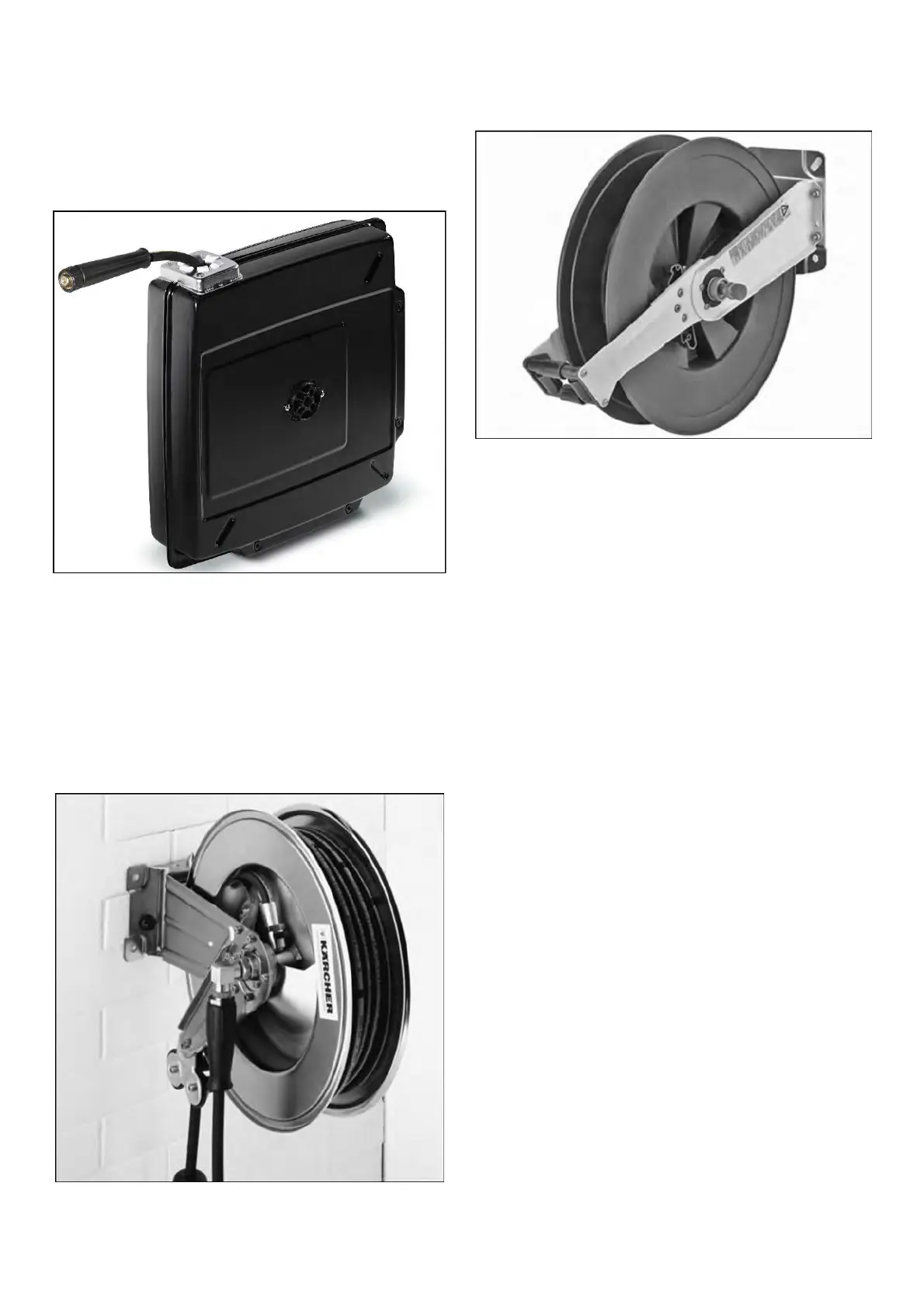

Automatic hose retractor in open aluminium casing
with plastic cover, spring-fed retraction with random
lock mechanism, hose guide. Equipped with 10 m of
high-pressure hose DN 8 including wall mount, high-
pressure connection hose DN 8 1.5 m and fastening
material.
Hose drum, automatic
Order no. 6.391-421.0
Automatic hose retractor in stainless steel.
– with swivelling holder for wall or ceiling installation
– Hose stop matching hose diameter 13.5-22 mm
– Hose connection M22 x 1.5
– Operating pressure up to max. 20 mPa
– Operating temperature max. 150 °C
Delivery does not include high-pressure hose.
Hose drum, automatic
Order no. 2.639-919.0
Automatic hose retractor with painted steel casing
and wall mount, with plastic reel, spring return, hose
guide. Delivery does not include high-pressure hose.
