Kato Imer 17VXE - Overall Dimensions and Working Ranges

7 – 3
SPECIFICATIONS
7

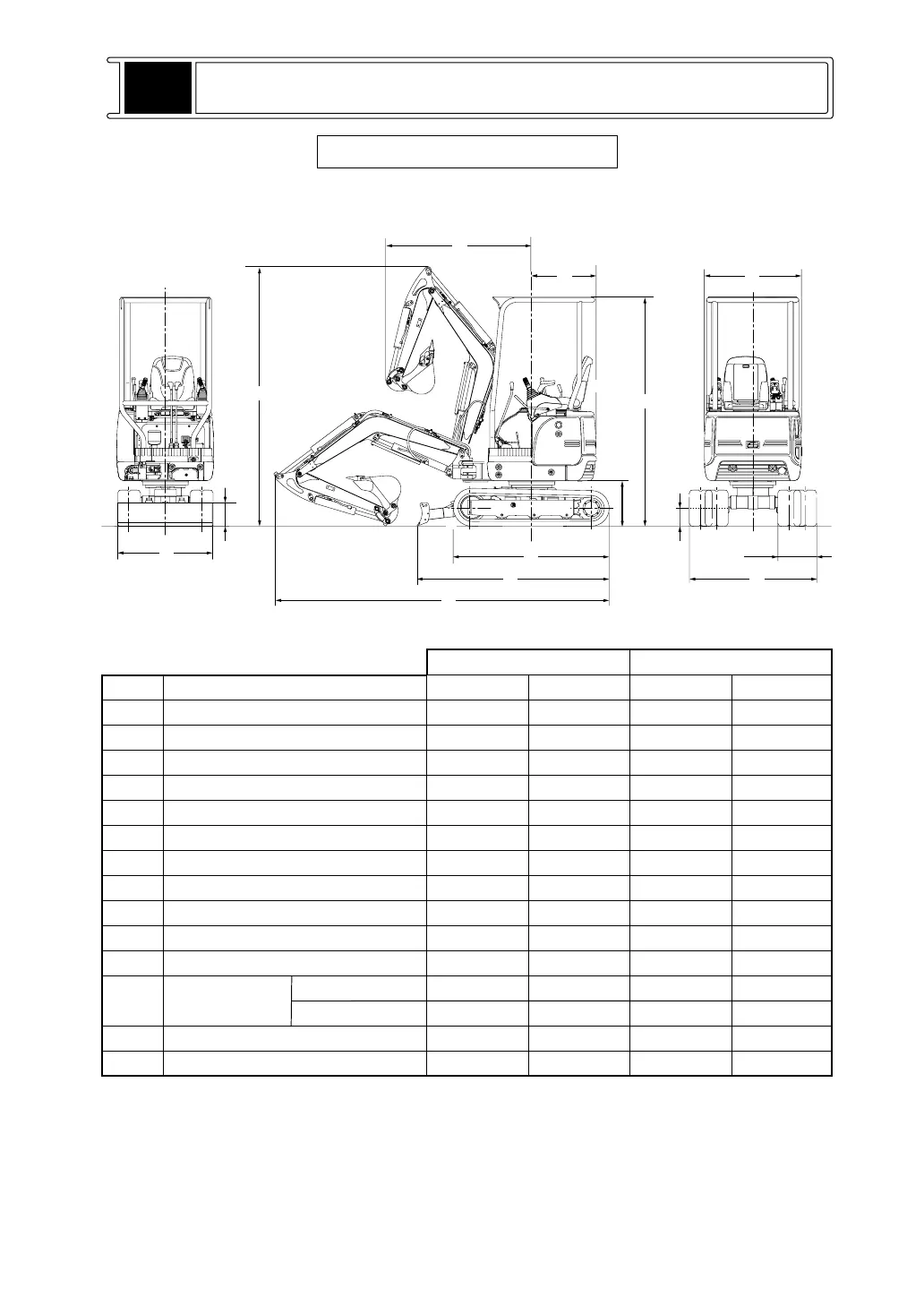

7-2 OVERALL DIMENSIONS
1. OVERALL DIMENSIONS
Unit: mm
STD ADD Weight
Codes Description Rubber shoe Steel shoe Rubber shoe Steel shoe
A Crawler shoe width 230 230 230 230
B Overall length of crawler 1570 1550 1570 1550
C Overall width of crawler 980~1300 980~1300 980~1300 980~1300
D Canopy 980 980 980 980
E Canopy 2330 2330 2330 2330
F Rear end swing radius 680 680 720 720
G Rear end ground clearance 460 460 460 460
H Mini. ground clearance 175 175 175 175
I Overall length of undercarriage 1950 1950 1950 1950
J Blade height 235 235 235 235
K Blade width 980~1300 980~1300 980~1300 980~1300
L
Overall length
Blade in front 3380 3380 3380 3380
Blade in rear 3740 3740 3740 3740
M Front end mini. radius at center 1490 1490 1490 1490
N Arm head clearance 2630 2630 2630 2630
J
A
H
G
M
F
E
C
B
I
L
N
J
K
D
