Kato Imer 17VXE - Crawler Extention; Retraction

2 – 26
OPERATION
2-11

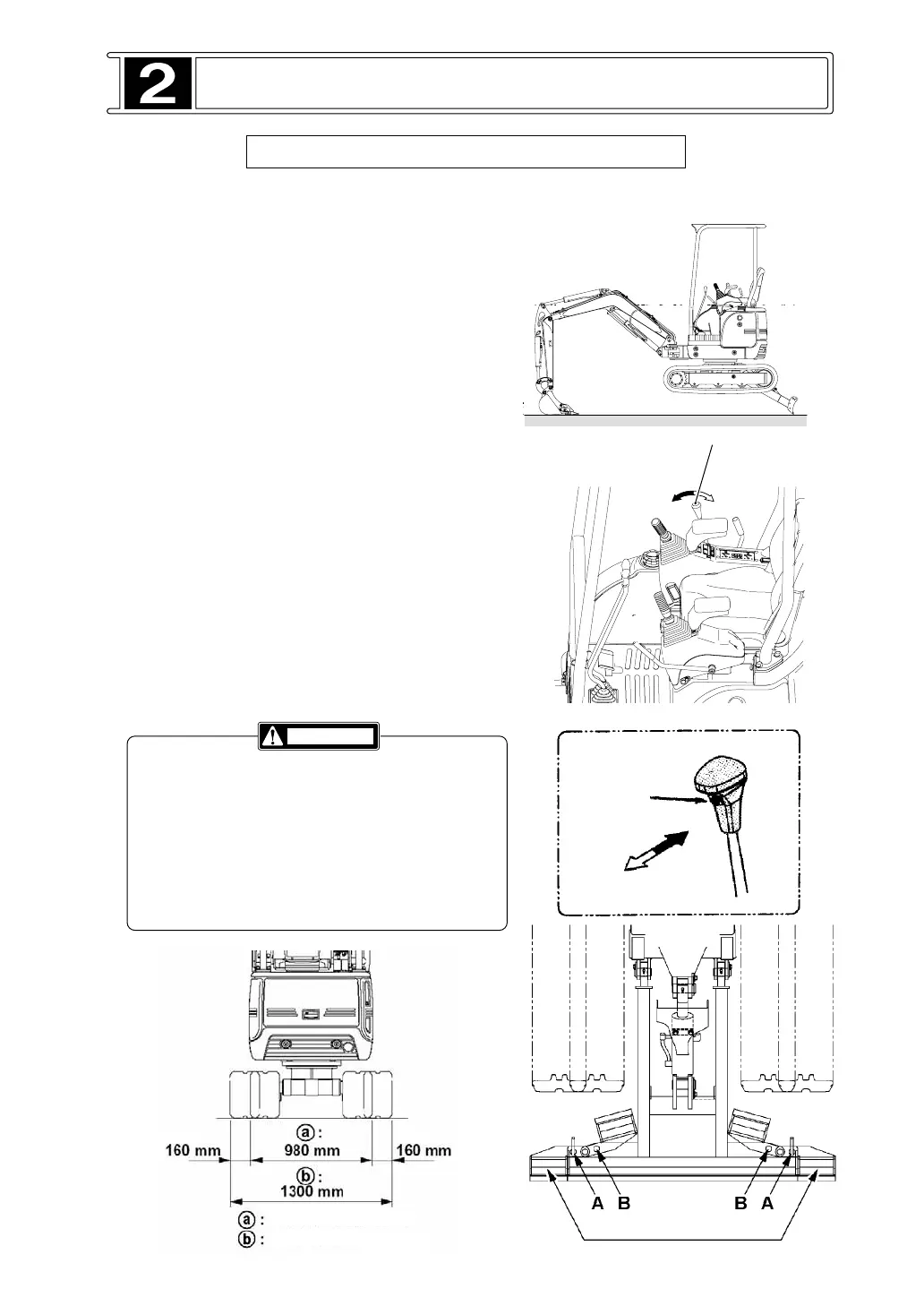

CRAWLER EXTENSION/RETRACTION
This machine is equipped with the spanner
mechanism (crawler extension / retraction
mechanism). T
ake the following procedure.
1. Jack up the main unit.
Set the blade to the rear and jack up the main unit
with the working device and blade cylinder till the
crawler is off from the ground to extend or retract
the crawler easily
.
2. Lever selection
Set the engine speed at medium or higher. Push
and hold the button “spanner”. Move the
blade-spanner lever forward or backward.
• Crawler extension : Push the lever forward.
• Crawler retraction : Pull the lever backward.
Extend or retract the crawler on a level ground
without an obstacle.
Extension or retraction is possible without
jacking up the main unit.
If there is an obstacle on the ground beside the
crawler, the resistance is larger and extension
or retraction is sometimes impossible.
Extend or retract the crawler on a level ground
without an obstacle.
Extension or retraction is possible without
jacking up the main unit.
If there is an obstacle on the ground beside the
crawler, the resistance is larger and extension
or retraction is sometimes impossible.
Extend or retract the crawler on a level ground
without an obstacle.
Extension or retraction is possible without
jacking up the main unit.
If there is an obstacle on the ground beside the
crawler
, the resistance is larger and extension
or retraction is sometimes impossible.
Extend or retract the crawler on a level ground
without an obstacle.
Extension or retraction is possible without
jacking up the main unit.
If there is an obstacle on the ground beside the
crawler, the resistance is larger and extension
or retraction is sometimes impossible.
Extend or retract the crawler on a level ground
without an obstacle.
Extension or retraction is possible without
jacking up the main unit.
If there is an obstacle on the ground beside the
crawler, the resistance is larger and extension
or retraction is sometimes impossible.
Extend or retract the crawler on a level ground
without an obstacle.
Extension or retraction is possible without
jacking up the main unit.
If there is an obstacle on the ground beside the
crawler, the resistance is larger and extension
or retraction is sometimes impossible.
Extend or retract the crawler on a level ground
without an obstacle.
Extension or retraction is possible without
jacking up the main unit.
If there is an obstacle on the ground beside the
crawler, the resistance is larger and extension
or retraction is sometimes impossible.
Extend or retract the crawler on a level ground
without an obstacle.
Extension or retraction is possible without
jacking up the main unit.
If there is an obstacle on the ground beside the
crawler, the resistance is larger and extension
or retraction is sometimes impossible.
Extend or retract the crawler on a level ground
without an obstacle.
Extension or retraction is possible without
jacking up the main unit.
If there is an obstacle on the ground beside the
crawler, the resistance is larger and extension
or retraction is sometimes impossible.
CAUTION
Dimension of crawler retraction
Dimension of crawler extension
Dimension of crawler retraction
Dimension of crawler extension
Spanner
selection
button
Crawler
Blade
Blade extensions
Blade-spanner lever
Crawler
extension
Crawler
retraction
During expansi
on swing and lock blade
extensions on both sides of standard blade. This
is possible only if pivot is moved from position (A)
to position (B). During crawler retraction put blade
extensions in original position and lock them.
3.
