MAINTENANCE
3-8 1000 HOURS MAINTENANCE AND CHECKS
Change the Travel drive Oil
Recomended oil Refill capacities
Engine oil 0.33 Liter
API CD, SAE30
1000HOURS
Motor de
Travel reduction
Oil fill plug
PT3/8
Oil level Plug
PT1/8
Drain plu
(PT3/8)
1.

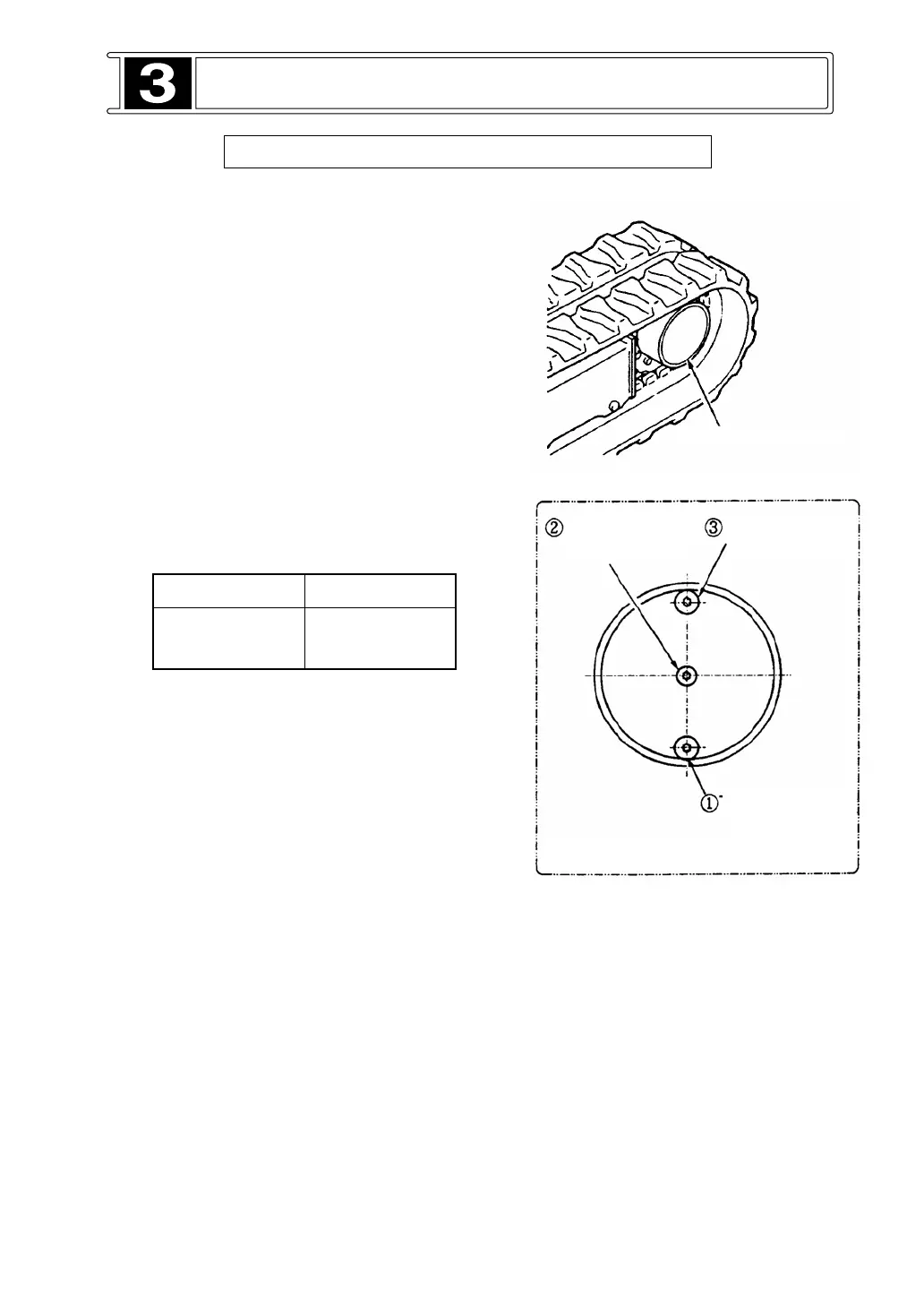

Position one travel drive
with drain plug (1) at
the bottom.
2. Remove drain plug (1) and oil level plug (2) and
oil fill plug (3). Allow the oil to drain into a
container.
NOTE: Dispose drained material according to local
regulation.
3. Clean the plugs.
4.
lnstall drain plug (1).
5. Fill the travel drive to bottom of level plug
opening.
6. Install oil level plug (2) and oil fill plug (3).
7. Perform procedure on the other travel reduction.
8. Start the engine and allow the travel drive to turn
through several cycles.
9. Stop the engine, check the oil level.
10. Check the drained oil for metal chips or
particles. lf there are any, consult your lHlMER
dealer.
