MAINTENANCE
 Check the Travel Drives Oil Level
When the quantity of oil is found to have
increased abnormally, it is necessary to check
the oil seal of the travel motor. If the seal is
leaking, contact a KATO IMER dealer.
CAUTION
500HOURS
Oil fill
plug
Oil level
plug

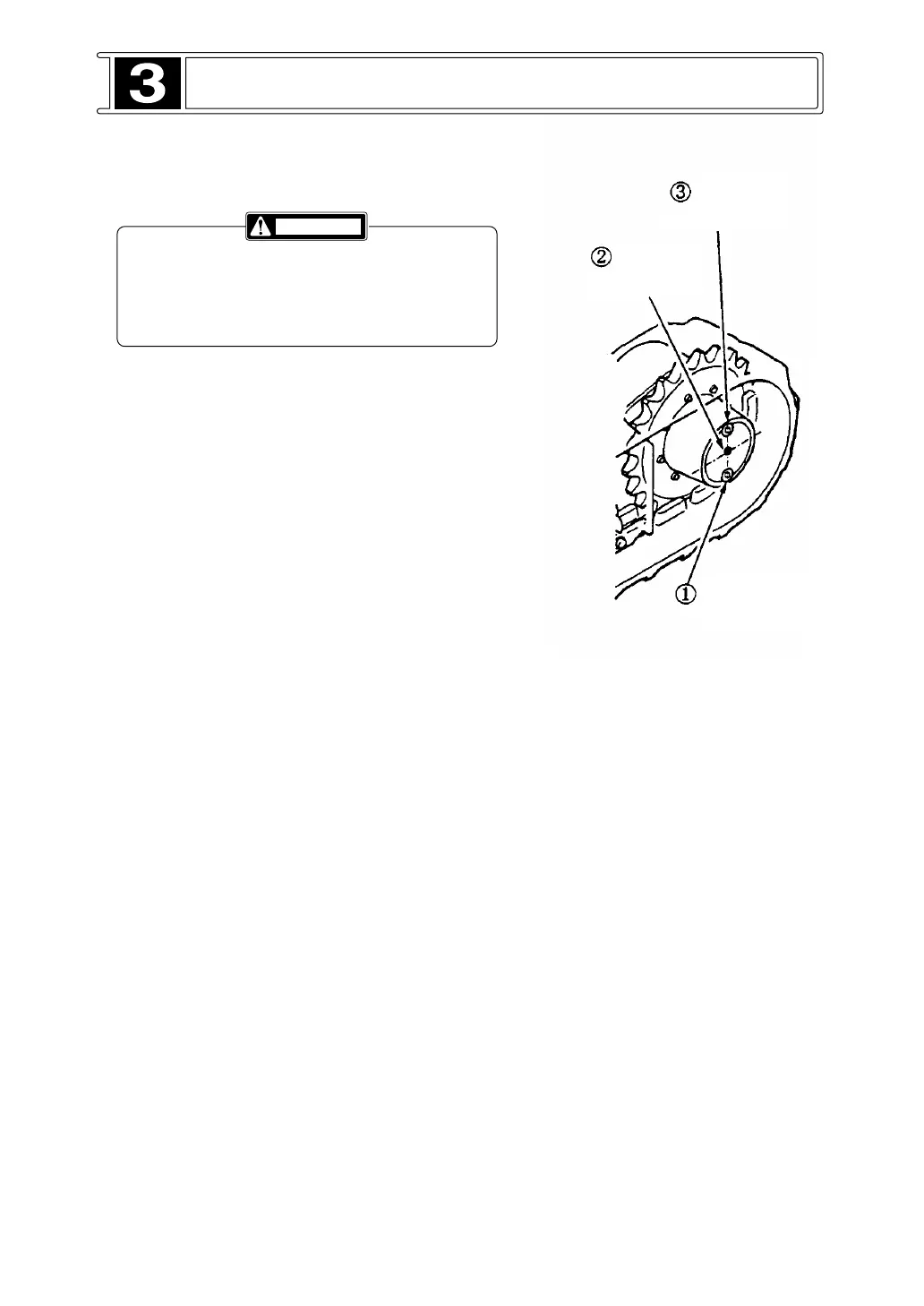

1.
Position one travel drive with oil drai
n plug (1
) at
the bottom.
2.
Remove the oil level plug (2) and fill pl
ug (3). Oil
sho
uld be to the bottom of the level plug openi
ng.
3.
Add oil through the openi
ng of oil level/fill plug if
necessary.
4.
Clean the plugs. lnstall the plug
s.
5.
Perform procedure on the other travel dr
ive.
Oil drain
plug
