2 – 22
OPERATION

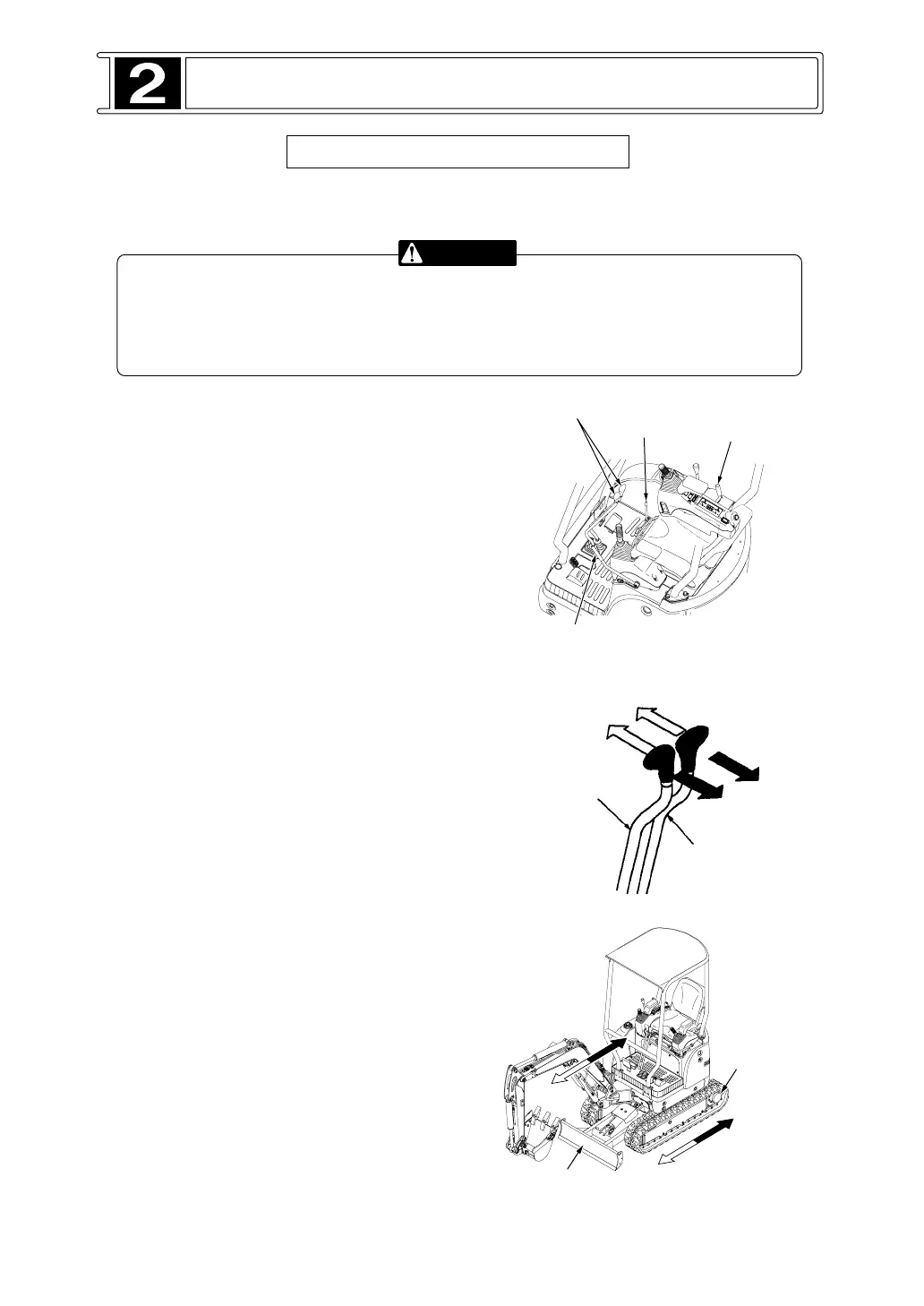

2-10 TRAVELLING THE MACHINE
STRAIGHT TRAVEL
* Be sure no one is working on or near the machine to prevent injury.
Keep the machine under control at all times to prevent injury
.
* Before control levers, confirm which direction the track frame faces.
* Always travel with sprockets under the rear of the machine.
1. Move engine throttle lever
c
to the operating range.
2. Move the control shut-off lever
d
to the unlocked
position.
3. Raise the boom and the blade enough to provide
sufficient ground clearance.
4. Control right and left travel levers
e
as follows.
Forward Direction Travel
Move the both travel levers
e
forward to move the
machine forward.
The machine will always travel toward the BLADE.
Stop
Slowly move both the travel levers
e
to the stop
position to stop the machine and apply the brakes.
Reverse Direction T
ravel
Move the both travel levers
e
rear to move the
machine reverse.
The machine will always travel toward the
SPROCKETS.
SPROCKET
Reverse
Travel
Forward Travel
BLADE
WARNING
Engine
Throttle Leve
➀
Travel Lever
➂
Control Shut-off
Lever
➁
➁
Travel lever
(R.H.)
Travel lever
(L.H.)
Forward
Travel
Reverse
T
ravel
To Next Page
