OPERATION
2 – 8 – 2 BACKHOE OPERATION (lever pattern “F”)

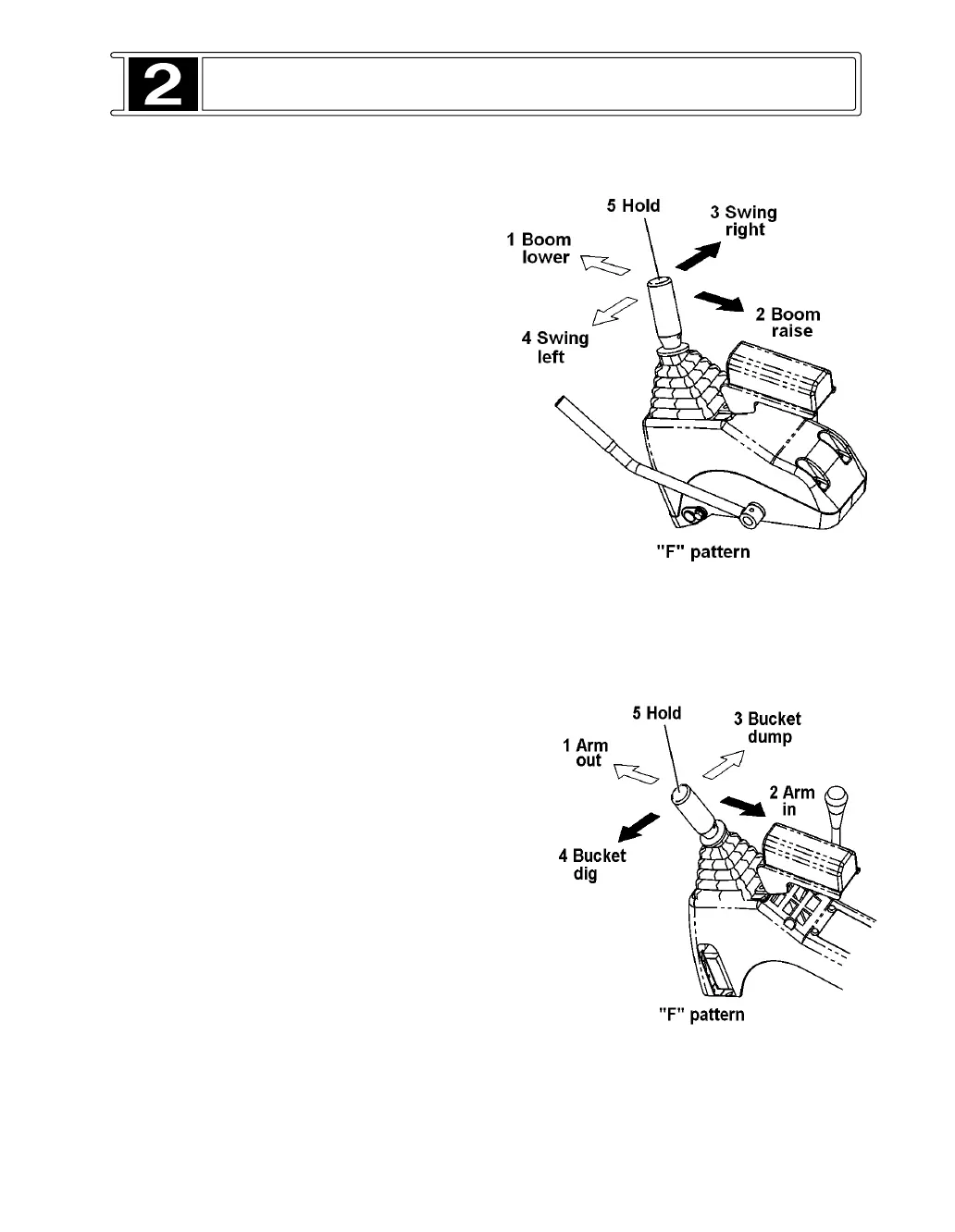

(17) LEFT OPERATING LEVER (LEVER PATTERN “F”)
Swing and boom controls.
1 Boom Lower:
Move the lever forward.
2 Boom Raise:
Move the lever rear.
3 Swing Right:
Move the lever right.
4 Swing Left:
Move the lever left.
5 Hold :
When the lever released from any position,
the lever will return to hold in center
position.
(18) RIGHT OPERATING LEVER (LEVER PATTERN “F”)
Bucket and arm controls
1 Arm Out:
Move the lever forward.
2 Arm In:
Move the lever back.
3 Bucket Dump:
Move the lever right.
4 Bucket Dig:
Move the lever left.
5 Hold:
When the lever released from any position,
the lever will return to hold in center
position.
The bucket and boom functions can be operated
together. For example, to move out the boom and
dump the bucket at the same time, push the lever
forwards to the right.
2 – 17
The swing and boom functions can be operated
together. For example, to move lower boom and
swing right at the same time, push the lever
forwards to the right.
