MAINTENANCE
Change the Secondary Element
* Always replace the secondary filter element.
NEVER attempt to reuse it by cleaning.
* The secondary filter element should be replaced
at the time the primary element is serviced for
five time.
Replacement: When replaced the primary
element with the secondary element.
1. Remove the service cover
c
and the primary
element
d
from the air cleaner housing
e
.
2. Remove the secondary element
f
from the air
cleaner housing
e
. Cover the engine intake
opening.
3. Clean the inside of the air cleaner housing
e
and
service cover
c
. Remove the covering from the
intake opening.
NOTE: Clean the seal tube in the cleaner housing.
Dust on the seal tube causes dust leak.
4. Install the new secondary element
f
.
5. Install the primary element
d
secure the service
cover
c
.
6. Reset the dust indicator
h
by pushing in the reset
button.
CAUTION
250HOURS
cc
cc
c

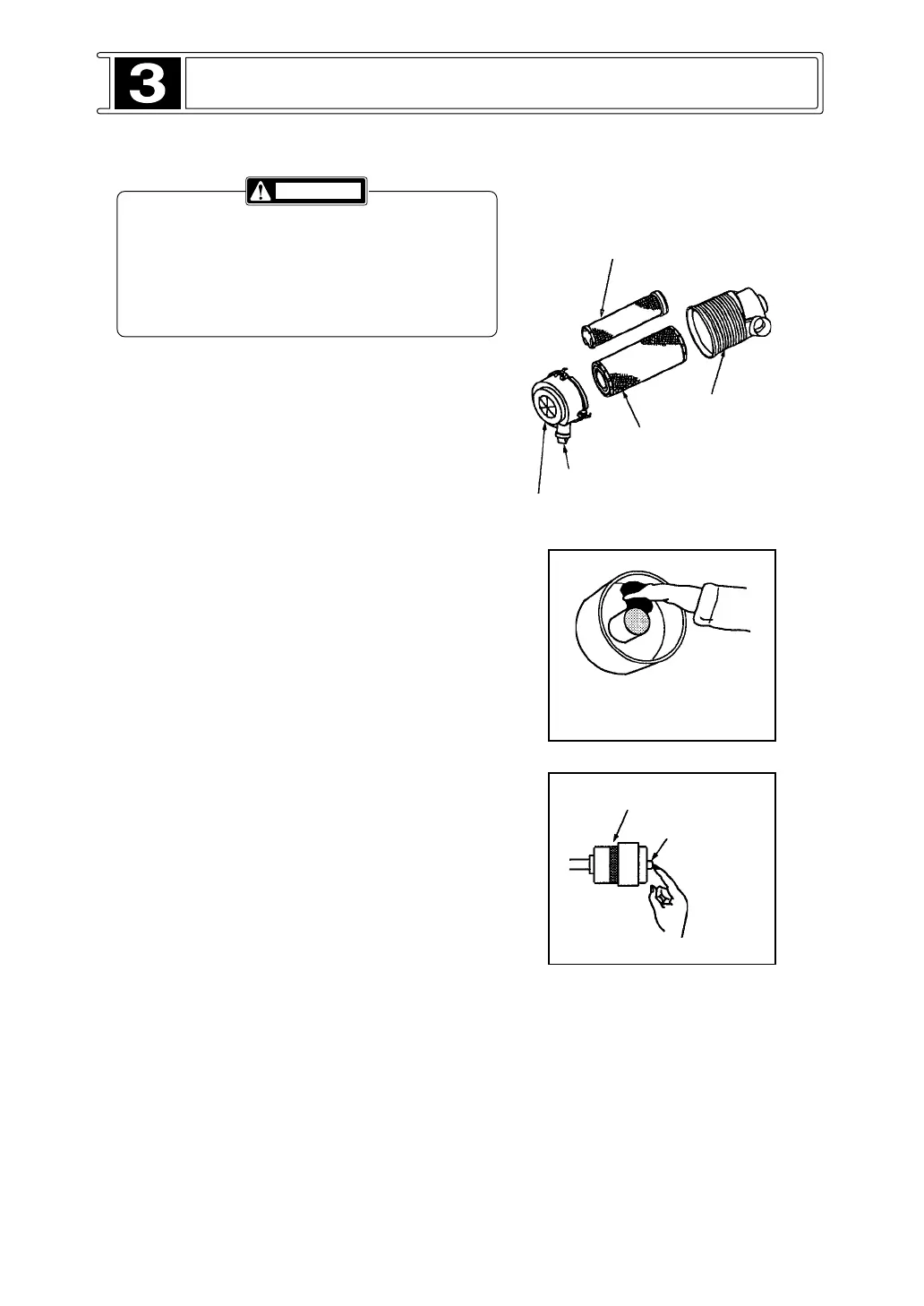

Service cover
ee
ee
e
Cleaner housing
ff
ff
f
Secondary element
gg
gg
g
Valve
dd
dd
d
Primary element
Install
Primary Element
Reset button
hh
hh
h
Indicator
