3.2. E-port Conguration for eBus TCP

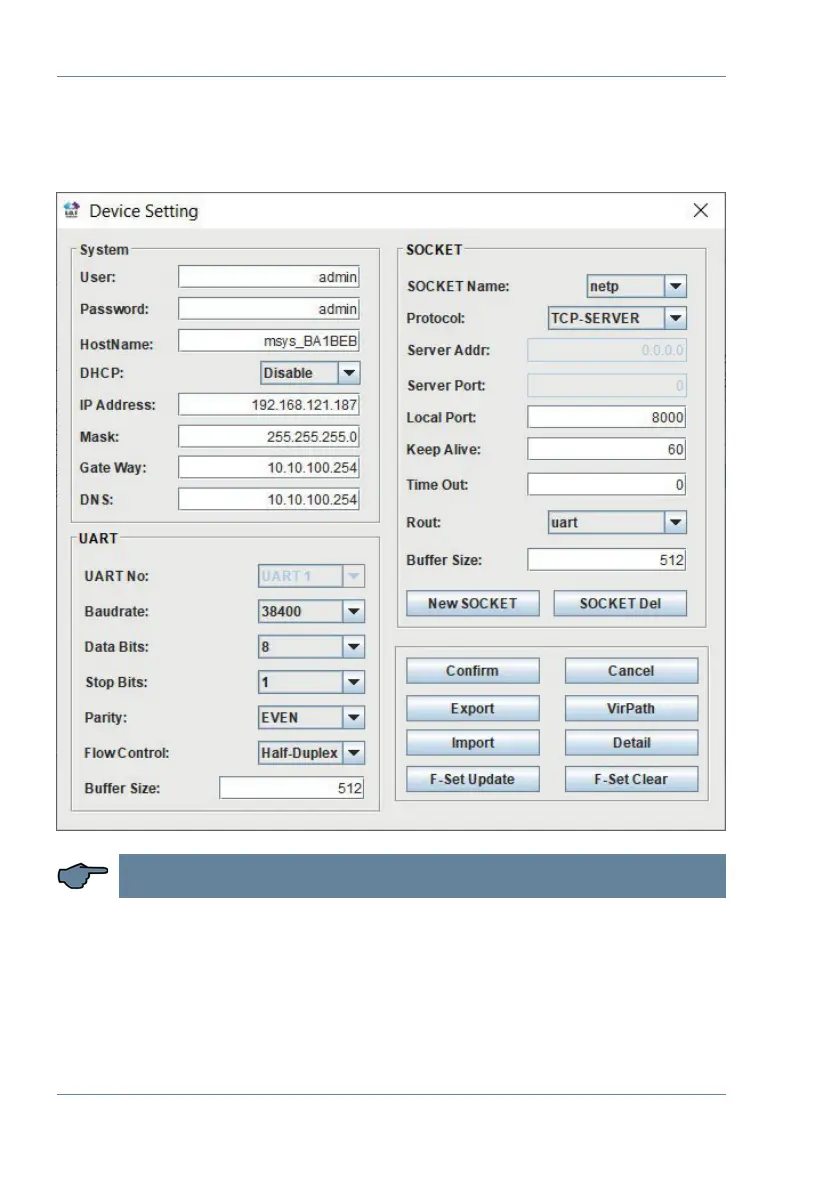

For eBus TCP, the parameters must be set as shown in the gure below. The network
parameters (IP address, mask, gateway, DNS) must be adapted to local circumstances.
NOTE
- Flow Control: Half Duplex“ controls the changeover of RS-485 components.
- The local port must be set to 8000
- Click „Conrm“ to apply the parameters.
