100 50
1 1
( 100 mm)
Pipe
( 98 mm)
Adapter
Indoors
Outdoors
Slant taper
出風 口接 頭
( 98 mm)
( 100 mm)管道
屋內
傾斜 角度
屋外
1
2

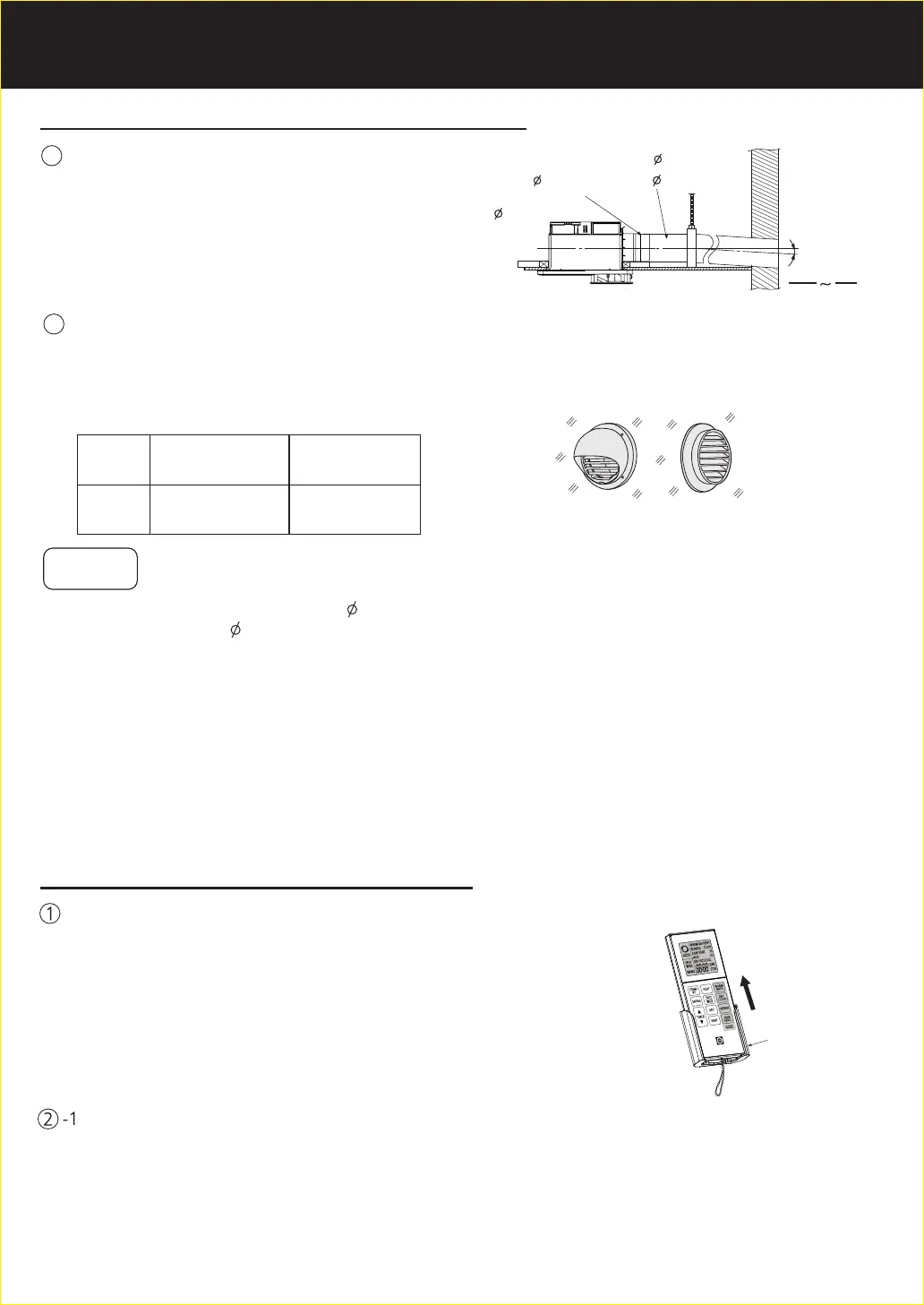

3.Connecting duct pipe(Not supply)
Vent cap
Pipe hood
Install the pipe cap or pipe cover on the
external wall. ( We recommend you purchase
products of the following models provided
by KDK.)
Model
Vent cap
Pipe hood
Name
Take out the remote control from the holder.
遙控器的安裝
把遙控 器從遙控器底座抽出。
4.Installing the remote control
Check the main body can receive the signal from the intended remote control installation
location. If remote control can not receive the signal from this installation location, please
choose another installation location, or operate the remote control toward product after
taking out it from the holder. The installation location cannot be toward the direct spraying
area of the shower.
遙控器 安裝前，請在預定安裝的位置上 檢測機體接 收信號的效果，若該位置無法使 機體正常接 收，請
另選擇 合適的位置或使用時把遙控器從 底座中取出 對著機體進行操作。且安裝位置 應避免在花 灑直淋處。
管道的連接(另購)
將管罩 或管蓋安裝到 外。屋
(建議購 買本公司如下所示型 號的產品)
名稱
管罩
型號
管蓋
管罩 管蓋
提示事 項
Notice
牆壁通 風孔最小直徑： 110 mm。
底座
Holder
Pull up
遙控器
向上拔 出
Remote
control
安裝方法
HOW TO INSTALL
16
The minimum diameter of the hole: 110 mm.
Install the duct pipe onto the adapter, and
then bind them tightly with adhesive tape.
Suspend the duct pipe from the ceiling board
to prevent external force exerted on the unit
body.
將管道 裝入出風口接頭上， 然後用膠帶 紮緊。
將管道 從天花板上懸掛下來 ， 以防止外 力施
加於機 體。
The duct pipe connected to outside of the room must be slanted to prevent rain or condensed water
from flowing backwards.
通往屋 外的管道必須保持傾斜， 防止雨 水或結露水 倒流。
1.
2.
3.
4.
不安裝 管蓋或管罩可能造成 鳥、蟲、鼠 等的進入。
管道長 度要盡可能適中，過 長會影響產 品性能，管 道最長不要超過30 m。
This duct pipe length should be as moderate as possible. It will affect product performance
if it is too long. The maximum length of the duct pipe should not exceed 30 m.
Failure to install a pipe hood or vent cap may result in the entry of birds, insects, rats, etc.
MCX100K
VCX100K
